Запчасти Case IH MAXXUM 110 (1.19.1/01[01]) - AIR CLEANER WITH PRE-CLEANER "SPIN TUBE" (VAR.330189-331189-332189-333189) (02) - ENGINE EQUIPMENT

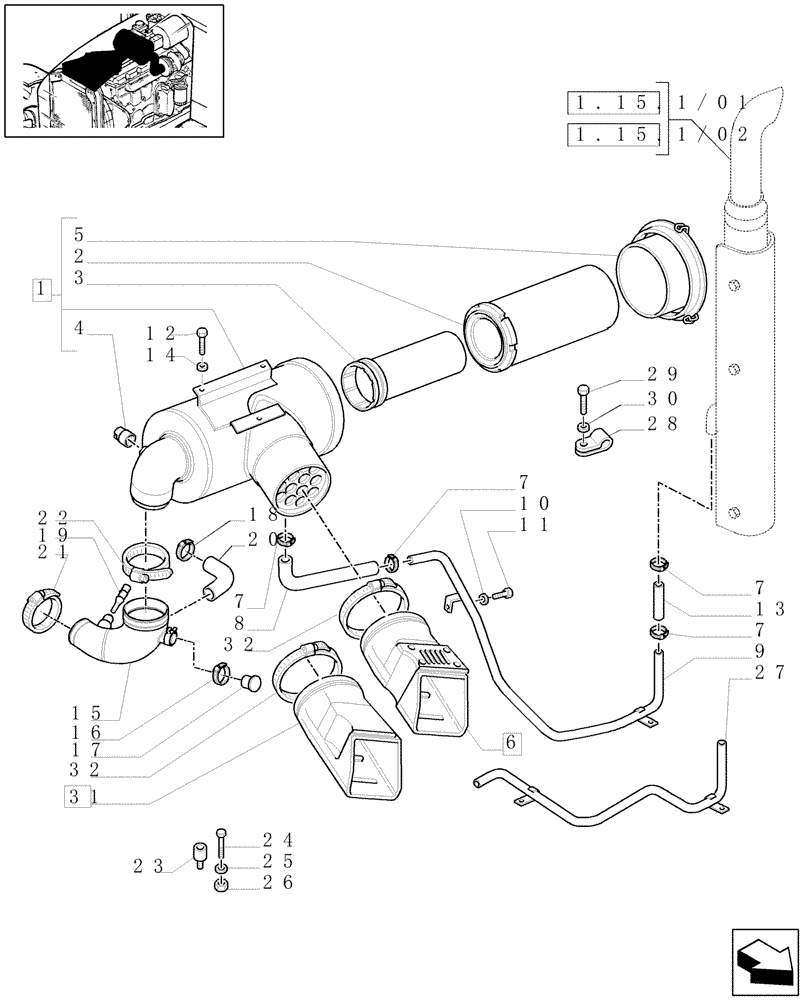

Схема запчастей Case IH MAXXUM 110 - (1.19.1/01[01]) - AIR CLEANER WITH PRE-CLEANER "SPIN TUBE" (VAR.330189-331189-332189-333189) (02) - ENGINE EQUIPMENT
25
29
32
24
30
11
27
18
19
4
26
1.15.1/01
3
1.15.1/02
21
16
32
9
7
7
28
14
7
20
13
5
22
23
1
2
12
15
10
17
8
31
7
6

Артикул

Название

Примечание

Количество

1

82034611

AIR CLEANER

1шт.

2

82034614

AIR FILTER

1шт.

3

82034608

AIR FILTER

1шт.

4

82029621

INDICATOR

1шт.

5

87301832

COVER

1шт.

6

87518691

DUCT

Incl. 32

1шт.

Pro Version only

1шт.

7

82036709

HOSE CLAMP,25mm - 40mm, Worm Gear

4шт.

8

87396929

LARGE HOSE

HOSE,LARGE

1шт.

9

82039271

TUBE

1шт.

VAR.330189, Less Front Loader and for Hight Roof

1шт.

9

87596752

TUBE,32 mm OD x 610, 135 mm L

1шт.

VAR.332189, less Front Loader and for Low Roof

1шт.

10

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

1шт.

11

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

1шт.

12

11106221

SCREW,Hex, M10 x 25mm, Cl 8.8, Full Thd

3шт.

13

82036395

FLEXIBLE HOSE,33.00 mm ID x 140.00 mm

1шт.

14

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

3шт.

15

87389109

AIR DUCT

Incl. 16, 17, 19

1шт.

MAX100

1шт.

15

87389107

LARGE HOSE

HOSE,LARGE Incl. 16, 17, 19

1шт.

MAX110, MAX120, MAX130

1шт.

16

13387570

HOSE CLAMP

1шт.

17

82019459

PLUG,Polypropylene Air cleaner hose

1шт.

18

82039344

HOSE CLAMP,20mm - 32mm

22/23MM

2шт.

19

87393930

TUBE,23.5 mm OD x 118 mm L

1шт.

20

87398725

HOSE

1шт.

21

82036353

HOSE CLAMP,60 - 80mm X 14.5mm

60/80MM

1шт.

MAX100

1шт.

21

82036354

HOSE CLAMP,70mm - 90mm

70/90MM

1шт.

MAX110, MAX120, MAX130

1шт.

22

82036459

CLAMP,90mm - 110mm

104/138MM

1шт.

23

87344666

ISOLATOR

4шт.

24

10902424

SCREW,Hex, M6 x 20mm, Cl 8.8, Full Thd

4шт.

25

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

8шт.

26

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

4шт.

27

82039272

TUBE

1шт.

VAR.331189, With Front Loader and for High Roof

1шт.

27

87619618

TUBE

1шт.

VAR.333189, with Front Loader and for Low Roof

1шт.

28

10450990

CLAMP,26mm, Coat, 9mm Bolt Hole, P Type

1шт.

MAX110, MAX120, MAX130

1шт.

29

10902221

BOLT,Hex, M6 x 16mm, CL 8.8

1шт.

MAX110, MAX120, MAX130

1шт.

30

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

1шт.

MAX110, MAX120, MAX130

1шт.

31

87326318

AIR DUCT

Incl. 32

1шт.

X-Line/Limited Version only (Value Version only for VAR.332189)

1шт.

32

82021427

CLAMP

1шт.

Выбрано товаров: 49
