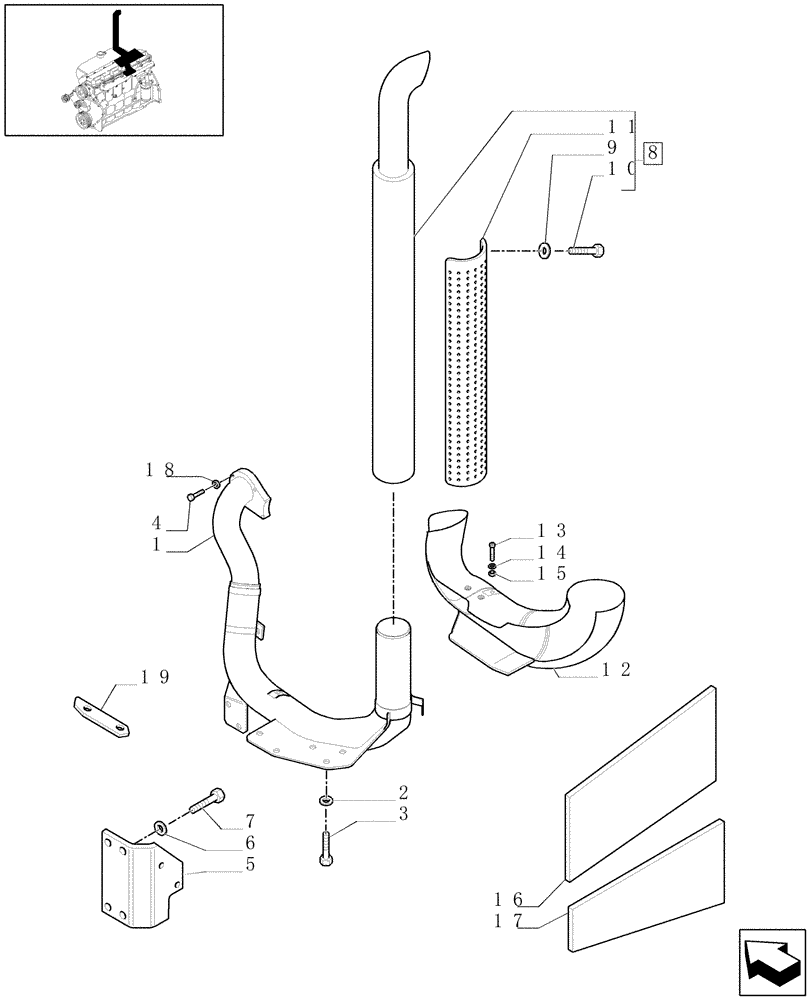

Запчасти Case IH MAXXUM 110 (1.15.1[01]) - SILENCER (MUFFLER) (02) - ENGINE EQUIPMENT

1

87305649

EXHAUST SYSTEM PIPE

Incl. 12, 13, 14, 15, Serial Range: -C6686

1шт.

1

84263760

EXHAUST SYSTEM PIPE

Incl. 12, 13, 14, 15, Start Serial: D6686

1шт.

2

14496721

WASHER,13mm ID x 24mm OD x 2.5mm Thk

7шт.

3

80300388

SCREW,M12 x 25mm

7шт.

3

11112221

SCREW,Hex, M12 x 25mm, Cl 8.8, Full Thd

7шт.

4

14306624

HEX SOC SCREW,M8 x 1.25 x 35mm, Cl 8.8, Full Thd

4шт.

4

16043021

SCREW,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

1шт.

5

82036784

SUPPORT

muffler bracket for Less Loader Ready

1шт.

6

12646001

WASHER,14.4mm ID x 24mm OD x 2mm Thk

4шт.

7

11115521

SCREW,Hex, M14 x 30mm, Cl 8.8

M14 x 2 x 30

4шт.

8

82027832

EXHAUST SYSTEM PIPE

ASSY, L/CAB

1шт.

8

87324752

MUFFLER

ASSY, W/CAB

1шт.

9

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

6шт.

10

14759521

SCREW,M6 x 14mm

M6 x 14

6шт.

11

82035359

SHIELD

Plain shield

1шт.

11

82035358

SHIELD

Perforated Shield

1шт.

12

87305791

SHIELD

1шт.

13

14759521

SCREW,M6 x 14mm

M6 x 14

7шт.

14

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

7шт.

15

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

7шт.

16

87601492

SHIELD

Upper, Start Serial: D5600

1шт.

17

87601493

SHIELD

Lower, Start Serial: D5600

1шт.

18

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

1шт.

19

84160347

PLATE

1шт.
