Запчасти Case IH MAXXUM 110 (1.14.7/01) - FUEL TANK WITH GUARD - GUARD (VAR.330142) (02) - ENGINE EQUIPMENT

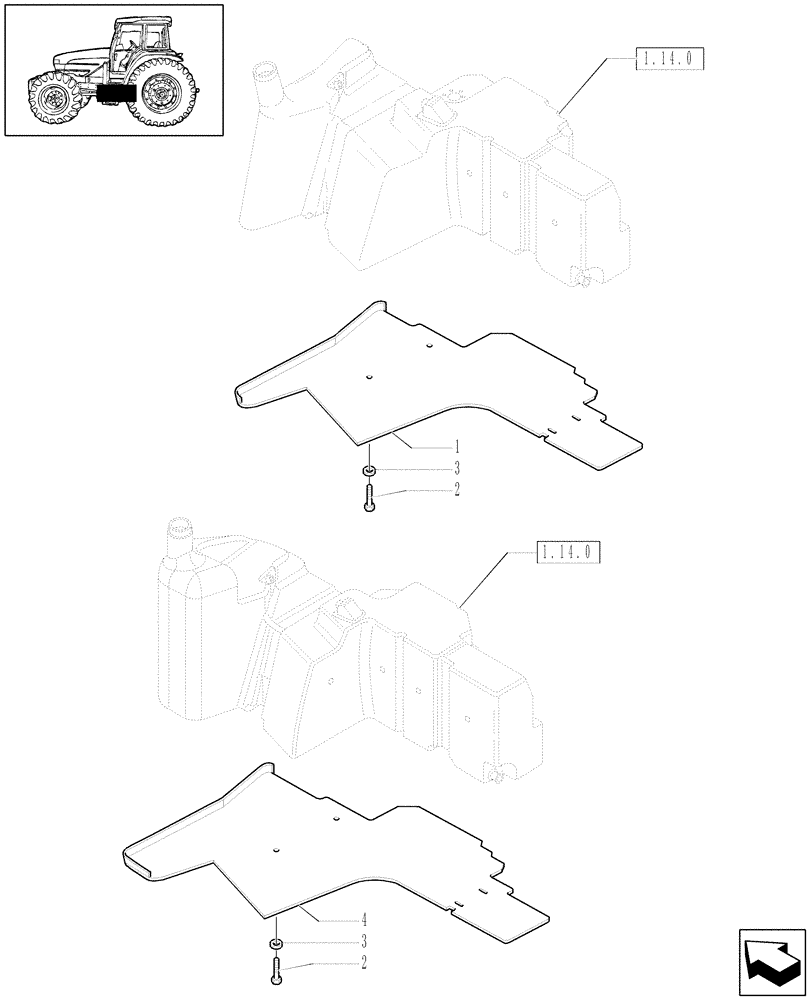

Схема запчастей Case IH MAXXUM 110 - (1.14.7/01) - FUEL TANK WITH GUARD - GUARD (VAR.330142) (02) - ENGINE EQUIPMENT
1.14.0
3
4
2
3
1
2
1.14.0

Артикул

Название

Примечание

Количество

1

82037141

SHIELD

1шт.

MAX100, MAX110, MAX120, MAX130

1шт.

Part is Included also in 47478572 Assembly PN

1шт.

2

11106221

SCREW,Hex, M10 x 25mm, Cl 8.8, Full Thd

4шт.

Part is Included also in 47478572 Assembly PN

1шт.

3

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

4шт.

Part is Included also in 47478572 Assembly PN

1шт.

4

82037145

SHIELD

1шт.

MAX115, MAX125, MAX140

1шт.

Выбрано товаров: 9
