Запчасти Case IH MAXXUM 110 (1.14.6[02]) - FUEL LINES FOR 4 CYLINDER ENGINE (02) - ENGINE EQUIPMENT

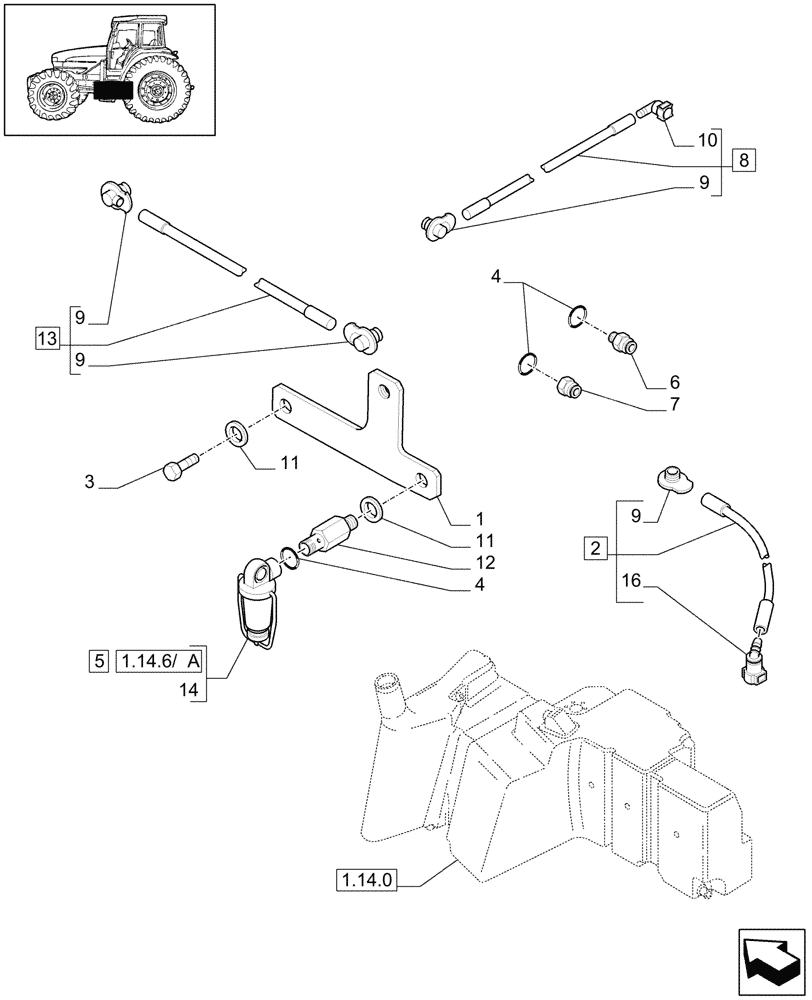

Схема запчастей Case IH MAXXUM 110 - (1.14.6[02]) - FUEL LINES FOR 4 CYLINDER ENGINE (02) - ENGINE EQUIPMENT
1.14.0
10
2
13
5
9
4
16
3
9
4
11
7
9
9
14
11
6
1
12
8
1.14.6/ a

Артикул

Название

Примечание

Количество

1

87591427

HOLDER

Fuel Filter

1шт.

2

82028475

FUEL TUBE,8mm OD X 960 mm

Fuel Return, Serial Range: -C6857

1шт.

2

84356045

FUEL TUBE,11mm OD X 750mm

Fuel Return, Start Serial: D6857

1шт.

3

11112121

SCREW,Hex, M12 x 20mm, Cl 8.8, Full Thd

2шт.

4

87590622

SEALING WASHER,14.7mm ID x 22mm OD x 1.5mm Thk

3шт.

5

84328562

FILTER ASSY,40mm OD x 109mm L, M14 x 1.5, 350 Microns

Biodiesel Compatible, Start Serial: D6809

1шт.

6

4893833

HYD CONNECTOR

M14 x 1.5

1шт.

7

87585673

HYD CONNECTOR

M14 x 1.5

1шт.

8

87370924

TUBE,8 mm DIA x 900, 100 mm L

Fuel Feed, Serial Range: -C5792

1шт.

8

87696294

FUEL HOSE,6mm ID x 920mm L

Fuel Feed, Start Serial: D5792

1шт.

9

82028482

FITTING

4шт.

10

82028479

FITTING

Red

1шт.

11

14496701

WASHER,13.00mm ID x 24.00mm OD x 2.50mm, CST, ZND

3шт.

12

87585662

HYD CONNECTOR,M12 x 1.75 x M14 x 1.5

M12 x 1.75 / M14 x 1.5

1шт.

13

87591975

TUBE,8 mm OD x 550 mm L

Fuel Feed

1шт.

14

87592298

FILTER ASSY

Biodiesel Compatible, Serial Range: -C6809

1шт.

16

82028480

COUPLING, QUICK, FEM

Green

1шт.

Выбрано товаров: 17
