(1.93.3/ C[03]) - "GRAMMER" SEAT WITH BELTS AND SWITCH - BREAKDOWN - L/CAB - C5518 (VAR.330709)

Запчасти Case IH MAXXUM 110 (1.93.3/ C[03]) - "GRAMMER" SEAT WITH BELTS AND SWITCH - BREAKDOWN - L/CAB - C5518 (VAR.330709) (10) - OPERATORS PLATFORM/CAB

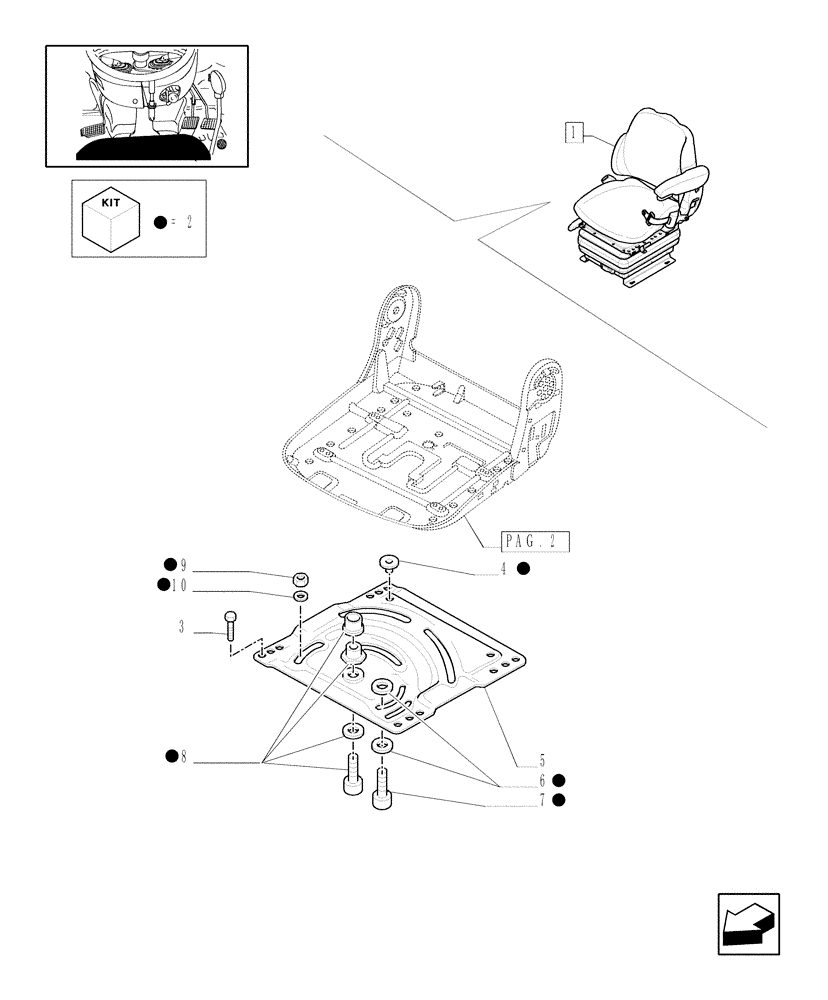

Схема запчастей Case IH MAXXUM 110 - (1.93.3/ C[03]) - "GRAMMER" SEAT WITH BELTS AND SWITCH - BREAKDOWN - L/CAB - C5518 (VAR.330709) (10) - OPERATORS PLATFORM/CAB
10
p
1
a
4
7
2
5
2
2
.
g
9
6
2
2
8
2
3
2
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

82023114

DRIVER SEAT

ASSY

1шт.

2

82034930

SET OF PARTS

Add-on Parts for Swivel

1шт.

3

82034882

SCREW,M8 x 16mm

M8 x 16

4шт.

4

82034862

DISC

2шт.

5

82034929

PLATE

Incl. 2

1шт.

6

82034866

WASHER

8шт.

7

82034904

BOLT

4шт.

8

82034998

BUSHING

1шт.

9

82034880

NUT,M8

M8

4шт.

10

82034881

WASHER,8.4mm ID

4шт.

Выбрано товаров: 10
