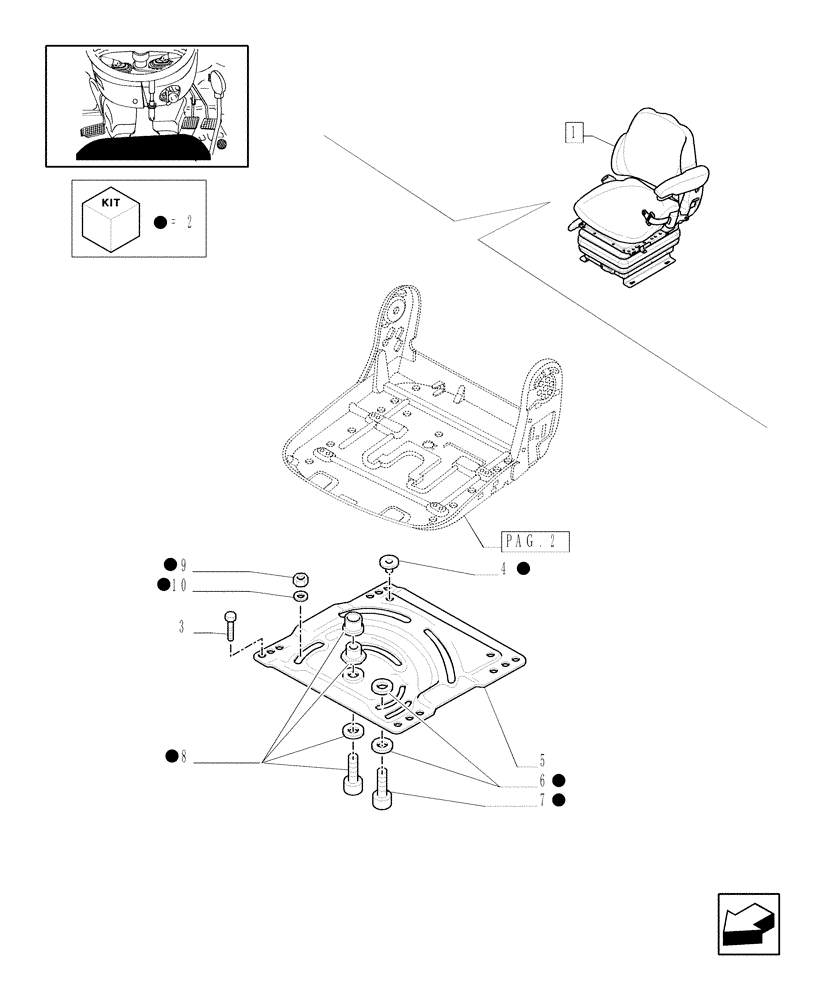

Запчасти Case IH MAXXUM 110 (1.93.3/ B[03]) - "GRAMMER" SEAT WITH BELTS AND SWITCH - BREAKDOWN - W/CAB - C5518 (10) - OPERATORS PLATFORM/CAB

1

87309477

DRIVER SEAT

ASSY

1шт.

2

82034930

SET OF PARTS

Add-on Parts for Swivel

1шт.

3

82034882

SCREW,M8 x 16mm

M8 x 16

4шт.

4

82034862

DISC

2шт.

5

82034929

PLATE

Incl. 2

1шт.

6

82034886

RIVET

8шт.

7

82034904

BOLT

4шт.

8

82034998

BUSHING

1шт.

9

82034880

NUT,M8

M8

4шт.

10

82034881

WASHER,8.4mm ID

4шт.
