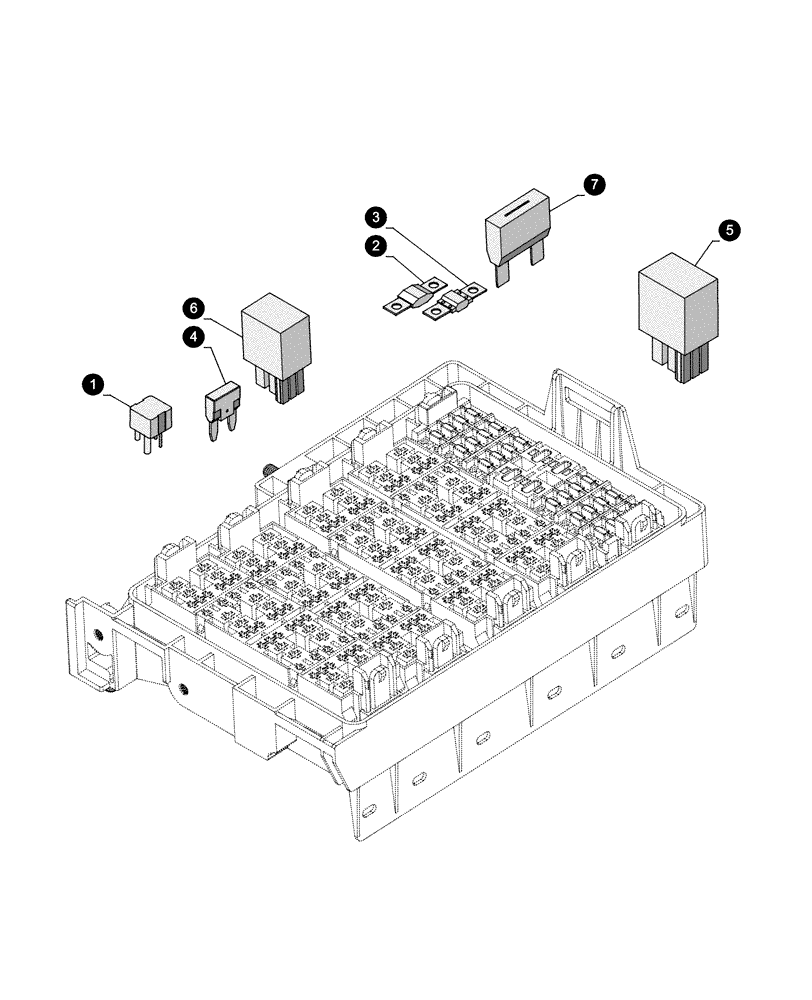

Запчасти Case IH MAXXUM 110 (0.05.4[03]) - MAINTENANCE PARTS - FUSES (00) - GENERAL

1

82012872

RELAY,70A

12V, 70A

1шт.

Valid with MAXXUM 100 - TRACTOR, MAXXUM 100 - TRACTOR - TIER 3 LIMITED, MAXXUM 100 - TRACTOR - TIER 3 VALUE, MAXXUM 100 - TRACTOR - TIER 3 X-LINE, MAXXUM 110 - TRACTOR, MAXXUM 110 - TRACTOR - TIER 3 LIMITED, MAXXUM 110 - TRACTOR - TIER 3 MULTICONTROLLER, MAXXUM 110 - TRACTOR - TIER 3 PRO, MAXXUM 110 - TRACTOR - TIER 3 VALUE, MAXXUM 110 - TRACTOR - TIER 3 X-LINE, MAXXUM 115 - TRACTOR, MAXXUM 115 - TRACTOR - TIER 3 LIMITED, MAXXUM 115 - TRACTOR - TIER 3 MULTICONTROLLER, MAXXUM 115 - TRACTOR - TIER 3 PRO, MAXX

1шт.

Valid with VAR. 330824, 330830

1шт.

D5768 Serial N. (06 June 2007 Basildon Prod. / Z8BE52243 St. Valentin Prod.)

1шт.

1

82030798

RELAY,12V, 70A

12V, 70A, Starter Motor

1шт.

Valid with MAXXUM 100 - TRACTOR, MAXXUM 100 - TRACTOR - TIER 3 LIMITED, MAXXUM 100 - TRACTOR - TIER 3 VALUE, MAXXUM 100 - TRACTOR - TIER 3 X-LINE, MAXXUM 110 - TRACTOR, MAXXUM 110 - TRACTOR - TIER 3 LIMITED, MAXXUM 110 - TRACTOR - TIER 3 MULTICONTROLLER, MAXXUM 110 - TRACTOR - TIER 3 PRO, MAXXUM 110 - TRACTOR - TIER 3 VALUE, MAXXUM 110 - TRACTOR - TIER 3 X-LINE, MAXXUM 115 - TRACTOR, MAXXUM 115 - TRACTOR - TIER 3 LIMITED, MAXXUM 115 - TRACTOR - TIER 3 MULTICONTROLLER, MAXXUM 115 - TRACTOR - TIER 3 PRO, MAXX

1шт.

Valid with STD

1шт.

D7158 Serial N. 818 March 2011 Basildon Prod./ZBBE55239 St. Valentin Prod.)

1шт.

1

87339422

RELAY,12V, 100A

12V, 35A, Mini

1шт.

Valid with MAXXUM 100 - TRACTOR, MAXXUM 100 - TRACTOR - TIER 3 LIMITED, MAXXUM 100 - TRACTOR - TIER 3 VALUE, MAXXUM 100 - TRACTOR - TIER 3 X-LINE, MAXXUM 110 - TRACTOR, MAXXUM 110 - TRACTOR - TIER 3 LIMITED, MAXXUM 110 - TRACTOR - TIER 3 MULTICONTROLLER, MAXXUM 110 - TRACTOR - TIER 3 PRO, MAXXUM 110 - TRACTOR - TIER 3 VALUE, MAXXUM 110 - TRACTOR - TIER 3 X-LINE, MAXXUM 115 - TRACTOR, MAXXUM 115 - TRACTOR - TIER 3 LIMITED, MAXXUM 115 - TRACTOR - TIER 3 MULTICONTROLLER, MAXXUM 115 - TRACTOR - TIER 3 PRO, MAXX

1шт.

1

87639044

RELAY

12V, 10/15A, 30 sec delay

1шт.

Valid with MAXXUM 100 - TRACTOR, MAXXUM 100 - TRACTOR - TIER 3 LIMITED, MAXXUM 100 - TRACTOR - TIER 3 VALUE, MAXXUM 100 - TRACTOR - TIER 3 X-LINE, MAXXUM 110 - TRACTOR, MAXXUM 110 - TRACTOR - TIER 3 LIMITED, MAXXUM 110 - TRACTOR - TIER 3 MULTICONTROLLER, MAXXUM 110 - TRACTOR - TIER 3 PRO, MAXXUM 110 - TRACTOR - TIER 3 VALUE, MAXXUM 110 - TRACTOR - TIER 3 X-LINE, MAXXUM 115 - TRACTOR, MAXXUM 115 - TRACTOR - TIER 3 LIMITED, MAXXUM 115 - TRACTOR - TIER 3 MULTICONTROLLER, MAXXUM 115 - TRACTOR - TIER 3 PRO, MAXX

1шт.

2

87422637

FUSE,125A, Midival

125A, Green

1шт.

Valid with MAXXUM 100 - TRACTOR, MAXXUM 100 - TRACTOR - TIER 3 LIMITED, MAXXUM 100 - TRACTOR - TIER 3 VALUE, MAXXUM 100 - TRACTOR - TIER 3 X-LINE, MAXXUM 110 - TRACTOR, MAXXUM 110 - TRACTOR - TIER 3 LIMITED, MAXXUM 110 - TRACTOR - TIER 3 MULTICONTROLLER, MAXXUM 110 - TRACTOR - TIER 3 PRO, MAXXUM 110 - TRACTOR - TIER 3 VALUE, MAXXUM 110 - TRACTOR - TIER 3 X-LINE, MAXXUM 115 - TRACTOR, MAXXUM 115 - TRACTOR - TIER 3 LIMITED, MAXXUM 115 - TRACTOR - TIER 3 MULTICONTROLLER, MAXXUM 115 - TRACTOR - TIER 3 PRO, MAXX

1шт.

2

82033971

FUSE,100A, Maxi, Violet

100A, Maxival

1шт.

Valid with MAXXUM 100 - TRACTOR, MAXXUM 100 - TRACTOR - TIER 3 LIMITED, MAXXUM 100 - TRACTOR - TIER 3 VALUE, MAXXUM 100 - TRACTOR - TIER 3 X-LINE, MAXXUM 110 - TRACTOR, MAXXUM 110 - TRACTOR - TIER 3 LIMITED, MAXXUM 110 - TRACTOR - TIER 3 MULTICONTROLLER, MAXXUM 110 - TRACTOR - TIER 3 PRO, MAXXUM 110 - TRACTOR - TIER 3 VALUE, MAXXUM 110 - TRACTOR - TIER 3 X-LINE, MAXXUM 115 - TRACTOR, MAXXUM 115 - TRACTOR - TIER 3 LIMITED, MAXXUM 115 - TRACTOR - TIER 3 MULTICONTROLLER, MAXXUM 115 - TRACTOR - TIER 3 PRO, MAXX

1шт.

2

87522597

FUSE,10A, Mini, Red

10A, Minival, Red

1шт.

Valid with MAXXUM 100 - TRACTOR, MAXXUM 100 - TRACTOR - TIER 3 LIMITED, MAXXUM 100 - TRACTOR - TIER 3 VALUE, MAXXUM 100 - TRACTOR - TIER 3 X-LINE, MAXXUM 110 - TRACTOR, MAXXUM 110 - TRACTOR - TIER 3 LIMITED, MAXXUM 110 - TRACTOR - TIER 3 MULTICONTROLLER, MAXXUM 110 - TRACTOR - TIER 3 PRO, MAXXUM 110 - TRACTOR - TIER 3 VALUE, MAXXUM 110 - TRACTOR - TIER 3 X-LINE, MAXXUM 115 - TRACTOR, MAXXUM 115 - TRACTOR - TIER 3 LIMITED, MAXXUM 115 - TRACTOR - TIER 3 MULTICONTROLLER, MAXXUM 115 - TRACTOR - TIER 3 PRO, MAXX

1шт.

2

87524877

FUSE,15A, Mini, Blue

15A, Minival, Blue

1шт.

Valid with MAXXUM 100 - TRACTOR, MAXXUM 100 - TRACTOR - TIER 3 LIMITED, MAXXUM 100 - TRACTOR - TIER 3 VALUE, MAXXUM 100 - TRACTOR - TIER 3 X-LINE, MAXXUM 110 - TRACTOR, MAXXUM 110 - TRACTOR - TIER 3 LIMITED, MAXXUM 110 - TRACTOR - TIER 3 MULTICONTROLLER, MAXXUM 110 - TRACTOR - TIER 3 PRO, MAXXUM 110 - TRACTOR - TIER 3 VALUE, MAXXUM 110 - TRACTOR - TIER 3 X-LINE, MAXXUM 115 - TRACTOR, MAXXUM 115 - TRACTOR - TIER 3 LIMITED, MAXXUM 115 - TRACTOR - TIER 3 MULTICONTROLLER, MAXXUM 115 - TRACTOR - TIER 3 PRO, MAXX

1шт.

3

82023624

FUSE,250A, Mega

250A, Pink

1шт.

Valid with MAXXUM 100 - TRACTOR, MAXXUM 100 - TRACTOR - TIER 3 LIMITED, MAXXUM 100 - TRACTOR - TIER 3 VALUE, MAXXUM 100 - TRACTOR - TIER 3 X-LINE, MAXXUM 110 - TRACTOR, MAXXUM 110 - TRACTOR - TIER 3 LIMITED, MAXXUM 110 - TRACTOR - TIER 3 MULTICONTROLLER, MAXXUM 110 - TRACTOR - TIER 3 PRO, MAXXUM 110 - TRACTOR - TIER 3 VALUE, MAXXUM 110 - TRACTOR - TIER 3 X-LINE, MAXXUM 115 - TRACTOR, MAXXUM 115 - TRACTOR - TIER 3 LIMITED, MAXXUM 115 - TRACTOR - TIER 3 MULTICONTROLLER, MAXXUM 115 - TRACTOR - TIER 3 PRO, MAXX

1шт.

4

10401190

FUSE,20A, Mini, Yellow

20A, Minival, Yellow

1шт.

Valid with MAXXUM 100 - TRACTOR, MAXXUM 100 - TRACTOR - TIER 3 LIMITED, MAXXUM 100 - TRACTOR - TIER 3 VALUE, MAXXUM 100 - TRACTOR - TIER 3 X-LINE, MAXXUM 110 - TRACTOR, MAXXUM 110 - TRACTOR - TIER 3 LIMITED, MAXXUM 110 - TRACTOR - TIER 3 MULTICONTROLLER, MAXXUM 110 - TRACTOR - TIER 3 PRO, MAXXUM 110 - TRACTOR - TIER 3 VALUE, MAXXUM 110 - TRACTOR - TIER 3 X-LINE, MAXXUM 115 - TRACTOR, MAXXUM 115 - TRACTOR - TIER 3 LIMITED, MAXXUM 115 - TRACTOR - TIER 3 MULTICONTROLLER, MAXXUM 115 - TRACTOR - TIER 3 PRO, MAXX

1шт.

4

10401290

FUSE,25 amp Mini

25A, Minival

1шт.

Valid with MAXXUM 100 - TRACTOR, MAXXUM 100 - TRACTOR - TIER 3 LIMITED, MAXXUM 100 - TRACTOR - TIER 3 VALUE, MAXXUM 100 - TRACTOR - TIER 3 X-LINE, MAXXUM 110 - TRACTOR, MAXXUM 110 - TRACTOR - TIER 3 LIMITED, MAXXUM 110 - TRACTOR - TIER 3 MULTICONTROLLER, MAXXUM 110 - TRACTOR - TIER 3 PRO, MAXXUM 110 - TRACTOR - TIER 3 VALUE, MAXXUM 110 - TRACTOR - TIER 3 X-LINE, MAXXUM 115 - TRACTOR, MAXXUM 115 - TRACTOR - TIER 3 LIMITED, MAXXUM 115 - TRACTOR - TIER 3 MULTICONTROLLER, MAXXUM 115 - TRACTOR - TIER 3 PRO, MAXX

1шт.

4

10402190

FUSE,30A, Mini

30A, Minival

1шт.

Valid with MAXXUM 100 - TRACTOR, MAXXUM 100 - TRACTOR - TIER 3 LIMITED, MAXXUM 100 - TRACTOR - TIER 3 VALUE, MAXXUM 100 - TRACTOR - TIER 3 X-LINE, MAXXUM 110 - TRACTOR, MAXXUM 110 - TRACTOR - TIER 3 LIMITED, MAXXUM 110 - TRACTOR - TIER 3 MULTICONTROLLER, MAXXUM 110 - TRACTOR - TIER 3 PRO, MAXXUM 110 - TRACTOR - TIER 3 VALUE, MAXXUM 110 - TRACTOR - TIER 3 X-LINE, MAXXUM 115 - TRACTOR, MAXXUM 115 - TRACTOR - TIER 3 LIMITED, MAXXUM 115 - TRACTOR - TIER 3 MULTICONTROLLER, MAXXUM 115 - TRACTOR - TIER 3 PRO, MAXX

1шт.

Valid with VAR.330824-330830

1шт.

D5768 Serial N. (06 June 2007 Basildon Prod. / Z8BE52243 St. Valentin Prod.)

1шт.

4

5173264

FUSE,30A, Maxi, Green

30A

1шт.

Valid with MAXXUM 100 - TRACTOR, MAXXUM 100 - TRACTOR - TIER 3 LIMITED, MAXXUM 100 - TRACTOR - TIER 3 VALUE, MAXXUM 100 - TRACTOR - TIER 3 X-LINE, MAXXUM 110 - TRACTOR, MAXXUM 110 - TRACTOR - TIER 3 LIMITED, MAXXUM 110 - TRACTOR - TIER 3 MULTICONTROLLER, MAXXUM 110 - TRACTOR - TIER 3 PRO, MAXXUM 110 - TRACTOR - TIER 3 VALUE, MAXXUM 110 - TRACTOR - TIER 3 X-LINE, MAXXUM 115 - TRACTOR, MAXXUM 115 - TRACTOR - TIER 3 LIMITED, MAXXUM 115 - TRACTOR - TIER 3 MULTICONTROLLER, MAXXUM 115 - TRACTOR - TIER 3 PRO, MAXX

1шт.

Valid with VAR.330824-330830

1шт.

D5768 Serial N. (06 June 2007 Basildon Prod. / Z8BE52243 St. Valentin Prod.)

1шт.

4

84183837

FUSE,80A, Maxil, Natural

80A, Maxival

1шт.

Valid with MAXXUM 100 - TRACTOR, MAXXUM 100 - TRACTOR - TIER 3 LIMITED, MAXXUM 100 - TRACTOR - TIER 3 VALUE, MAXXUM 100 - TRACTOR - TIER 3 X-LINE, MAXXUM 110 - TRACTOR, MAXXUM 110 - TRACTOR - TIER 3 LIMITED, MAXXUM 110 - TRACTOR - TIER 3 MULTICONTROLLER, MAXXUM 110 - TRACTOR - TIER 3 PRO, MAXXUM 110 - TRACTOR - TIER 3 VALUE, MAXXUM 110 - TRACTOR - TIER 3 X-LINE, MAXXUM 115 - TRACTOR, MAXXUM 115 - TRACTOR - TIER 3 LIMITED, MAXXUM 115 - TRACTOR - TIER 3 MULTICONTROLLER, MAXXUM 115 - TRACTOR - TIER 3 PRO, MAXX

1шт.

4

87589225

FUSE,70A

32V, 70A

1шт.

Valid with MAXXUM 100 - TRACTOR, MAXXUM 100 - TRACTOR - TIER 3 LIMITED, MAXXUM 100 - TRACTOR - TIER 3 VALUE, MAXXUM 100 - TRACTOR - TIER 3 X-LINE, MAXXUM 110 - TRACTOR, MAXXUM 110 - TRACTOR - TIER 3 LIMITED, MAXXUM 110 - TRACTOR - TIER 3 MULTICONTROLLER, MAXXUM 110 - TRACTOR - TIER 3 PRO, MAXXUM 110 - TRACTOR - TIER 3 VALUE, MAXXUM 110 - TRACTOR - TIER 3 X-LINE, MAXXUM 115 - TRACTOR, MAXXUM 115 - TRACTOR - TIER 3 LIMITED, MAXXUM 115 - TRACTOR - TIER 3 MULTICONTROLLER, MAXXUM 115 - TRACTOR - TIER 3 PRO, MAXX

1шт.

5

82003697

RELAY,12V, 30A

12V, 30A, Microrelay

1шт.

Valid with MAXXUM 100 - TRACTOR, MAXXUM 100 - TRACTOR - TIER 3 LIMITED, MAXXUM 100 - TRACTOR - TIER 3 VALUE, MAXXUM 100 - TRACTOR - TIER 3 X-LINE, MAXXUM 110 - TRACTOR, MAXXUM 110 - TRACTOR - TIER 3 LIMITED, MAXXUM 110 - TRACTOR - TIER 3 MULTICONTROLLER, MAXXUM 110 - TRACTOR - TIER 3 PRO, MAXXUM 110 - TRACTOR - TIER 3 VALUE, MAXXUM 110 - TRACTOR - TIER 3 X-LINE, MAXXUM 115 - TRACTOR, MAXXUM 115 - TRACTOR - TIER 3 LIMITED, MAXXUM 115 - TRACTOR - TIER 3 MULTICONTROLLER, MAXXUM 115 - TRACTOR - TIER 3 PRO, MAXX

1шт.

Valid with VAR. 330803, 331803, 332803, 330842

1шт.

5

84543666

RELAY,12V, 40A, Mini

12V, 30A

1шт.

Valid with MAXXUM 100 - TRACTOR, MAXXUM 100 - TRACTOR - TIER 3 LIMITED, MAXXUM 100 - TRACTOR - TIER 3 VALUE, MAXXUM 100 - TRACTOR - TIER 3 X-LINE, MAXXUM 110 - TRACTOR, MAXXUM 110 - TRACTOR - TIER 3 LIMITED, MAXXUM 110 - TRACTOR - TIER 3 MULTICONTROLLER, MAXXUM 110 - TRACTOR - TIER 3 PRO, MAXXUM 110 - TRACTOR - TIER 3 VALUE, MAXXUM 110 - TRACTOR - TIER 3 X-LINE, MAXXUM 115 - TRACTOR, MAXXUM 115 - TRACTOR - TIER 3 LIMITED, MAXXUM 115 - TRACTOR - TIER 3 MULTICONTROLLER, MAXXUM 115 - TRACTOR - TIER 3 PRO, MAXX

1шт.

Valid with Var. 331916, 333916

1шт.

D7158 Serial N. 818 March 2011 Basildon Prod./ZBBE55239 St. Valentin Prod.)

1шт.

5

87392809

RELAY,High Current, 12V, 190A

12V, 190A, High Current

1шт.

Valid with MAXXUM 100 - TRACTOR, MAXXUM 100 - TRACTOR - TIER 3 LIMITED, MAXXUM 100 - TRACTOR - TIER 3 VALUE, MAXXUM 100 - TRACTOR - TIER 3 X-LINE, MAXXUM 110 - TRACTOR, MAXXUM 110 - TRACTOR - TIER 3 LIMITED, MAXXUM 110 - TRACTOR - TIER 3 MULTICONTROLLER, MAXXUM 110 - TRACTOR - TIER 3 PRO, MAXXUM 110 - TRACTOR - TIER 3 VALUE, MAXXUM 110 - TRACTOR - TIER 3 X-LINE, MAXXUM 115 - TRACTOR, MAXXUM 115 - TRACTOR - TIER 3 LIMITED, MAXXUM 115 - TRACTOR - TIER 3 MULTICONTROLLER, MAXXUM 115 - TRACTOR - TIER 3 PRO, MAXX

1шт.

5

87691156

RELAY

12V, 10/15A, Battery Isolator, 4 min delay

1шт.

Valid with MAXXUM 100 - TRACTOR, MAXXUM 100 - TRACTOR - TIER 3 LIMITED, MAXXUM 100 - TRACTOR - TIER 3 VALUE, MAXXUM 100 - TRACTOR - TIER 3 X-LINE, MAXXUM 110 - TRACTOR, MAXXUM 110 - TRACTOR - TIER 3 LIMITED, MAXXUM 110 - TRACTOR - TIER 3 MULTICONTROLLER, MAXXUM 110 - TRACTOR - TIER 3 PRO, MAXXUM 110 - TRACTOR - TIER 3 VALUE, MAXXUM 110 - TRACTOR - TIER 3 X-LINE, MAXXUM 115 - TRACTOR, MAXXUM 115 - TRACTOR - TIER 3 LIMITED, MAXXUM 115 - TRACTOR - TIER 3 MULTICONTROLLER, MAXXUM 115 - TRACTOR - TIER 3 PRO, MAXX

1шт.

6

82017871

RELAY,12V, 20A

12V, 35A, Maxival

1шт.

Valid with MAXXUM 100 - TRACTOR, MAXXUM 100 - TRACTOR - TIER 3 LIMITED, MAXXUM 100 - TRACTOR - TIER 3 VALUE, MAXXUM 100 - TRACTOR - TIER 3 X-LINE, MAXXUM 110 - TRACTOR, MAXXUM 110 - TRACTOR - TIER 3 LIMITED, MAXXUM 110 - TRACTOR - TIER 3 MULTICONTROLLER, MAXXUM 110 - TRACTOR - TIER 3 PRO, MAXXUM 110 - TRACTOR - TIER 3 VALUE, MAXXUM 110 - TRACTOR - TIER 3 X-LINE, MAXXUM 115 - TRACTOR, MAXXUM 115 - TRACTOR - TIER 3 LIMITED, MAXXUM 115 - TRACTOR - TIER 3 MULTICONTROLLER, MAXXUM 115 - TRACTOR - TIER 3 PRO, MAXX

1шт.

Valid with VAR. 330820, 332820, 330821, 331821, 332821, 334821, 336821, 338821 / 743745, VAR. 332692, 331692

1шт.

D7311 Serial N. (Z9BE07816 Basildon Prod. / Z9BE53095 St. Valentin Prod.)

1шт.

6

86619908

RELAY,12V, 150A

12V, 120A

1шт.

Valid with MAXXUM 100 - TRACTOR, MAXXUM 100 - TRACTOR - TIER 3 LIMITED, MAXXUM 100 - TRACTOR - TIER 3 VALUE, MAXXUM 100 - TRACTOR - TIER 3 X-LINE, MAXXUM 110 - TRACTOR, MAXXUM 110 - TRACTOR - TIER 3 LIMITED, MAXXUM 110 - TRACTOR - TIER 3 MULTICONTROLLER, MAXXUM 110 - TRACTOR - TIER 3 PRO, MAXXUM 110 - TRACTOR - TIER 3 VALUE, MAXXUM 110 - TRACTOR - TIER 3 X-LINE, MAXXUM 115 - TRACTOR, MAXXUM 115 - TRACTOR - TIER 3 LIMITED, MAXXUM 115 - TRACTOR - TIER 3 MULTICONTROLLER, MAXXUM 115 - TRACTOR - TIER 3 PRO, MAXX

1шт.

Valid with VAR. 330204

1шт.

D6495 Serial N. (ZABE01091 Basildon Prod. / Z9BE55198 St. Valentin Prod.)

1шт.

6

84543528

RELAY,12V, 20A, Micro

15/25A, Flasher

1шт.

Valid with MAXXUM 100 - TRACTOR, MAXXUM 100 - TRACTOR - TIER 3 LIMITED, MAXXUM 100 - TRACTOR - TIER 3 VALUE, MAXXUM 100 - TRACTOR - TIER 3 X-LINE, MAXXUM 110 - TRACTOR, MAXXUM 110 - TRACTOR - TIER 3 LIMITED, MAXXUM 110 - TRACTOR - TIER 3 MULTICONTROLLER, MAXXUM 110 - TRACTOR - TIER 3 PRO, MAXXUM 110 - TRACTOR - TIER 3 VALUE, MAXXUM 110 - TRACTOR - TIER 3 X-LINE, MAXXUM 115 - TRACTOR, MAXXUM 115 - TRACTOR - TIER 3 LIMITED, MAXXUM 115 - TRACTOR - TIER 3 MULTICONTROLLER, MAXXUM 115 - TRACTOR - TIER 3 PRO, MAXX

1шт.

Valid with VAR. 330718, 330723, 331723, VAR. 332821, 334821 / 743745, VAR. 330925, VAR. 330770, 330771, VAR. 330786, VAR. 332727, 333727, 332737, 339737, 332739, 333739 ,VAR. 330641, VAR. 330643, VAR. 330798

1шт.

D7158 Serial N. 818 March 2011 Basildon Prod./ZBBE55239 St. Valentin Prod.)

1шт.

6

87304226

RELAY,12V, Combined, Black

12V, Wiper Timer

1шт.

Valid with MAXXUM 100 - TRACTOR, MAXXUM 100 - TRACTOR - TIER 3 LIMITED, MAXXUM 100 - TRACTOR - TIER 3 VALUE, MAXXUM 100 - TRACTOR - TIER 3 X-LINE, MAXXUM 110 - TRACTOR, MAXXUM 110 - TRACTOR - TIER 3 LIMITED, MAXXUM 110 - TRACTOR - TIER 3 MULTICONTROLLER, MAXXUM 110 - TRACTOR - TIER 3 PRO, MAXXUM 110 - TRACTOR - TIER 3 VALUE, MAXXUM 110 - TRACTOR - TIER 3 X-LINE, MAXXUM 115 - TRACTOR, MAXXUM 115 - TRACTOR - TIER 3 LIMITED, MAXXUM 115 - TRACTOR - TIER 3 MULTICONTROLLER, MAXXUM 115 - TRACTOR - TIER 3 PRO, MAXX

1шт.

Valid with STD

1шт.

D7158 Serial N. 818 March 2011 Basildon Prod./ZBBE55239 St. Valentin Prod.)

1шт.

7

5190333

FUSE,40A, Maxi, Orange

40A, Maxival, Orange

1шт.

Valid with MAXXUM 100 - TRACTOR, MAXXUM 100 - TRACTOR - TIER 3 LIMITED, MAXXUM 100 - TRACTOR - TIER 3 VALUE, MAXXUM 100 - TRACTOR - TIER 3 X-LINE, MAXXUM 110 - TRACTOR, MAXXUM 110 - TRACTOR - TIER 3 LIMITED, MAXXUM 110 - TRACTOR - TIER 3 MULTICONTROLLER, MAXXUM 110 - TRACTOR - TIER 3 PRO, MAXXUM 110 - TRACTOR - TIER 3 VALUE, MAXXUM 110 - TRACTOR - TIER 3 X-LINE, MAXXUM 115 - TRACTOR, MAXXUM 115 - TRACTOR - TIER 3 LIMITED, MAXXUM 115 - TRACTOR - TIER 3 MULTICONTROLLER, MAXXUM 115 - TRACTOR - TIER 3 PRO, MAXX

1шт.

7

84174070

FUSE,30A, Orange

30A, Orange

1шт.

Valid with MAXXUM 100 - TRACTOR, MAXXUM 100 - TRACTOR - TIER 3 LIMITED, MAXXUM 100 - TRACTOR - TIER 3 VALUE, MAXXUM 100 - TRACTOR - TIER 3 X-LINE, MAXXUM 110 - TRACTOR, MAXXUM 110 - TRACTOR - TIER 3 LIMITED, MAXXUM 110 - TRACTOR - TIER 3 MULTICONTROLLER, MAXXUM 110 - TRACTOR - TIER 3 PRO, MAXXUM 110 - TRACTOR - TIER 3 VALUE, MAXXUM 110 - TRACTOR - TIER 3 X-LINE, MAXXUM 115 - TRACTOR, MAXXUM 115 - TRACTOR - TIER 3 LIMITED, MAXXUM 115 - TRACTOR - TIER 3 MULTICONTROLLER, MAXXUM 115 - TRACTOR - TIER 3 PRO, MAXX

1шт.
