(1.82.7/18[02]) - 4 ELECTROHYDRAULIC REAR REMOTE CONTROL VALVES WITH HYDR. ADJUST. LINKAGE- CHANGEOVER VALVE AND PIPES (VAR.331862)

Запчасти Case IH MAXXUM 110 (1.82.7/18[02]) - 4 ELECTROHYDRAULIC REAR REMOTE CONTROL VALVES WITH HYDR. ADJUST. LINKAGE- CHANGEOVER VALVE AND PIPES (VAR.331862) (07) - HYDRAULIC SYSTEM

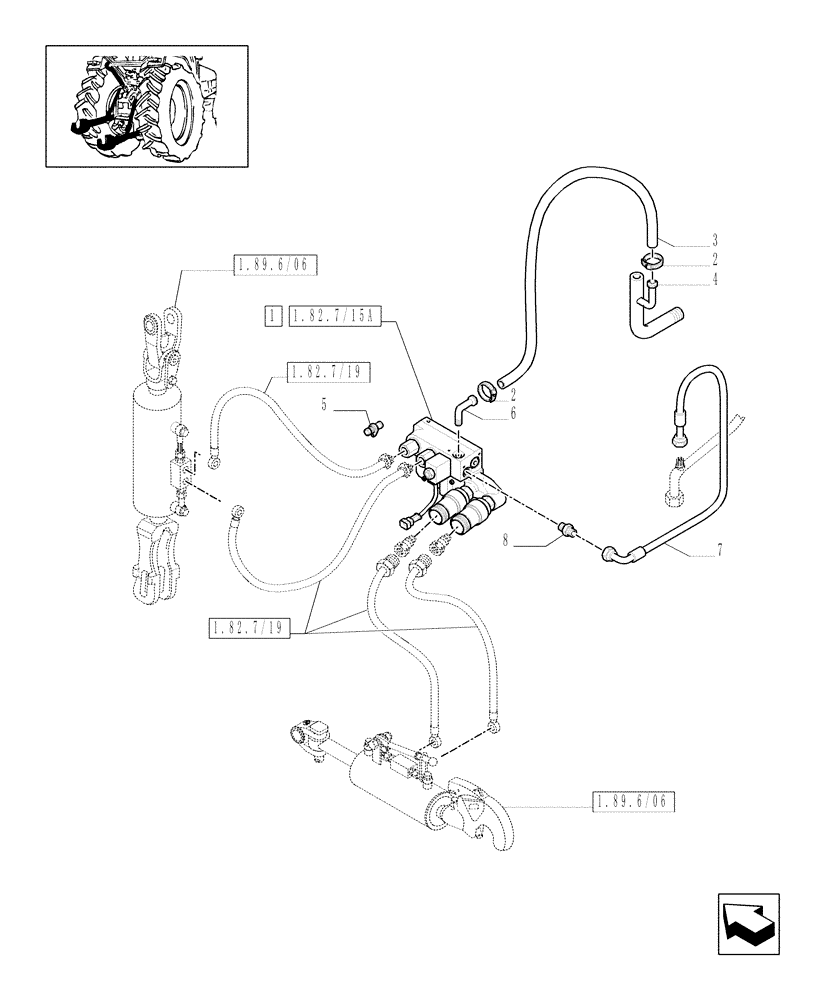

Схема запчастей Case IH MAXXUM 110 - (1.82.7/18[02]) - 4 ELECTROHYDRAULIC REAR REMOTE CONTROL VALVES WITH HYDR. ADJUST. LINKAGE- CHANGEOVER VALVE AND PIPES (VAR.331862) (07) - HYDRAULIC SYSTEM
8
7
2
3
1.82.7/15a
1.89.6/06
1.89.6/06
1.82.7/19
1.82.7/19
6
1
4
5
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87381996

CONTROL VALVE

1шт.

2

10187090

HOSE CLAMP,16mm - 18mm

D=16-18

2шт.

3

87310968

FLEXIBLE HOSE,10.00 mm ID x 1000.00 mm

1шт.

4

47135760

TUBE

1шт.

5

47135746

STOP PLUG

2шт.

6

87310967

BREATHER

1шт.

7

87302784

FLEXIBLE HOSE,6.4mm ID x 645mm L

9/16"-18, 645 mm

1шт.

8

47135740

HYD CONNECTOR

1/4BSPP, 9/16"-18

1шт.
