Запчасти Case IH MAXXUM 110 (1.82.1/11[02]) - CLASS 4 113 L/MIN CCLS PUMP FOR MDC AND SPS - LIFTER, LINES - D6288 (VAR.334835 / 743744) (07) - HYDRAULIC SYSTEM

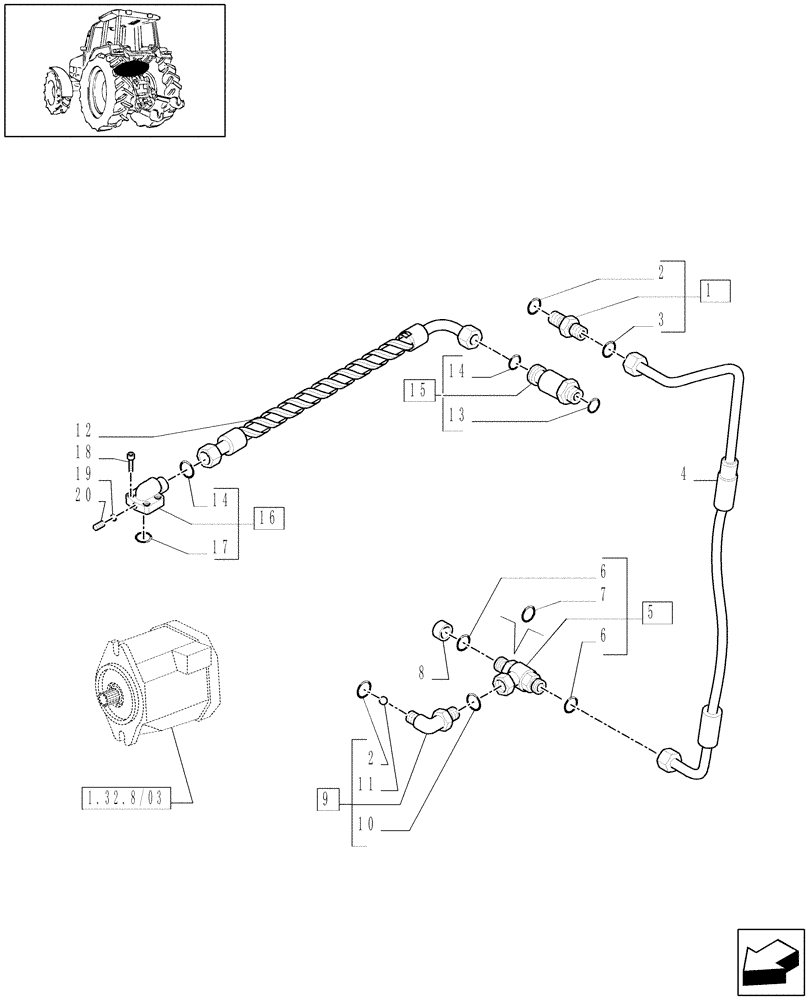

Схема запчастей Case IH MAXXUM 110 - (1.82.1/11[02]) - CLASS 4 113 L/MIN CCLS PUMP FOR MDC AND SPS - LIFTER, LINES - D6288 (VAR.334835 / 743744) (07) - HYDRAULIC SYSTEM
14
11
6
14
19
5
2
10
1
17
1.32.8/03
7
8
4
6
16
15
13
18
12
3
9
20
2

Артикул

Название

Примечание

Количество

1

5185045

HYD CONNECTOR

9/16 -18, M12X1,5

1шт.

2

5185509

O-RING,1.78mm Thk x 7.66mm ID, 85 Duro

2шт.

3

14437685

O-RING,9.30mm ID x 2.40mm

1шт.

4

47135605

FLEXIBLE HOSE

9/16 -18

1шт.

5

82018814

CHECK VALVE,9/16" - 18 JIC x 9/16" - 18 ORFS x 9/16" - 18 ORFS

1шт.

6

89825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

90 Duro, .301" ID x .070" Thk

2шт.

7

80165202

O-RING

4-1, 90 Duro, .351" ID x .072" Thk

2шт.

8

5189973

PLUG

9/16 -18

1шт.

9

47126659

ELBOW,90 Deg, 9/16-18 ORFS x 7/16-20 ORB

9/16 -18, 7/16 -20

1шт.

9

47135296

90 ELBOW,9/16"-18 x 7/16"-20

1шт.

10

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

1шт.

11

47126655

FILTER STRAINER

1шт.

12

87312959

FLEXIBLE HOSE,16mm ID x 540mm L, SAE 100R16

560MM

1шт.

13

14438185

O-RING,24mm ID x 3mm

1шт.

14

5185513

O-RING,1.78mm Thk x 18.77mm ID, 85 Duro

2шт.

15

87317008

HYD CONNECTOR

1"3/16-12, M27x2

1шт.

16

47130523

FLANGE

1шт.

17

14463781

O-RING,0.139" Thk x 1.296" ID, -219, Cl 7, 75 Duro

1шт.

18

14420321

HEX SOC SCREW,M10 x 35mm, Cl 8.8

4шт.

19

14437785

O-RING,11.3mm ID x 2.4mm

1шт.

20

10118711

PLUG,M14 x 1.5 x 12, Cl5.8

1шт.

Выбрано товаров: 21
