Запчасти Case IH MAXXUM 110 (1.82.1/04[01]) - 113 L/MIN CCLS PUMP FOR MDC AND SPS - LIFTER, LINES (VAR.330835 / 743744) (07) - HYDRAULIC SYSTEM

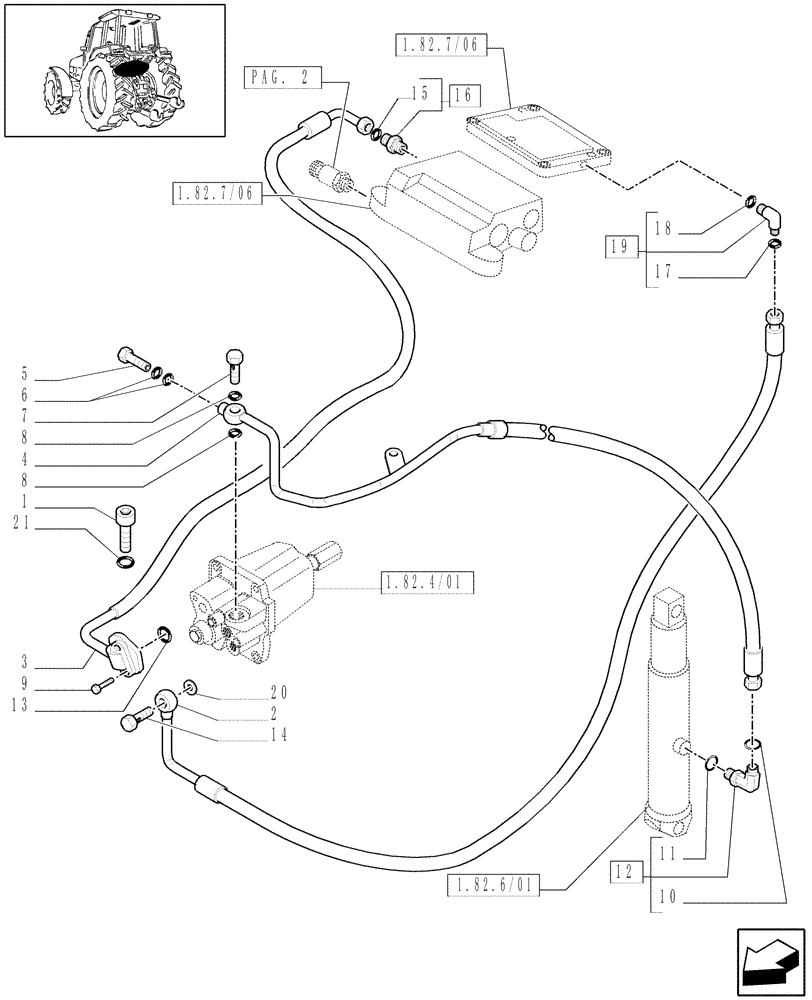

Схема запчастей Case IH MAXXUM 110 - (1.82.1/04[01]) - 113 L/MIN CCLS PUMP FOR MDC AND SPS - LIFTER, LINES (VAR.330835 / 743744) (07) - HYDRAULIC SYSTEM
17
10
1
11
pag. 2
16
19
3
18
8
12
13
4
5
20
8
14
21
7
2
6
9
15
1.82.7/06
1.82.7/06
1.82.6/01
1.82.4/01

Артикул

Название

Примечание

Количество

1

10118811

PLUG,M22 x 1.5 x 14, Cl5.8

1шт.

2

87316999

FLEXIBLE HOSE

1шт.

3

87559739

HOSE

1шт.

4

87316659

FLEXIBLE HOSE

LH

1шт.

5

10300611

PLUG,M14 x 1.5 x 14, Cl5.8

1шт.

6

5169544

SEAL,14.7mm ID x 22mm OD x 1.5mm Thk

D=14

2шт.

7

47131904

BANJO BOLT

M18x1.5x39

1шт.

8

5167640

SEALING WASHER,14.09mm ID x 26.45mm OD x 1.5mm Thk

D=18

2шт.

9

10902734

SCREW,Hex, M6 x 28mm, Cl 10.9, Full Thd

2шт.

10

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

2шт.

11

14437885

O-RING,13.30mm ID x 2.40mm

2шт.

12

5194076

ELBOW,90 Deg, 11/16-16 ORFS x M16 x 1.5 ORB

11/16, M16x1.5

2шт.

13

14457280

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

2шт.

14

11904111

BANJO BOLT,M10 x 1 x 19mm

1шт.

15

14438185

O-RING,24mm ID x 3mm

2шт.

16

5192291

HYD CONNECTOR,1" - 14 ORFS x M22 x 1.5 ORB

1шт.

17

14437685

O-RING,9.30mm ID x 2.40mm

1шт.

18

5185509

O-RING,1.78mm Thk x 7.66mm ID, 85 Duro

1шт.

19

47123008

ELBOW

1шт.

20

87316678

SEALING WASHER,10mm ID x 16mm OD x 2.3mm Thk

D=10

1шт.

21

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

Выбрано товаров: 21
