Запчасти Case IH MAXXUM 110 (1.80.7/04) - PTO CLUTCH FOR 16X16 TRANSMISSION LESS CREEPER (2WD) - CONTROL VALVE AND RELEVANT PARTS (VAR.331405) (07) - HYDRAULIC SYSTEM

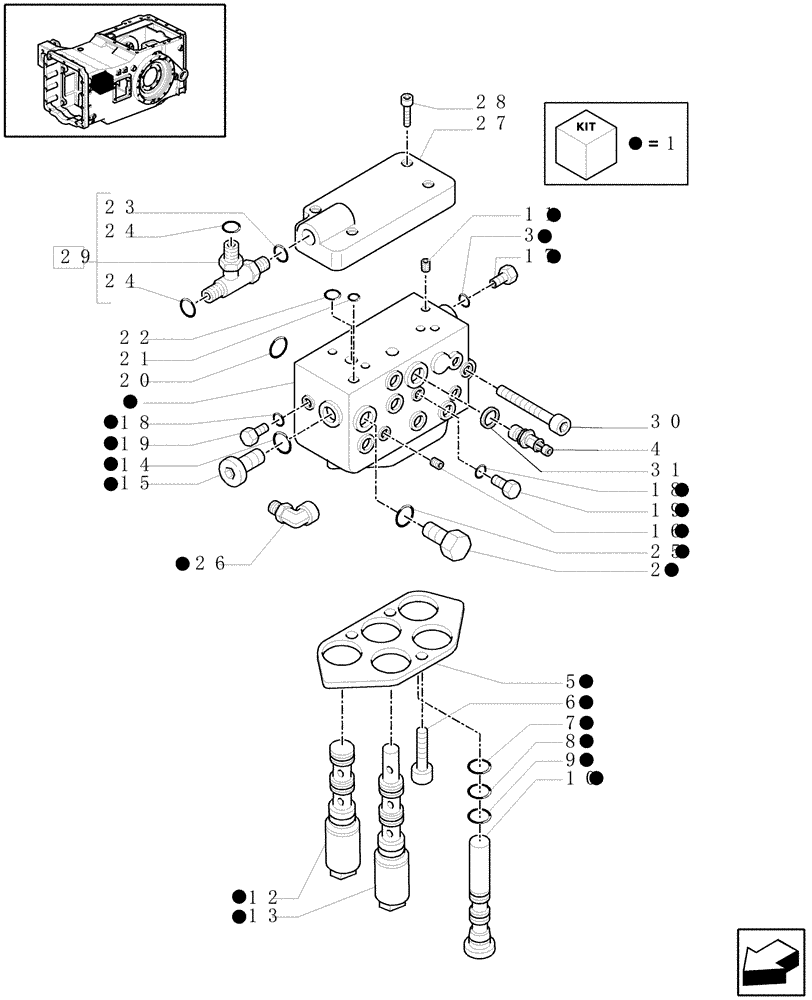

Схема запчастей Case IH MAXXUM 110 - (1.80.7/04) - PTO CLUTCH FOR 16X16 TRANSMISSION LESS CREEPER (2WD) - CONTROL VALVE AND RELEVANT PARTS (VAR.331405) (07) - HYDRAULIC SYSTEM
1
3
5
1
1
1
1
24
1
1
30
13
22
1
18
15
27
1
1
28
9
1
1
1
2
11
1
12
17
1
1
6
4
1
19
1
31
10
26
1
1
16
1
23
8
7
14
1
19
1
29
21
20
24
1
25
18

Артикул

Название

Примечание

Количество

1

5195313

CONTROL VALVE

1шт.

2

11903211

PLUG,M12 x 1.25 x 12, Cl5.8

1шт.

3

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

1шт.

4

87384750

PRESSURE SWITCH

1шт.

Steering System Pressure

1шт.

5

5195317

PLATE

1шт.

6

14302824

HEX SOC SCREW,M8 x 1.25 x 18mm, Cl 8.8, Full Thd

3шт.

7

14453182

O-RING,0.07" Thk x 0.489" ID, -14, Cl 9, 70 Duro

2шт.

8

14453280

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

2шт.

9

5135736

O-RING,1.78mm Thk x 20.35mm ID, 80 Duro

2шт.

10

5195316

PLUG

2шт.

11

5171508

RESTRICTOR

1шт.

12

87723774

SOLENOID VALVE

114MM, Serial Range: -C6743

2шт.

Differential Lock & PTO Brake Engagement

1шт.

12

84276869

SOLENOID

, Start Serial: D6743

2шт.

Differential Lock & PTO Brake Engagement

1шт.

13

5196873

SOLENOID VALVE

132MM

1шт.

PTO Clutch Disengagement

1шт.

14

14437885

O-RING,13.30mm ID x 2.40mm

1шт.

15

10119340

PLUG,M16 x 1.5 x 15, Brass

1шт.

16

14326004

PLUG,Hex Socket, M10 x 1.25 x 11.00mm, STL, DAC

M10 x 1.25

9шт.

17

10300511

PLUG,M12 x 1.5 x 12, Cl5.8

1шт.

18

4858606

SEAL,10.2mm ID x 16mm OD x 1mm Thk

5шт.

19

11903011

PLUG,M10 x 1 x 11, Cl5.8

5шт.

20

14457080

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

12шт.

21

14456981

O-RING,0.424" ID x 0.103" Width

2шт.

22

5135738

O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro

1шт.

23

14437985

O-RING,15.3mm ID x 2.4mm

3шт.

24

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

Trans. Temp. TS100A, TS115A

2шт.

25

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

SEAL WASHER

1шт.

26

87537887

90 ELBOW

1шт.

27

5197061

PLATE

1шт.

28

14306521

HEX SOC SCREW,M8 x 1.25 x 30mm, Cl 8.8

4шт.

29

5194083

TEE

1шт.

30

14308521

HEX SOC SCREW,M10 x 1.25 x 90mm, Cl 8.8

3шт.

31

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

M12

1шт.

Выбрано товаров: 36
