Запчасти Case IH MAXXUM 110 (1.75.4/01[02]) - GRID HEATER (VAR.330204) (06) - ELECTRICAL SYSTEMS

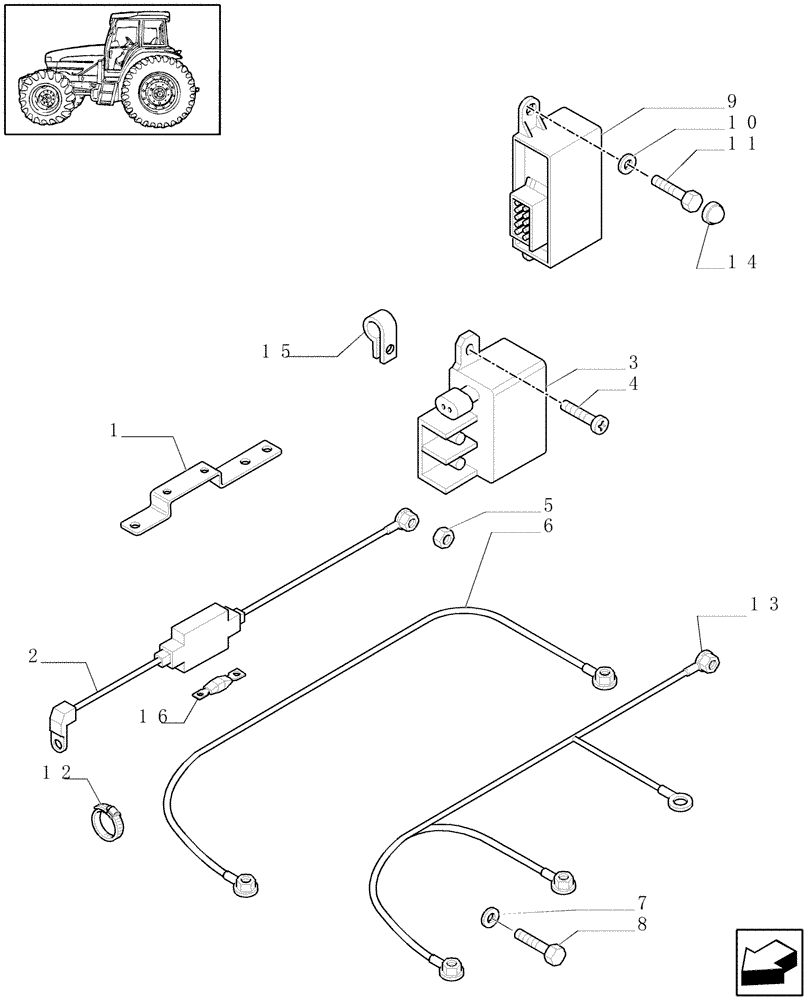

Схема запчастей Case IH MAXXUM 110 - (1.75.4/01[02]) - GRID HEATER (VAR.330204) (06) - ELECTRICAL SYSTEMS
3
16
4
8
15
6
14
7
9
5
2
13
1
10
11
12

Артикул

Название

Примечание

Количество

1

87570805

BRACKET

1шт.

2

82036889

WIRE HARNESS

Grid Heater, Incl.16, Serial Range: -C6495

1шт.

2

84243701

WIRE HARNESS

Grid Heater, Incl.16, Start Serial: D6495

1шт.

3

82022813

RELAY,12V, High Current

1шт.

4

83998908

SCREW,Pozidriv Pan Hd, M6 x 12mm, Cl 4.8, Full Thd

2шт.

5

15896211

NUT,M6, Cl 8

1шт.

6

82037655

WIRE HARNESS,210mm L

4 Cyl. Mechanical Engine Grid Heater

1шт.

6

82037654

WIRE HARNESS,435mm L

6 Cyl. Mechanical Engine Grid Heater

1шт.

7

14496721

WASHER,13mm ID x 24mm OD x 2.5mm Thk

1шт.

8

11112124

SCREW,Hex, M12 x 20mm, Cl 8.8, Full Thd

1шт.

9

47132002

HEATER

1шт.

10

14496404

WASHER,M6 x 12 x 2 Thk

2шт.

11

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

2шт.

12

82001041

CABLE TIE,0.190" x 7.00" / 200 mm L

CABLE STRAP

2шт.

13

82036465

WIRE HARNESS,500mm L

4 Cyl. Electrical Engine Grid Heater

1шт.

13

82036464

ELECTRIC CABLE,650mm L

6 Cyl. Electrical Engine Grid Heater

1шт.

14

87533425

COVER,M6

M6

4шт.

15

10441490

COLLAR,14mm, Coat, 7mm Bolt Hole, P Type

1.14 MM

1шт.

16

11056290

FUSE,125A, Maxi

1шт.

Выбрано товаров: 19
