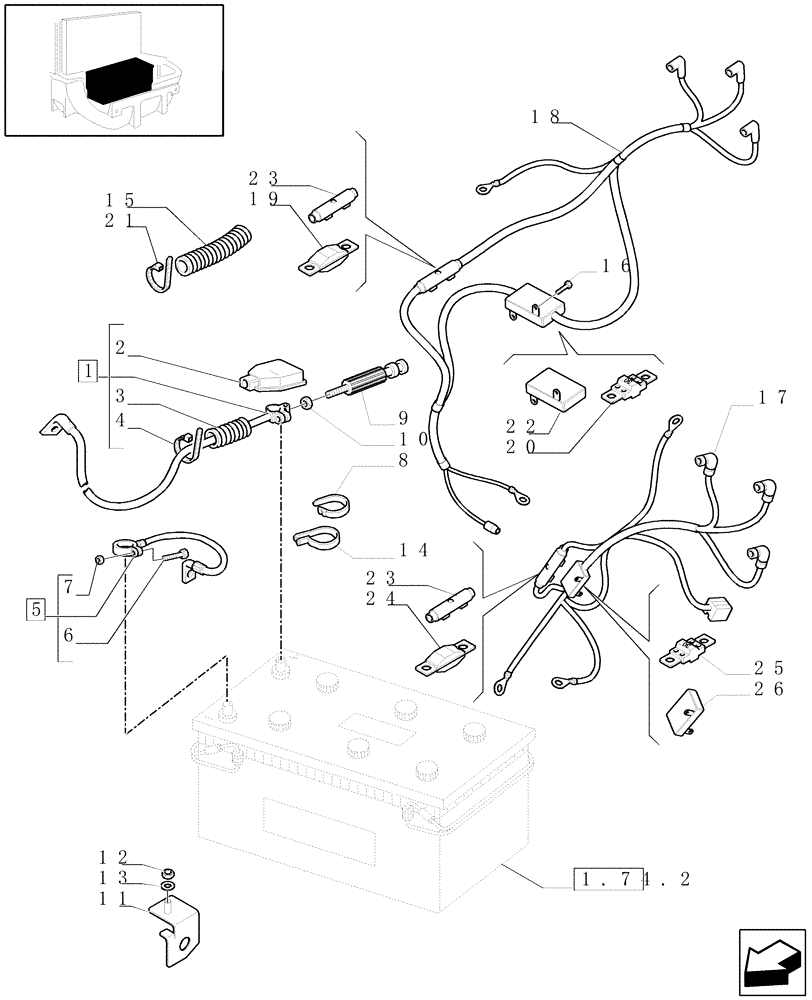

Запчасти Case IH MAXXUM 110 (1.75.3[01B]) - BATTERY CABLES - D6400 (06) - ELECTRICAL SYSTEMS

1

87324238

POS BATTERY CABLE,1290mm L

L=1290MM, Battery to Starter Motor

1шт.

2

81867524

PROTECTION CAP

1шт.

3

82918747

SHIELD

350MM

1шт.

4

82001040

CABLE TIE,.19" x 11.5"

CABLE STRAP

1шт.

5

87324239

NEG BATTERY CABLE

, Serial Range: Battery-Ground

1шт.

6

81869762

BOLT

1шт.

7

82879527

NUT,Hex, M8

M8

1шт.

8

529070

CABLE TIE,368.3mm L

CABLE STRAP

1шт.

9

82028966

TERMINAL CONNECTOR,M10 x 1.5, CL 8.8

1шт.

10

11701721

NUT,M10, Cl 10

1шт.

11

87395437

BRACKET

1шт.

12

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

1шт.

13

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

1шт.

14

10441890

CLAMP,22mm, Coat, 7mm Bolt Hole, P Type

5/16" x 14-1/2"

1шт.

15

87668898

FLEXIBLE SHEATH

L=400MM

1шт.

16

81866078

BOLT

2шт.

17

87608619

WIRE HARNESS

Incl. 19, 20, 22, 23

1шт.

W/Mechanical Battery Insulation, VAR.331798

1шт.

17

84249202

WIRE HARNESS

Incl.23, 24, 25, 26, Start Serial: D6725

1шт.

W/Electronic Battery Insulation, VAR.330798

1шт.

17

84176680

WIRE HARNESS

Incl. 23,24,25,26, Serial Range: -C6725

1шт.

W/Electronic Battery Insulation, VAR.330798

1шт.

18

84209894

WIRE HARNESS

Incl. 19, 20 ,22, 23, Serial Range: -C6725

1шт.

18

84245746

WIRE HARNESS

Incl.19, 20, 22, 23, Start Serial: D6725

1шт.

19

82033972

FUSE,250A

250Amp

1шт.

20

87390344

FUSE,30A, MIDIVAL

30Amp

1шт.

21

83933061

STRAP

3шт.

22

76045724

FUSE HOLDER

30A

1шт.

23

82027575

FUSE HOLDER

250A

1шт.

24

84174069

FUSE,250A

250AMP

2шт.

25

84174070

FUSE,30A, Orange

30AMP

2шт.

26

84175730

FUSE HOLDER

30A

2шт.
