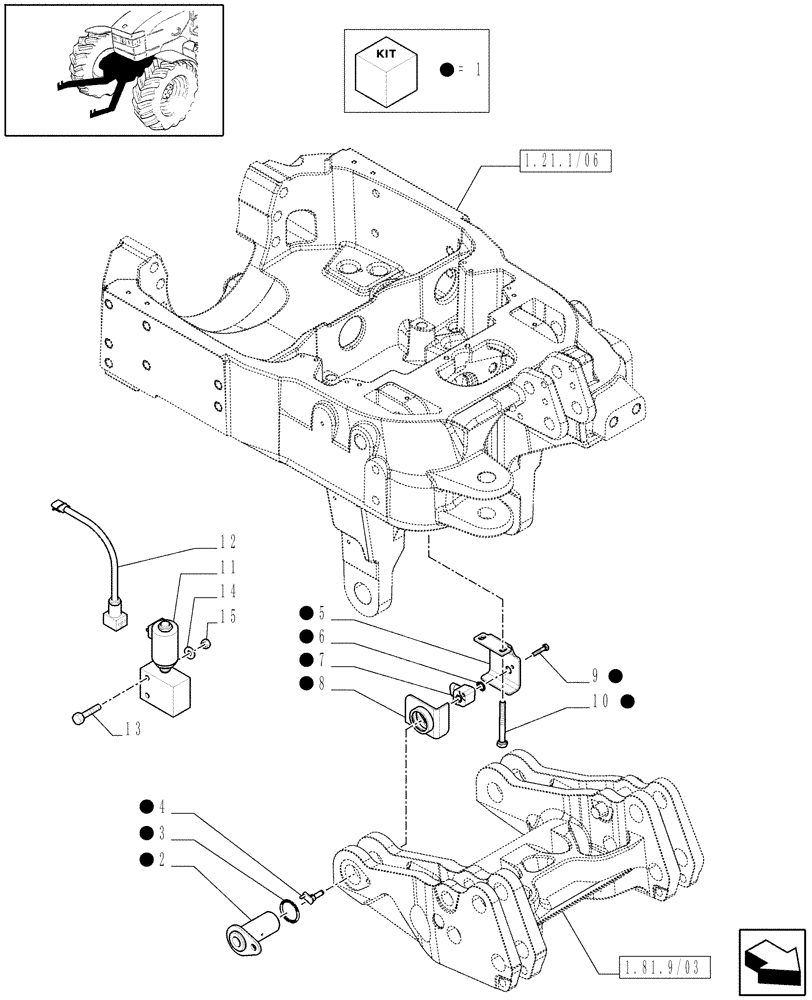

Запчасти Case IH MAXXUM 110 (1.75.0/06) - INTEGRATED FRONT HPL WITH PTO - POTENTIOMETER AND SOLENOID VALVE - C6519 (VAR.330847-331847-332847-333847-334847-335847) (06) - ELECTRICAL SYSTEMS

1

87643927

SENSOR

ASSY, Turn Angle

1шт.

2

47057595

PIN,40mm OD x 104mm L

1шт.

3

272470

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

1шт.

4

5198408

CONTROL

1шт.

5

87643926

SUPPORT

1шт.

6

11087976

CIRCLIP,Ext., M8, BLO

1шт.

7

87605245

POTENTIOMETER,4000 Ohm, 13.5 VDC

Rotary Position Sensor

1шт.

8

47057598

BRACKET

1шт.

9

86544168

BOLT,Hex, M5 x 35mm, Cl 8.8

2шт.

10

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

2шт.

11

5141295

SOLENOID VALVE

1шт.

12

47133195

WIRE HARNESS

1шт.

13

10903724

BOLT,M6 x 55, 8.8

2шт.

14

14499304

WASHER,6.4mm ID x 11mm OD x 1.6mm Thk

2шт.

15

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

2шт.
