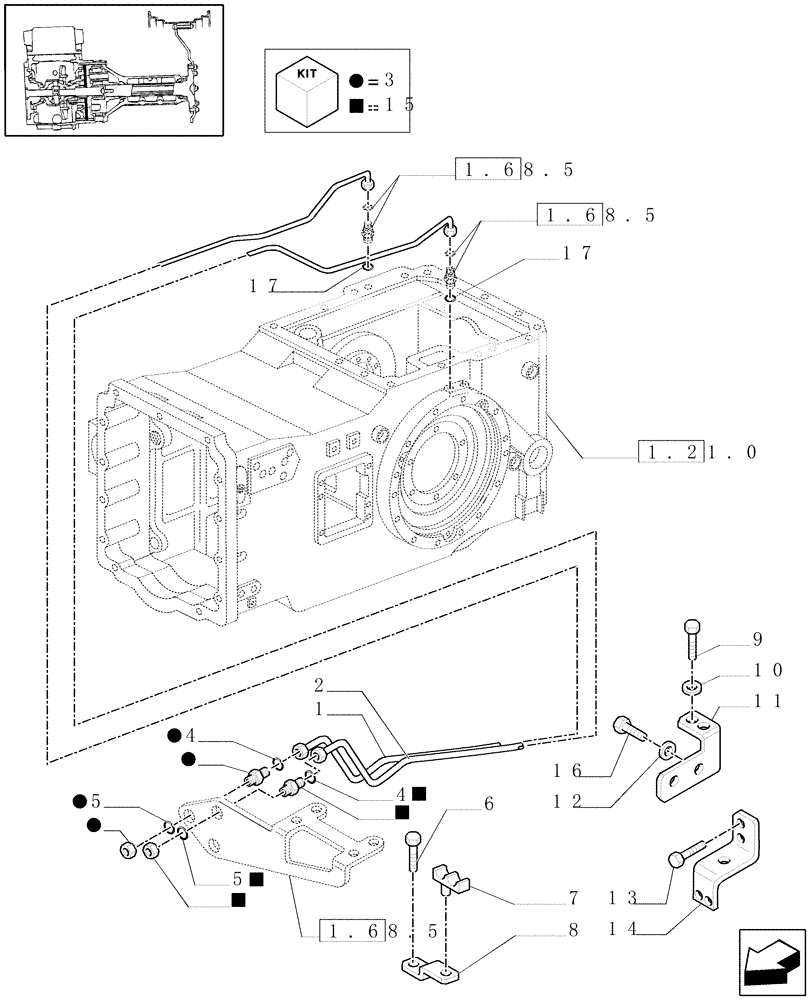

Запчасти Case IH MAXXUM 110 (1.68.5/02) - 113 L/MIN CCLS PUMP FOR CLASS 4 FROM AXLE - BRAKE PIPES (VAR.334835-336835-337835-338835-339835 / 743744) (05) - REAR AXLE

1

84168505

BRAKE LINE,8 mm OD

RH

1шт.

2

84168503

TUBE,8 mm OD

LH

1шт.

3

87711900

HYD CONNECTOR

1шт.

4

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

1шт.

5

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

1шт.

6

14362124

SCREW,M10 x 8mm, Cl 8.8

1шт.

7

14575480

CLIP

1шт.

8

5155804

BRACKET

1шт.

9

10902624

SCREW,Hex, M6 x 25mm, Cl 8.8, Full Thd

2шт.

10

10519421

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

2шт.

11

84168461

BRACKET

1шт.

12

12638621

WASHER,M10 x 18 x 2

2шт.

13

15970924

SCREW,Hex, M10 x 1.25 x 35mm, Cl 8.8

2шт.

14

84169305

BRACKET

1шт.

15

47136517

HYD CONNECTOR,ORFS 11/16"-16

1шт.

16

15970324

SCREW,Hex, M10 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

17

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

M12

2шт.
