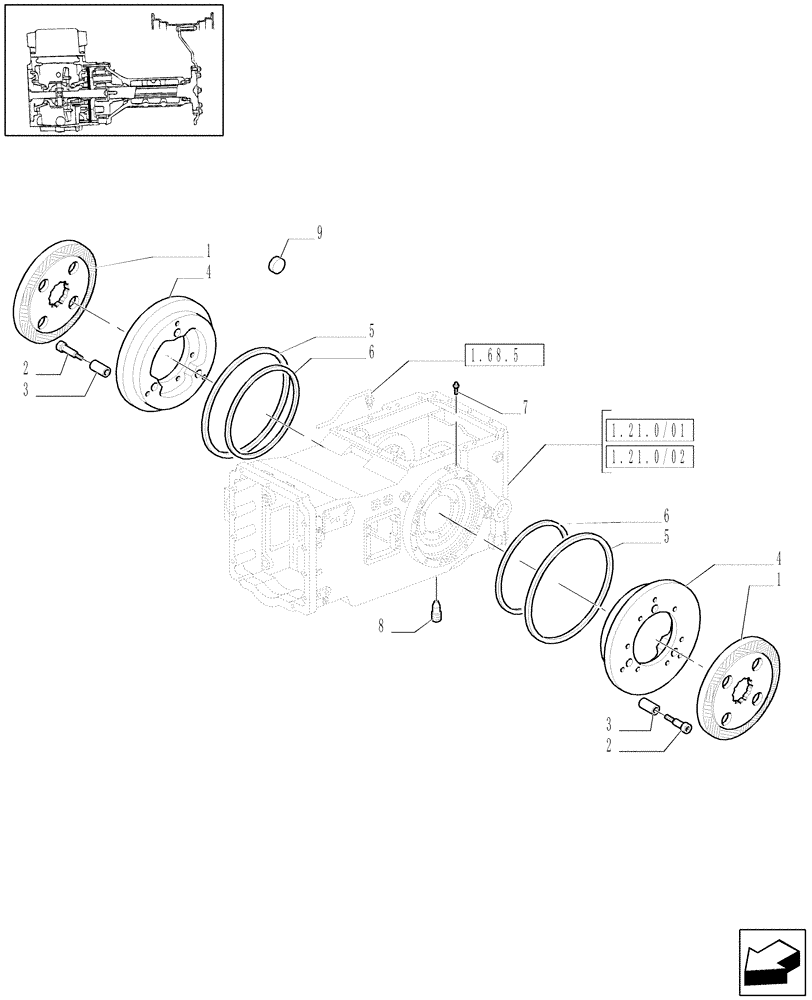

Запчасти Case IH MAXXUM 110 (1.65.3[02]) - REAR AXLE - BRAKES (05) - REAR AXLE

1

5191497

BRAKE DISC

2шт.

2

47132770

SCREW,M10 x 1.25 x 48mm, Cl 10.9

6шт.

3

5192390

BUSHING,17mm ID x 24mm OD x 28.98mm L

6шт.

4

5191494

PISTON

, Serial Range: -C5851

2шт.

4

87354150

PISTON

, Start Serial: D5851

2шт.

5

5165512

SEAL,Square, 3.4mm Thk x 329.8mm ID, 80 Duro

2шт.

6

5191498

SEAL,Quad, 3.4mm Thk x 268mm ID, 80 Duro

2шт.

7

5155682

BLEED SCREW,Bleeder, M12 x 1.25 x 33mm

2шт.

8

5152383

DRAIN PLUG,M12 x 1.25 x 24mm

2шт.

9

87574047

PLUG

, Start Serial: D5851

2шт.
