Запчасти Case IH MAXXUM 110 (1.38.5) - FOUR WHEEL DRIVE PROPELLER SHAFT FOR FIXED FRONT AXLE (04) - FRONT AXLE & STEERING

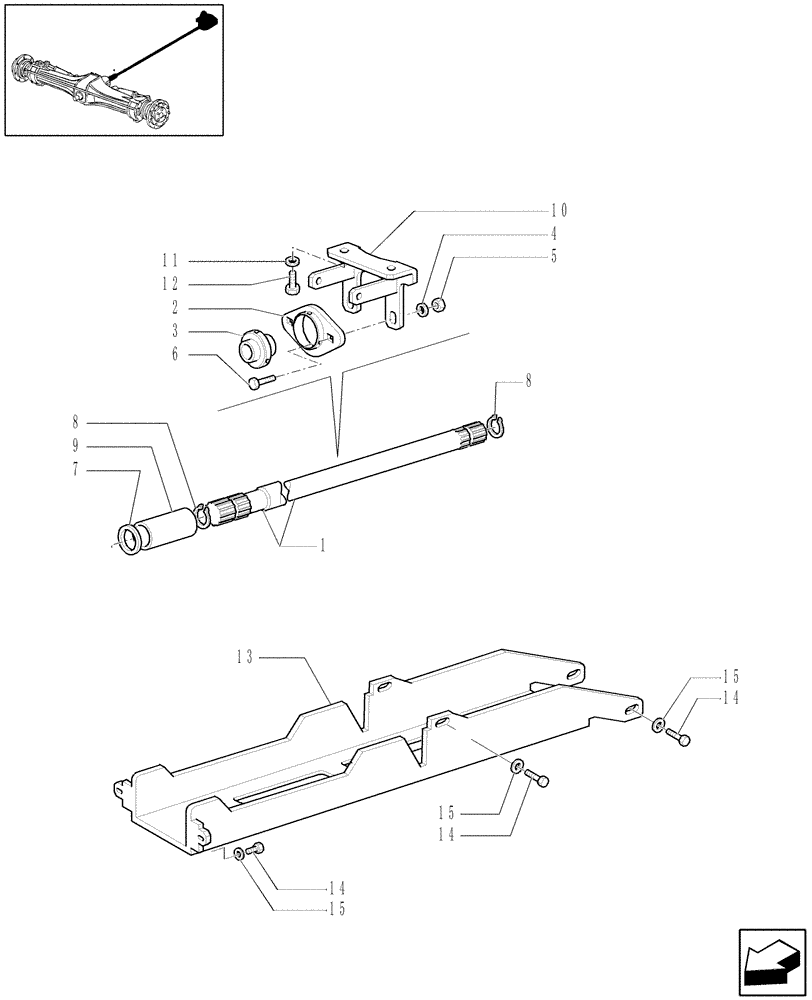

Схема запчастей Case IH MAXXUM 110 - (1.38.5) - FOUR WHEEL DRIVE PROPELLER SHAFT FOR FIXED FRONT AXLE (04) - FRONT AXLE & STEERING
14
12
6
15
14
9
7
3
2
14
10
1
4
8
11
15
15
8
5
13

Артикул

Название

Примечание

Количество

1

87583760

PROPELLER SHAFT

For 4 cyl. Models

1шт.

1

87583761

PROPELLER SHAFT

For 6 cyl. Models

1шт.

2

5174572

KIT

1шт.

3

5174571

FLANGED BEARING,35mm ID

1шт.

4

11198574

BELLEVILLE WASHER,Belleville, M10.5

4шт.

5

12574511

LOCK NUT,M10 x 1.25, Cl 8

2шт.

6

15970724

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

7

5143583

SHIM,31.7mm ID x 42mm OD x 1mm Thk

1шт.

7

5143584

SHIM,31.7mm ID x 42mm OD x 1.2mm Thk

1шт.

7

5143585

SHIM,31.7mm ID x 42mm OD x 1.5mm Thk

1шт.

7

5143586

SHIM,32mm ID x 42mm OD x 1.8mm Thk

1шт.

7

5143587

SHIM,31.7mm ID x 42mm OD x 2mm Thk

2.0MM

1шт.

7

5143588

SHIM,31.7mm ID x 42mm OD x 2.2mm Thk

2.2MM

1шт.

7

5143589

SHIM,31.7mm ID x 42mm OD x 2.5mm Thk

2.5MM

1шт.

7

5143590

SHIM,31.7mm ID x 42mm OD x 2.8mm Thk

2.8MM

1шт.

7

5143591

SHIM,31.7mm ID x 42mm OD x 3mm Thk

3.0MM

1шт.

7

5143592

WASHER,31.70mm ID x 42.00mm OD x 3.30mm T

3.3MM

1шт.

7

5143593

WASHER,31.7mm ID x 42mm OD x 3.7mm Thk

3.7MM

1шт.

7

5143594

WASHER,31.7mm ID x 42mm OD x 4mm Thk

4.0MM

1шт.

7

5143595

WASHER,31.7mm ID x 42mm OD x 4.3mm Thk

4.3MM

1шт.

8

11067876

SNAP RING,M30, Ext

2шт.

9

5196462

SPLINED COUPLING,14T

1шт.

10

5196472

SUPPORT

1шт.

11

11191074

BELLEVILLE WASHER,M14 Bolt Size x 27mm OD x 2.6mm Thk

2шт.

12

11422324

BOLT,Hex, M14 x 1.5 x 30mm, Cl 8.8

2шт.

13

87517146

GUARD

For 4 cyl. Models

1шт.

13

87517148

GUARD

For 6 cyl. Models

1шт.

14

82019896

FLANGE BOLT,Hex, M8 x 1.5 x 16mm, Piloted

M8 x 1.25 x 16

6шт.

15

11198179

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 2.2mm Thk

6шт.

Выбрано товаров: 29
