Запчасти Case IH MAXXUM 110 (1.32.1/01[01]) - TRANSMISSION 24X24 (40 KM/H) HI-LO - REDUCTION GEAR (STD + VAR.330282) (03) - TRANSMISSION

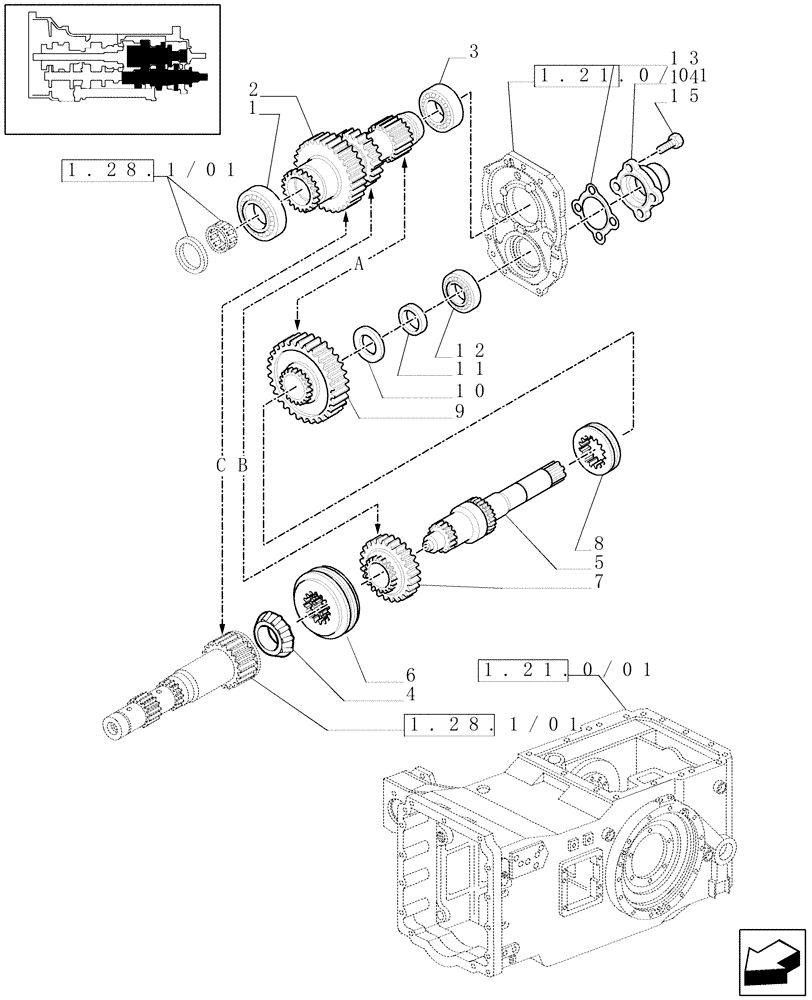

Схема запчастей Case IH MAXXUM 110 - (1.32.1/01[01]) - TRANSMISSION 24X24 (40 KM/H) HI-LO - REDUCTION GEAR (STD + VAR.330282) (03) - TRANSMISSION
8
14
9
1.21.0/01
1.21.0/01
1.28.1/01
1.28.1/01
7
1
6
5
10
c
a
b
11
4
15
12
13
2
3

Артикул

Название

Примечание

Количество

1

81864405

BALL BEARING,80mm ID x 125mm OD x 22mm W

80 x 125 x 22

1шт.

2

5195020

GEAR

1шт.

3

20033750

BALL BEARING,45 mm ID x 100 mm OD x 25 mm

45 x 100 x 25

1шт.

4

5195034

ROLLER BEARING,30.01mm ID x 25.01mm W

1шт.

5

5195018

SHAFT

1шт.

6

5199054

SYNCHRONIZER

D=114, High/Mid Range

1шт.

7

81864900

GEAR

1шт.

8

83959995

COUPLING,28T

Low Range

1шт.

9

81864533

GEAR,28 T/60 T

1шт.

10

81824352

THRUST WASHER,44.48mm ID x 66.55mm OD x 6.27mm Thk

1шт.

11

81864544

SPACER,41.34mm ID x 52mm OD x 11.39mm L

1шт.

12

82020393

BEARING ASSY

1шт.

13

81804788

SHIM,91.95mm ID x 109.47mm OD x 0.08mm Thk

(.076 mm)

1шт.

13

81804789

SHIM,91.95mm ID x 128.67mm OD x 0.13mm Thk

(.127 mm)

1шт.

13

81804790

SHIM,91.95mm ID x 128.67mm OD x 0.08mm Thk

(.305 mm)

1шт.

13

83926425

SHIM,91.95mm ID x 109.47mm OD x 0.79mm Thk

0.029/0.737

1шт.

14

82019817

SUPPORT

1шт.

15

15970724

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

Выбрано товаров: 18
