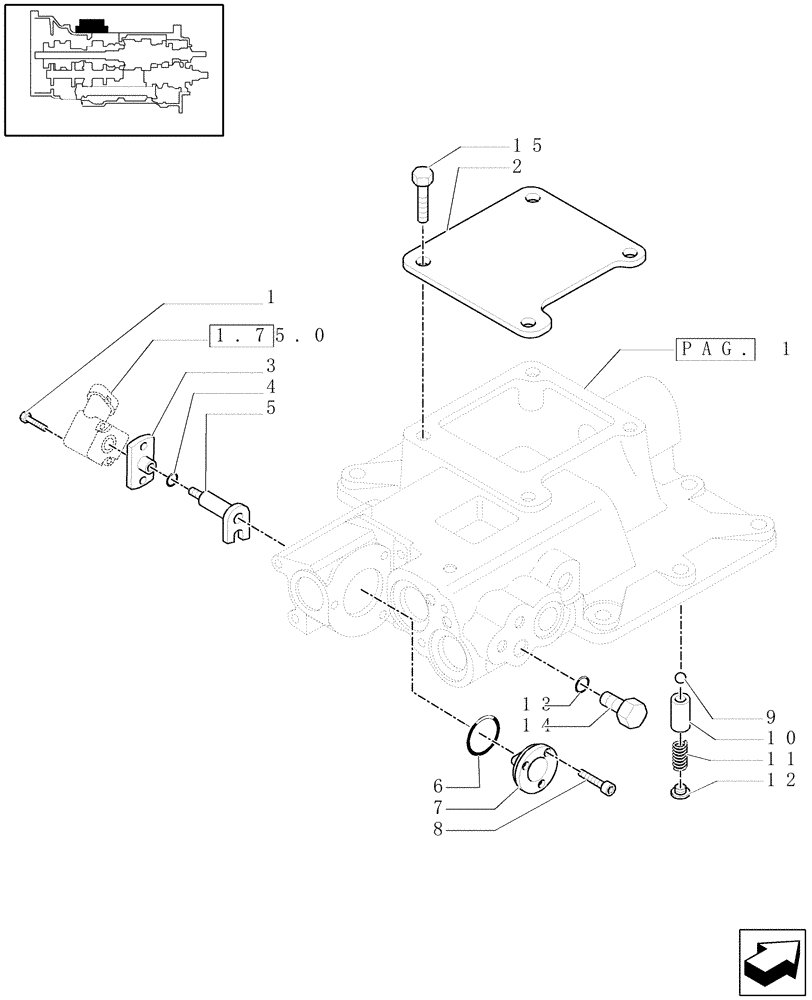

Запчасти Case IH MAXXUM 110 (1.29.9/01[02]) - TRANSMISSION 24X24 HI-LO - COVER FOR REVERSER - TOP COVER AND SENSOR (STD + VAR.330282) (03) - TRANSMISSION

1

13275001

SCREW,Cross Pan Hd, M5 x 40mm

2шт.

2

82019916

COVER

1шт.

3

5178541

PLATE

1шт.

4

14456981

O-RING,0.424" ID x 0.103" Width

1шт.

5

5178335

SHAFT,12mm OD x 48.5mm L

1шт.

6

14454780

O-RING,1.614" ID x 0.07" Width

1шт.

7

82019915

COVER

1шт.

8

10977624

BOLT,Hex, M5 x 12mm, Cl 8.8, Full Thd

3шт.

9

88210005

BALL,10mm OD

D=10

1шт.

10

81864220

PLUNGER

1шт.

11

83407013

SPRING

1шт.

12

82031672

PLUG

1шт.

13

82857994

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

14

82857995

PLUG,7/16" - 20 ORB

1шт.

15

15971824

SCREW,Hex, M10 x 1.25 x 100mm, Cl 8.8

2шт.

15

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.
