Запчасти Case IH MAXXUM 110 (1.29.9/01[01]) - TRANSMISSION 24X24 HI-LO - COVER FOR REVERSER – FORK AND VALVES (STD + VAR.330282) (03) - TRANSMISSION

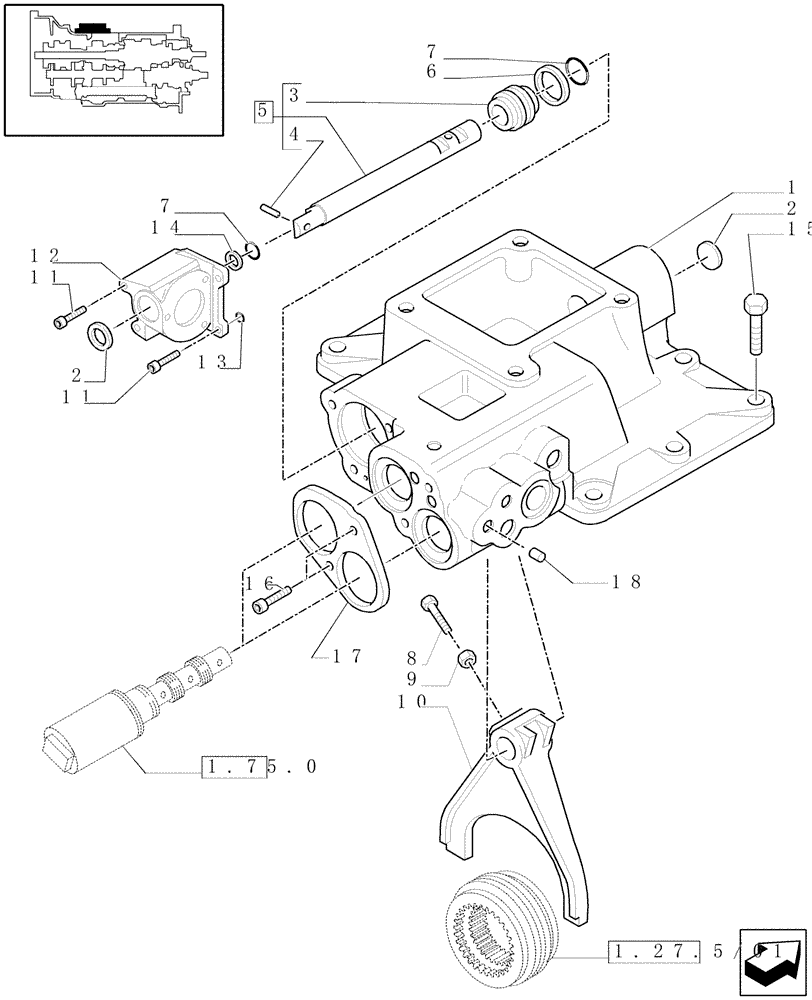

Схема запчастей Case IH MAXXUM 110 - (1.29.9/01[01]) - TRANSMISSION 24X24 HI-LO - COVER FOR REVERSER – FORK AND VALVES (STD + VAR.330282) (03) - TRANSMISSION
11
3
16
4
8
14
7
2
13
6
18
7
1.27.5/01
1.75.0
1
15
2
5
17
9
12
10
11

Артикул

Название

Примечание

Количество

1

82031674

HOUSING

1шт.

2

83417039

PLUG

2шт.

3

82015192

PISTON

1шт.

4

82015193

PIN

1шт.

5

82022085

SHAFT

Incl. 4

1шт.

6

5175009

SEALING RING,34.55mm ID x 42.02mm OD x 3.2mm Thk

SEALRING

1шт.

7

81902618

O-RING,0.139" Thk x 0.921" ID, -213, Cl 5, 75 Duro

2шт.

8

82019918

SCREW,Hex, M10 x 1.5 x 26mm, Stainless

2шт.

9

82895198

NUT,Jam, Hex, M10, 5mm High, CL 04

M10

2шт.

10

82007504

SHIFTER FORK

1шт.

11

14300621

HEX SOC SCREW,M6 x 80mm

M6 x 80

2шт.

11

14305431

HEX SOC SCREW,M6 x 25mm, Cl 10.9, Full Thd

2шт.

12

82031670

COVER

1шт.

13

83416156

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

1шт.

14

14458680

O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro

1шт.

15

11306924

BOLT,Hex, M10 x 1.25 x 30, 8.8, Full Thd

6шт.

16

14305124

HEX SOC SCREW,M6 x 12mm, Cl 8.8, Full Thd

2шт.

17

82022595

BRACKET

1шт.

18

14536490

PLUG,8.00mm Dia x 15.70mm L

D=8

5шт.

Выбрано товаров: 19
