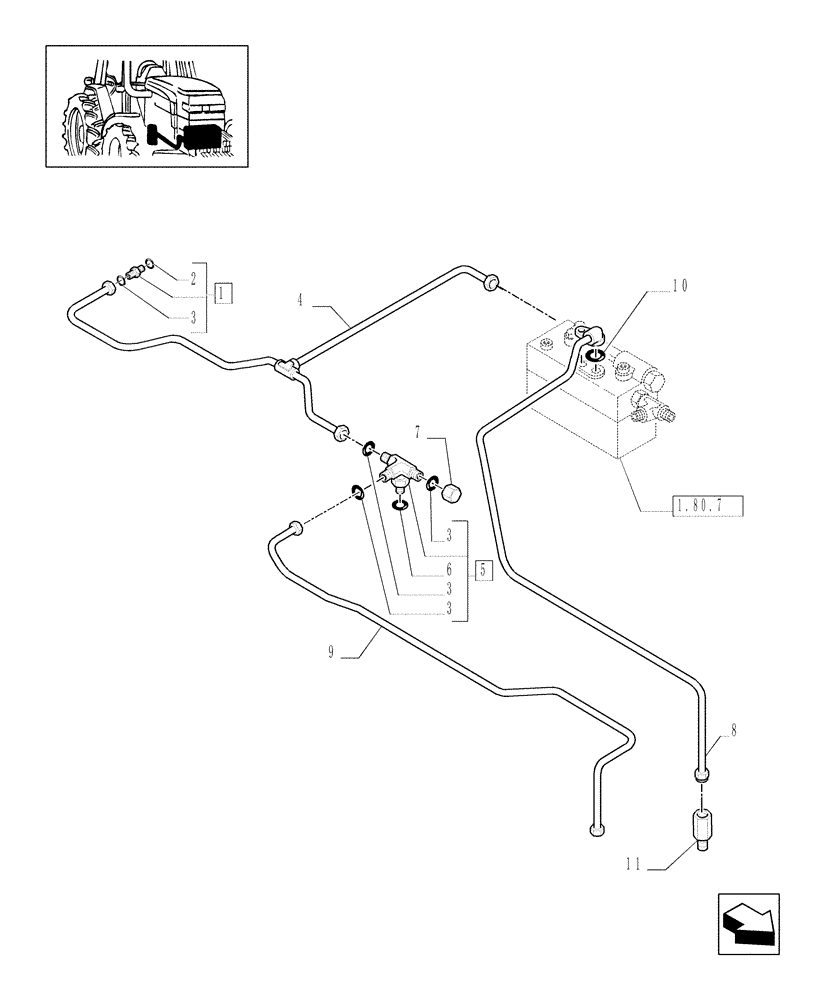

Запчасти Case IH MAXXUM 110 (1.29.7/02[02]) - TRANSMISSION 24X24 HI-LO - GEARBOX LUBRICATION PIPING (03) - TRANSMISSION

1

5194065

HYD CONNECTOR,M18 x 1.5 x 36mm

13/16''-16, M18 x 1.5

1шт.

2

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

3

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

M12.42 ID x 1.78 Thk

8шт.

4

87310107

HYD TUBE

13/16''-16, Lube PTO Open Center Circuit

1шт.

5

47132978

TEE

13/16"-16, M12 x 1.5

1шт.

6

14437685

O-RING,9.30mm ID x 2.40mm

1шт.

7

47123020

PLUG,Hex

13/16"-16

1шт.

8

47134015

HYD TUBE

13/16"-16

1шт.

9

47130615

HYD TUBE

13/16"-16

1шт.

10

14457081

O-RING,12.37mm ID x 2.62mm

1шт.

11

47131972

ADAPTER

1шт.
