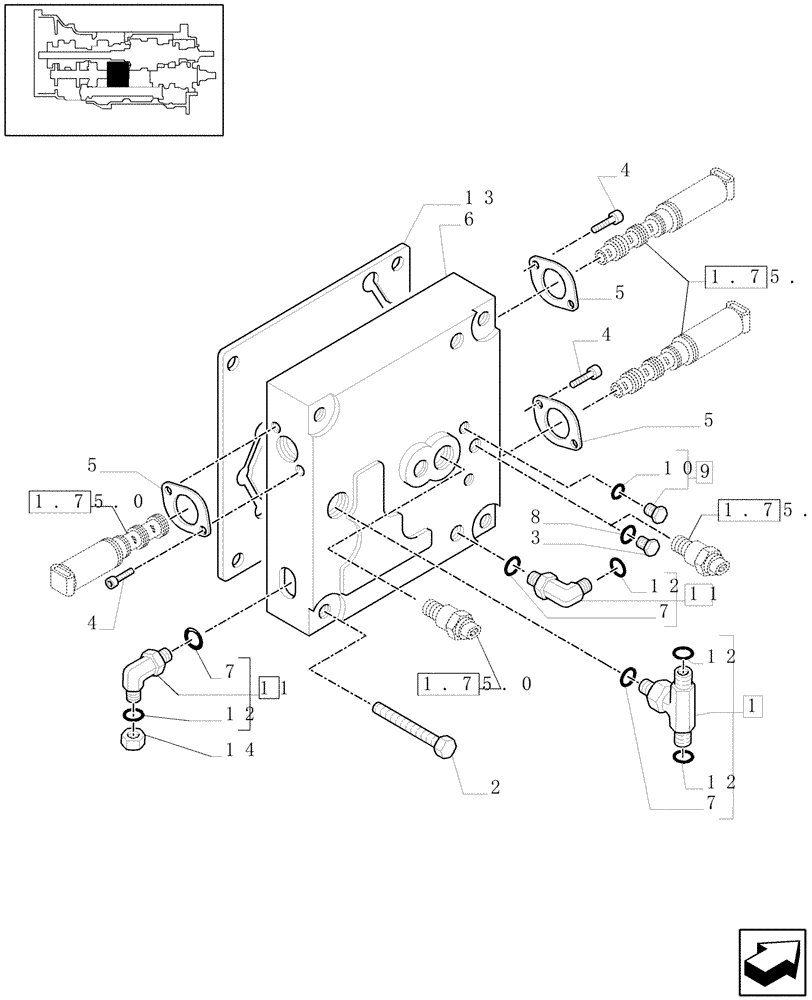

Запчасти Case IH MAXXUM 110 (1.27.4) - TRANSMISSION 24X24 HI-LO - HI-LO ENGAGEMENT CONTROL VALVE (STD + VAR.330282) (03) - TRANSMISSION

1

87303364

TEE

13/16"-16, M18 x 1.5

1шт.

2

11288024

BOLT,Hex, M10 x 1.25 x 60mm, Cl 8.8

5шт.

3

83911570

HEX SOCKET PLUG,9/16"-18

1шт.

4

14305124

HEX SOC SCREW,M6 x 12mm, Cl 8.8, Full Thd

6шт.

5

5194826

BRACKET

3шт.

6

5197921

BODY

1шт.

7

14437985

O-RING,15.3mm ID x 2.4mm

4шт.

8

81845037

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

9

82857995

PLUG,7/16" - 20 ORB

2шт.

10

82857994

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.

11

5185052

90 ELBOW,13/16"-16 x M18 x 1.5

M18 x 1.5, 13/16"-16

3шт.

12

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

M12.42 ID x 1.78 Thk

5шт.

13

47136108

GASKET

1шт.

14

47123020

PLUG,Hex

1шт.
