Запчасти Case IH MAXXUM 110 (1.27.2[01]) - TRANSMISSION 24X24 HI-LO - CLUTCHES (STD + VAR.330282) (03) - TRANSMISSION

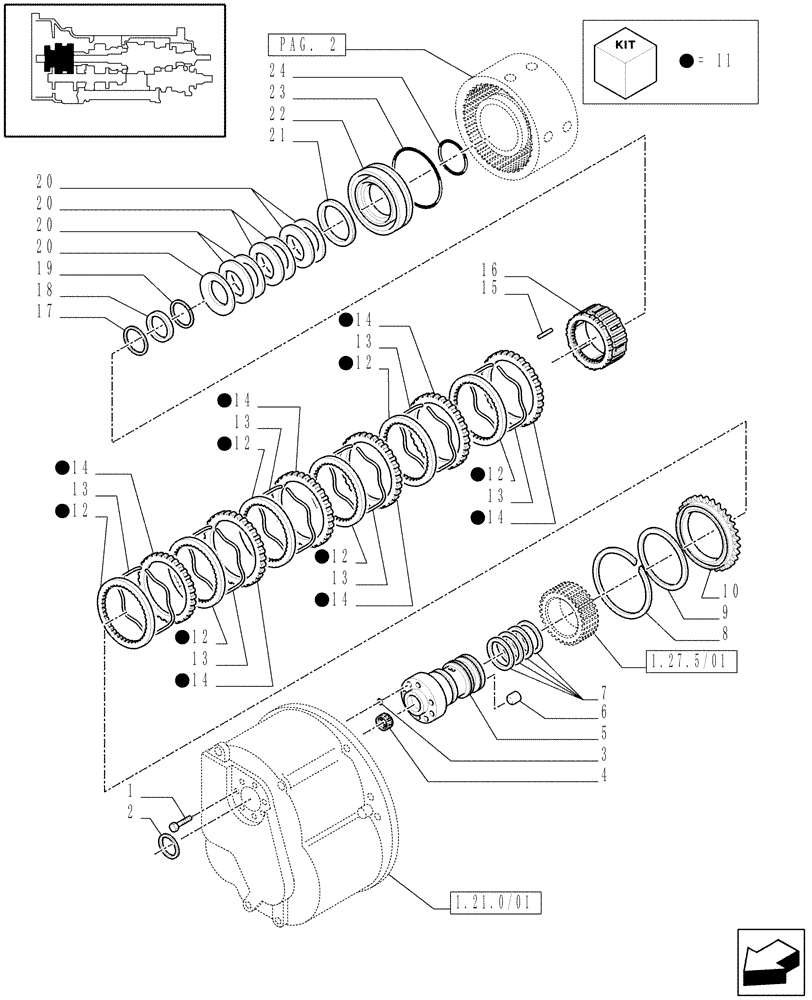

Схема запчастей Case IH MAXXUM 110 - (1.27.2[01]) - TRANSMISSION 24X24 HI-LO - CLUTCHES (STD + VAR.330282) (03) - TRANSMISSION
11
5
14
11
18
4
2
13
20
24
6
11
1
21
13
20
12
12
11
11
13
14
15
14
12
22
19
13
12
11
9
1.21.0/01
1.27.5/01
pag. 2
14
11
23
11
14
11
8
11
13
17
20
11
12
10
16
12
3
14
7
11
13
11
20

Артикул

Название

Примечание

Количество

1

10902824

BOLT,Hex, M6 x 30mm, Cl 8.8

7шт.

2

81864243

SEAL

1шт.

3

83416158

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

7шт.

4

81879030

BEARING ASSY,36mm ID x 42mm OD x 16mm W

1шт.

5

5194767

SUPPORT

1шт.

6

81872032

PLUG

1шт.

7

82009301

OIL SEAL,Split, 56.69mm ID x 62.65mm OD x 2.3mm Thk

4шт.

8

5194760

SNAP RING,163mm ID

1шт.

9

81865152

SEAL,107.72mm ID x 116.32mm OD x 3.8mm Thk

1шт.

10

87325224

PLATE,Z66, 117mm ID

1шт.

11

87325220

CLUTCH PACK

ASSY

1шт.

12

87310594

CLUTCH PLATE,114.72mm ID x 154.4mm OD x 2.3mm Thk

6шт.

13

81878948

SPRING,162.58mm ID

6шт.

14

87325221

CLUTCH DISC,119.60mm ID x 167.50mm OD x 2mm Thk

CLUTCH DISK 2.00MM Thick

6шт.

14

87325222

CLUTCH DISC,119.60mm ID x 167.50mm OD x 2.20mm Thk

CLUTCH DISK 2.20MM Thick

6шт.

15

87325225

PIN,2.5mm OD x 30.5mm L

1шт.

16

5195745

GEAR,62T Internal / 63T External

1шт.

17

81863706

THRUST WASHER,72.3mm ID x 96mm OD x 2mm Thk

1шт.

18

47137712

SNAP RING,70.2mm ID x 76mm OD x 1.5mm Thk

1шт.

19

47137711

CIRCLIP,72.2mm ID x 85mm OD x 2.8mm Thk

1шт.

20

5194761

SPRING,73mm ID x 93mm OD x 3.7mm Thk

7шт.

21

47137663

PISTON RING,77mm ID x 97mm OD x 2.5mm Thk

1шт.

22

87325223

PISTON

1шт.

23

5137563

GASKET,124.55mm ID x 132mm OD x 3.2mm Thk

D=132 x 3.2

1шт.

24

5162398

SEALING RING,82.55mm ID x 90mm OD x 3.2mm Thk

SEALRING

1шт.

Выбрано товаров: 25
