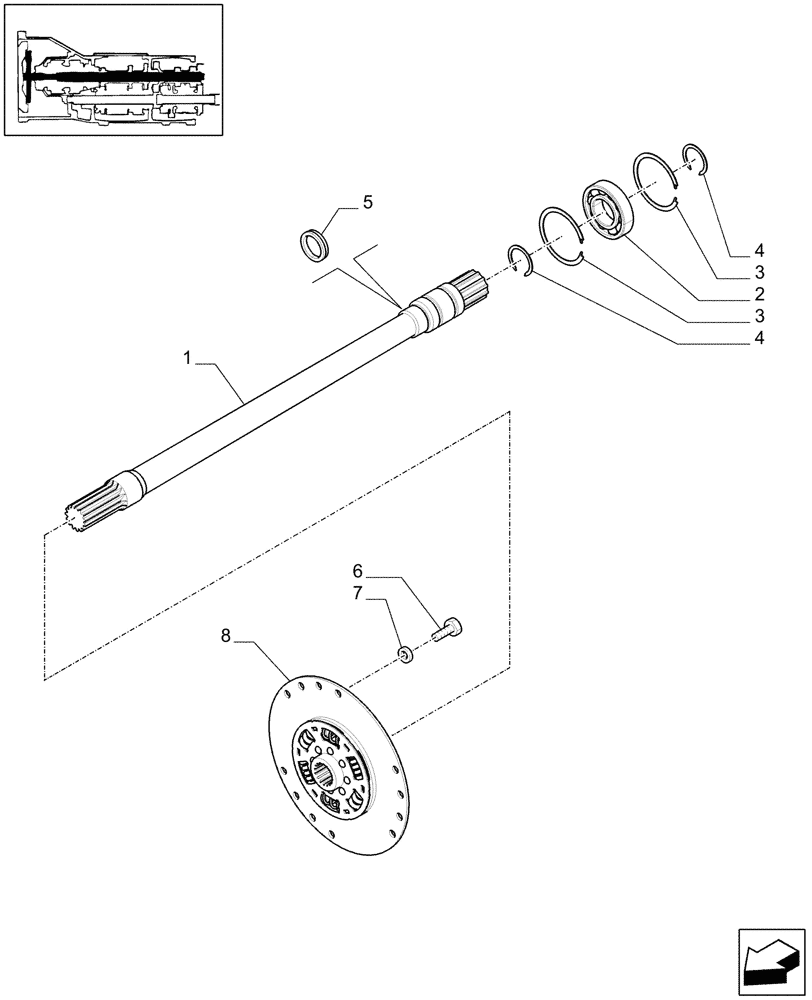

Запчасти Case IH MAXXUM 110 (1.25.3/03) - TRANSMISSION 24X24 - TORSIONAL DAMPER AND INPUT SHAFT (STD + VAR.330282-331245) (03) - TRANSMISSION

1

47134578

SHAFT

1шт.

2

81875518

BEARING ASSY,35mm ID x 72mm OD x 17mm W

1шт.

3

81801973

SNAP RING,3.03" OD

2шт.

4

81805006

CIRCLIP

2шт.

5

81864773

SEAL,M26.92 ID x 4.83/7.62 Thk

1шт.

6

16204230

BOLT,Hex, M10 x 1.25 x 20mm, Cl 10.9

6шт.

7

11198374

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.6mm Thk

6шт.

8

5196061

DAMPER,262.5mm OD

1шт.

8

5196061R

REMAN-CLUTCH ASSY

1шт.

8

5196061C

CORE-CLUTCH ASSEMBLY

Return Number

1шт.
