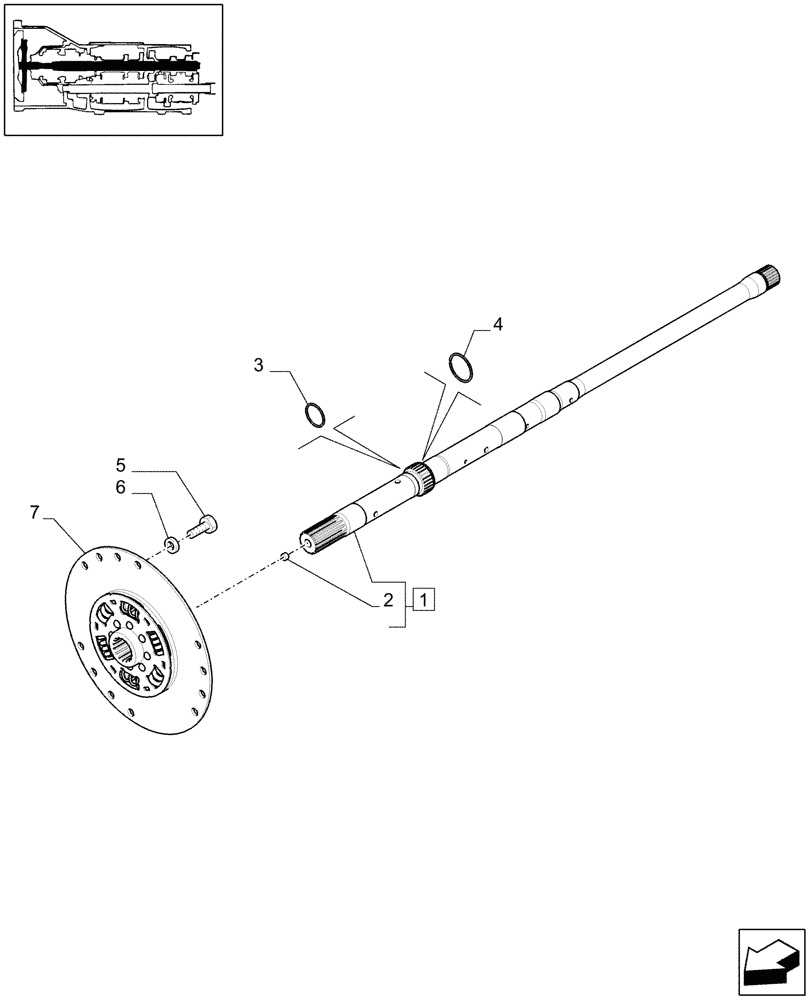

Запчасти Case IH MAXXUM 110 (1.25.3/02) - TRANSMISSION 16X16 - TORSIONAL DAMPER AND INPUT SHAFT (STD + VAR.330283-331245-332245) (03) - TRANSMISSION

1

47126898

SHAFT

ASSY

1шт.

16x16 or 17x16 Semi Power Shift, VAR.330283

1шт.

2

81863712

PLUG

1шт.

16x16 or 17x16 Semi Power Shift, VAR.330283

1шт.

3

81867117

SEAL,32mm ID x 36.60mm OD x 1.60mm Thk

1шт.

16x16 or 17x16 Semi Power Shift, VAR.330283

1шт.

4

5196019

SNAP RING,1.5mm Thk, Ext

1шт.

16x16 or 17x16 Semi Power Shift, VAR.330283

1шт.

5

16204230

BOLT,Hex, M10 x 1.25 x 20mm, Cl 10.9

6шт.

30 kph and 40 kph, STD Equipment and VAR.331245-332245

1шт.

6

11198374

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.6mm Thk

6шт.

30 kph and 40 kph, STD Equipment and VAR.331245-332245

1шт.

7

5196061

DAMPER,262.5mm OD

1шт.

30 kph and 40 kph, STD Equipment and VAR.331245-332245

1шт.

7

5196061R

REMAN-CLUTCH ASSY

1шт.

7

5196061C

CORE-CLUTCH ASSEMBLY

Return Number

1шт.
