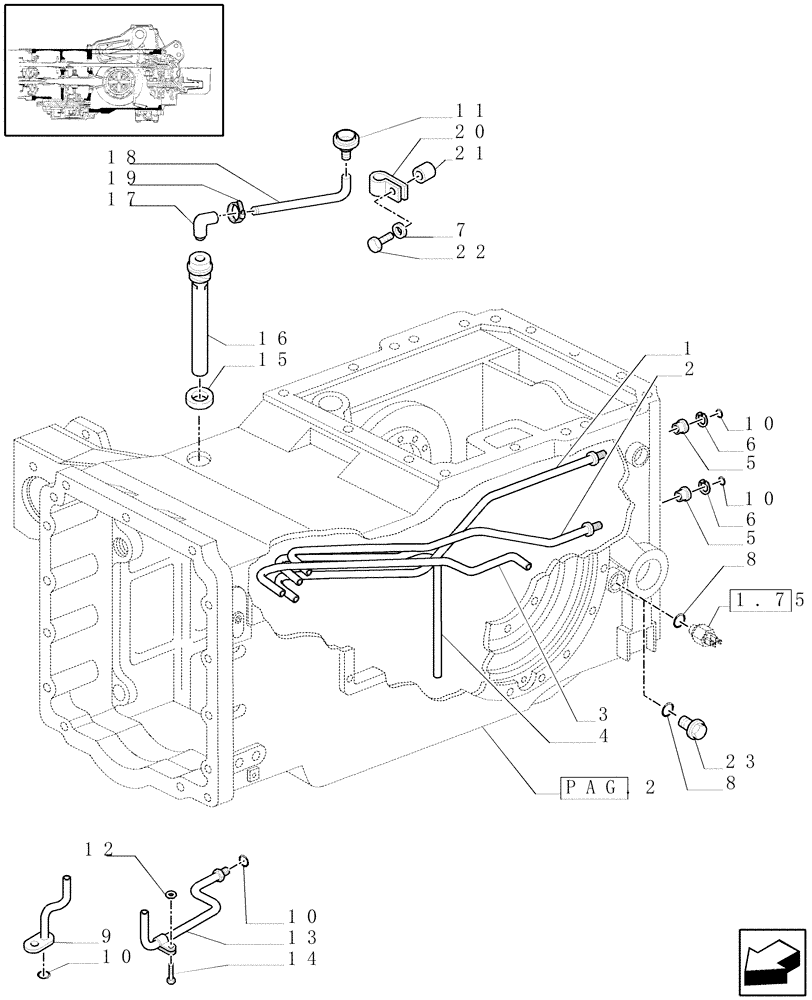

Запчасти Case IH MAXXUM 110 (1.21.0/01[03]) - TRANSMISSION 24X24 (40KM/H) - REAR AXLE HOUSING, INNER PIPES AND BREATHERS (03) - TRANSMISSION

1

5193856

TUBE

Supply P.T.O. Clutch

1шт.

2

5196279

TUBE

Brake P.T.O.

1шт.

3

5197048

TUBE

Diff. Lock

1шт.

4

5198214

HYD TUBE

4WD, Hdr. Clutch

1шт.

5

5186628

BUSHING,16mm ID x 22mm OD x 14mm L

2шт.

6

300625

SNAP RING,M16, Ext

2шт.

7

83931520

WASHER,8.4mm ID x 17mm OD x 2mm Thk

1шт.

8

10279760

SEALING WASHER,14.2mm ID x 20mm OD x 0.5mm Thk

1шт.

8

10280060

SEAL,M14.2 x 20 x 1.5

1шт.

9

5193109

TUBE

Lift Oil Discharge

1шт.

9

47135779

TUBE

VAR.330908-331908-330909-331909

1шт.

10

14453181

O-RING,0.489" ID x 0.07" Width

4шт.

11

83925022

BREATHER,.375-18 NPT

1шт.

12

11190774

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 2.8mm Thk

1шт.

13

47136932

TUBE

1шт.

14

15970424

SCREW,Hex, M10 x 1.25 x 18mm, Cl 8.8, Full Thd

1шт.

14

15540124

SCREW,Hex, M12 x 1.25 x 18mm, Cl 8.8, Full Thd

1шт.

15

10262160

SEAL,M28.4 x 34 x 2, Copper

1шт.

16

47133085

BREATHER

1шт.

17

47134073

PIPE

1шт.

18

82012599

FUEL HOSE,15.9mm ID x 800mm L

1шт.

19

82000599

CLAMP,22mm - 26mm

1шт.

20

87302117

CLAMP,18.5mm ID, 9mm Bolt Hole, P Type

1шт.

21

13611211

SPACER,8.5mm ID x 15mm OD x 23mm L

1шт.

22

16044021

SCREW,Hex, M8 x 1.25 x 40mm, Cl 8.8

1шт.

23

10300611

PLUG,M14 x 1.5 x 14, Cl5.8

1шт.

Wet Differential, VAR.331333-332333

1шт.
