Запчасти Case IH MAXXUM 110 (1.21.0/01[02]) - TRANSMISSION 24X24 (40KM/H) - REAR AXLE HOUSING, COVERS AND RELATED PARTS (03) - TRANSMISSION

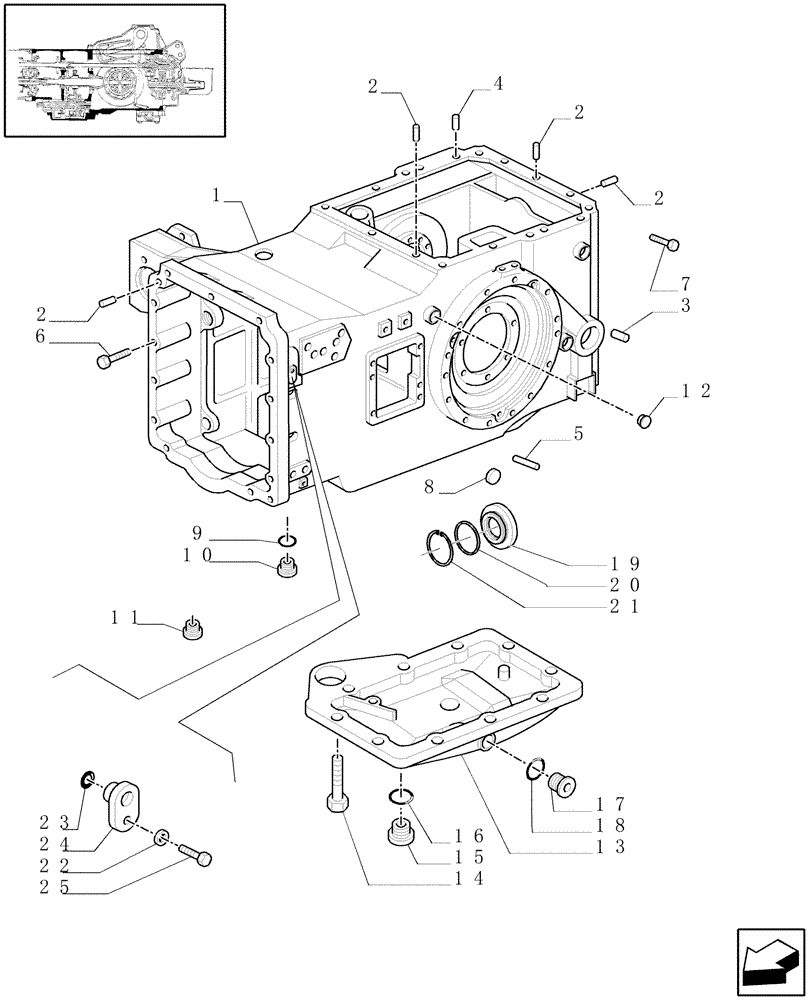

Схема запчастей Case IH MAXXUM 110 - (1.21.0/01[02]) - TRANSMISSION 24X24 (40KM/H) - REAR AXLE HOUSING, COVERS AND RELATED PARTS (03) - TRANSMISSION
11
15
3
2
5
4
14
23
13
18
25
16
10
12
2
22
24
20
2
21
17
7
9
19
8
2
1
6

Артикул

Название

Примечание

Количество

1

47125367

TRANSMISSION HOUSING

, Serial Range: -C5851

1шт.

1

87574045

TRANSMISSION HOUSING

, Start Serial: D5851

1шт.

2

4985062

DOWEL,15mm OD x 25mm L

M15 x 25

6шт.

3

5110200

DOWEL,12mm OD x 25mm L

M12 x 25

10шт.

4

14326001

PLUG,Hex Skt, M10 x 1.25 x 11mm, Cl 4.8

1шт.

5

10839710

DOWEL,M10 x 15.00mm

M10 x 15

2шт.

6

11394331

BOLT,Hex, M14 x 1.5 x 45, 8.8, Full Thd

8шт.

7

11422030

BOLT,Hex, M14 x 1.5 x 55, 10.9

5шт.

8

14328201

PLUG,M10, Tapered

1шт.

9

14437685

O-RING,9.30mm ID x 2.40mm

1шт.

10

10118611

PLUG,M12 x 1.5 x 15.00mm, Cl 5.8

1шт.

11

5193112

BUSHING

1шт.

12

14328701

PLUG,M20, Tapered

1шт.

13

47129404

COVER

1шт.

14

11306924

BOLT,Hex, M10 x 1.25 x 30, 8.8, Full Thd

8шт.

14

15888824

BOLT,Hex, M10 x 1.25 x 70mm, Cl 8.8

2шт.

15

10119511

PLUG,M33 x 2 x 16, Cl5.8

1шт.

16

14438285

O-RING,29.5mm ID x 3.0mm

1шт.

17

5185747

PLUG,1"13/16-12

1шт.

18

81903721

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

19

5195796

PLUG

2 WD

1шт.

VAR.330405-332405

1шт.

20

14465380

O-RING,0.139" Thk x 3.109" ID, -235, Cl 5, 75 Duro

2 WD

1шт.

VAR.330405-332405

1шт.

21

11061976

SNAP RING,M80, Int

2 WD

1шт.

VAR.330405-332405

1шт.

22

12601278

LOCK WASHER

1шт.

23

47136259

O-RING,3mm Thk x 17.2mm ID, 72 Duro

1шт.

24

87307348

PLUG,18mm ID

1шт.

25

14305724

HEX SOC SCREW,M6 x 14mm, Cl 8.8, Full Thd

1шт.

Выбрано товаров: 30
