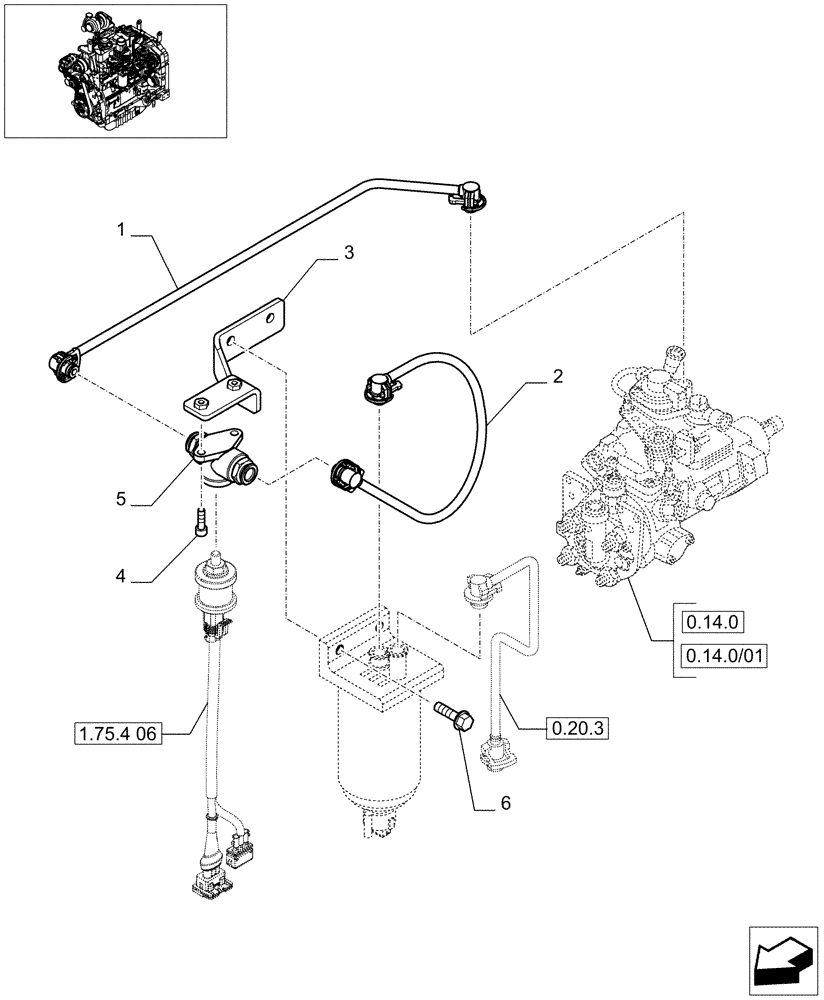

Запчасти Case IH MAXXUM 110 (0.20.3/02) - PIPING FUEL (STD + VAR.330003-332115-332116) (01) - ENGINE

1

47599443

FUEL TUBE

4 Cyl

1шт.

2

47598443

FUEL TUBE

1шт.

3

47589097

BRACKET

1шт.

4

14305320

HEX SOC SCREW,M6 x 20mm, Cl 8.8, Full Thd

2шт.

5

84226849

3 WAY CONNECTION

1шт.

6

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

2шт.
