Запчасти Case IH MAXXUM 110 (0.08.3/02) - FLYWHEEL ENGINE - TRANSMISSION 16X16 & 17X16 (VAR.330003-330159-330247-330291-331248-332115-332116) (01) - ENGINE

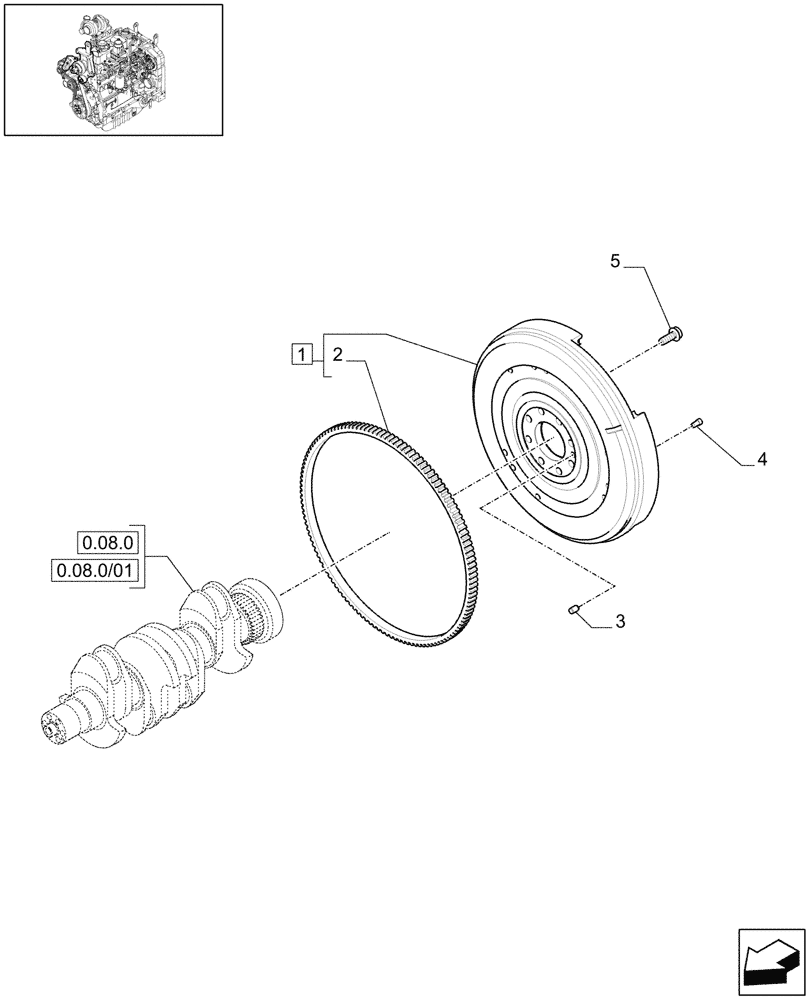

Схема запчастей Case IH MAXXUM 110 - (0.08.3/02) - FLYWHEEL ENGINE - TRANSMISSION 16X16 & 17X16 (VAR.330003-330159-330247-330291-331248-332115-332116) (01) - ENGINE
0.08.0/01
1
5
3
4
2
0.08.0

Артикул

Название

Примечание

Количество

1

87538689

FLYWHEEL

ASSY

1шт.

Valid for STD Equipment Engine and Tier 3 Flexibility Engine, VAR.332115-332116 and Tier 3 European Engine Stock, VAR.330003

1шт.

2

4895353

RING GEAR,127T, 15.88mm L

1шт.

Valid for STD Equipment Engine and Tier 3 Flexibility Engine, VAR.332115-332116 and Tier 3 European Engine Stock, VAR.330003

1шт.

3

4892925

DOWEL,M10 X 15mm

1шт.

Valid for STD Equipment Engine and Tier 3 Flexibility Engine, VAR.332115-332116 and Tier 3 European Engine Stock, VAR.330003

1шт.

4

81800705

PIN,M7.893 X 13.97mm

3шт.

Valid for STD Equipment Engine and Tier 3 Flexibility Engine, VAR.332115-332116 and Tier 3 European Engine Stock, VAR.330003

1шт.

5

4894641

CAPTIVE WASHER SCREW,M12 X 1.25 X 31mm

8шт.

Valid for STD Equipment Engine and Tier 3 Flexibility Engine, VAR.332115-332116 and Tier 3 European Engine Stock, VAR.330003

1шт.

Выбрано товаров: 10
