Запчасти Case IH MAXXUM 110 (1.95.5/01[01A]) - HYDROSTATIC STEERING WHEEL AND STEERING COLUMN - D6099 (10) - OPERATORS PLATFORM/CAB

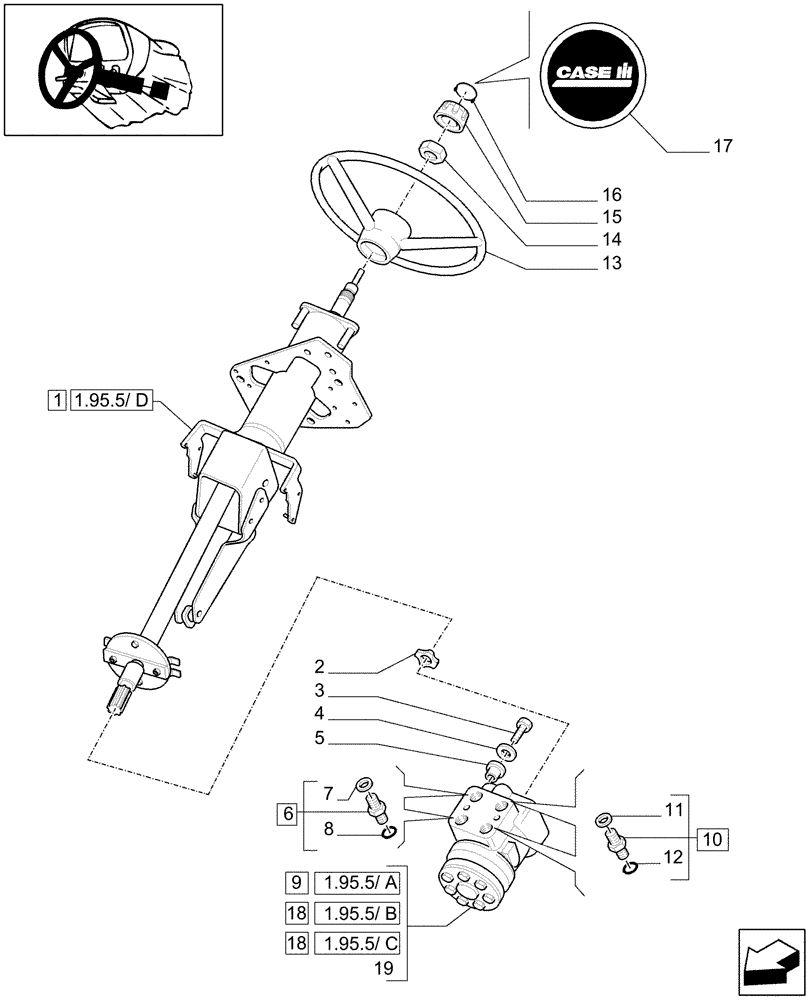

Схема запчастей Case IH MAXXUM 110 - (1.95.5/01[01A]) - HYDROSTATIC STEERING WHEEL AND STEERING COLUMN - D6099 (10) - OPERATORS PLATFORM/CAB
1.95.5/ a
8
15
18
16
17
3
13
9
4
11
7
18
10
14
19
1
2
5
12
6
1.95.5/ d
1.95.5/ b
1.95.5/ c

Артикул

Название

Примечание

Количество

1

87709993

STEERING COLUMN

Tilt and Telescopic, ASSY, Serial Range: -C6545

1шт.

1

87709992

STEERING COLUMN

Tilt Only, ASSY, Serial Range: -C6465

1шт.

for MAX125 Limited L/Cab

1шт.

1

84229206

STEERING COLUMN

Tilt Only, ASSY, Serial Range: D6465-C6553

1шт.

for MAX125 Limited L/Cab

1шт.

1

84229207

STEERING COLUMN

, Serial Range: D6545-C6553

1шт.

1

84255779

STEERING COLUMN,Tilting, Telescoping

Tilt and Telescopic, ASSY, Start Serial: D6553

1шт.

1

84255778

STEERING COLUMN

Tilt Only, ASSY, Start Serial: D6553

1шт.

for MAX125 Limited L/Cab

1шт.

2

81873344

RUBBER INSULATOR

1шт.

3

11106021

BOLT,Hex, M10 x 1.5 x 20 mm, Cl 8.8, Full Thd

4шт.

4

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

4шт.

5

82009429

ISOLATOR

4шт.

6

82016498

HYD CONNECTOR,M22 x 1.5 DIN, 1" - 14 ORFS

2шт.

7

82016732

SEAL,19.6mm ID x 24.3mm OD x 1.5mm Thk

2шт.

8

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

9

47137781

HYDRAULIC STEERING

2WD, Serial Range: -C6769

1шт.

9

47137771

HYDRAULIC STEERING

2WD, Serial Range: -C6769

1шт.

W/Heavy Duty Front Axle

1шт.

10

82016499

HYD CONNECTOR,11/16"-16 x M18 x 1.5

2шт.

11

83999938

SEAL,15.7mm ID x 20.9mm OD x 1.5mm Thk

2шт.

12

81844851

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

13

9821708

STEERING WHEEL

1шт.

14

10726611

THIN NUT,Thin, M18, 1.5mm Pitch, Cl 04, ZND

1шт.

15

87302160

KNOB

1шт.

16

87302798

CAP,54mm OD, Black

1шт.

17

86401707

EMBLEM

1шт.

18

82001471

HYDRAULIC STEERING

4WD, Serial Range: -C6477

1шт.

18

82001471R

REMAN-HYD VALVE

Reman for New PN 82001471

1шт.

18

82001471C

CORE-VALVE HYD

Return Number

1шт.

18

84198317

HYDRAULIC STEERING

, Start Serial: D6477

1шт.

With CL.3 4WD Front Axle

1шт.

18

84198243

HYDRAULIC STEERING

, Start Serial: D6477

1шт.

With CL.4 4WD Front Axle, MAXXUM 115, MAXXUM 125, MAXXUM 140 Models

1шт.

18

84198243R

REMAN-STEERING VALVE

MAXXUM 100, MAXXUM 110, MAXXUM 115, MAXXUM 120, MAXXUM 125, MAXXUM 130, MAXXUM 140, All TRACTOR, Start Serial: D6477 (1/07-)

1шт.

18

84198243C

CORE-STEERING VALVE

Return Number

1шт.

19

84266840

HYDRAULIC STEERING

2WD, Start Serial: D6769

1шт.

19

84266839

HYDRAULIC STEERING

2WD, Start Serial: D6769

1шт.

W/Heavy Duty Front Axle

1шт.

Выбрано товаров: 39
