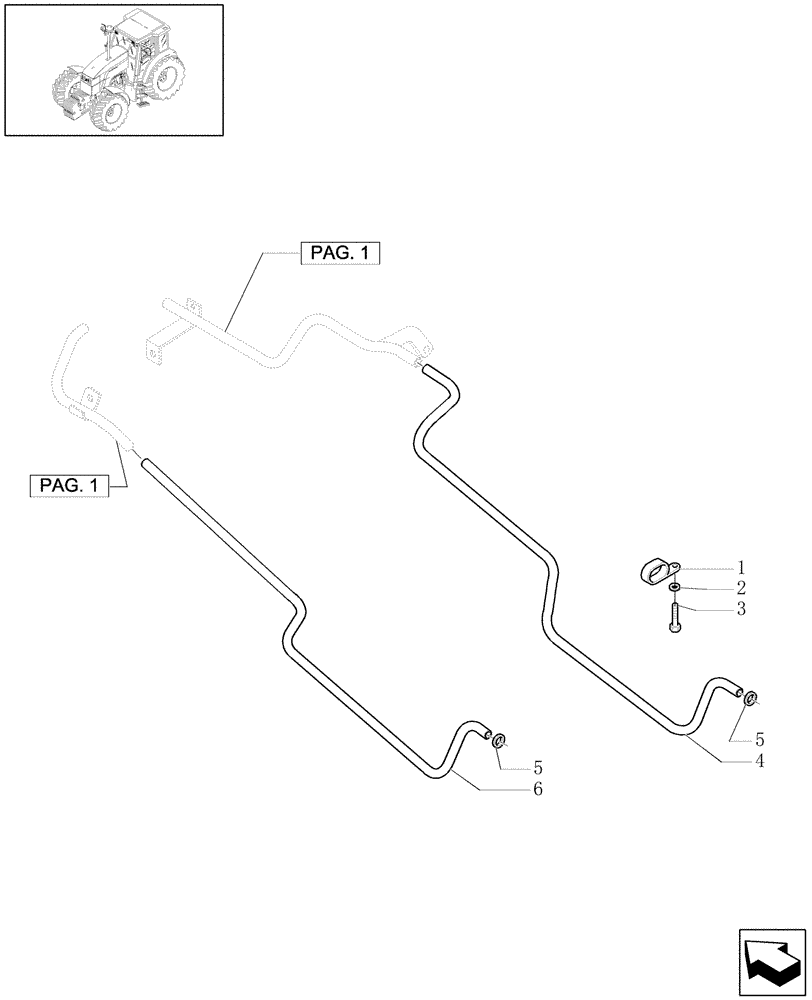

Запчасти Case IH MAXXUM 110 (1.94.3/03[02]) - AIR CONDITIONING (VAR.330641) (10) - OPERATORS PLATFORM/CAB

1

82023568

CLAMP,2 Hoses

1шт.

2

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

2шт.

3

82880748

SCREW,Pozidrive, Pan HD, M6 x 2 x 14mm, Cl 4.8

M6 x 2 x 14

2шт.

4

82033002

HOSE

Return, Serial Range: -C5676

1шт.

4

87621496

A/C HOSE,15.25 mm ID x 1063.00 mm

Return, Start Serial: D5676

1шт.

5

82019905

HOSE CLAMP,22 - 26mm X 12mm

2шт.

6

82033001

HOSE

Feed, Serial Range: -C5676

1шт.

6

87621492

A/C HOSE,15.25 mm ID x 1030.00 mm

, Start Serial: D5676

1шт.
