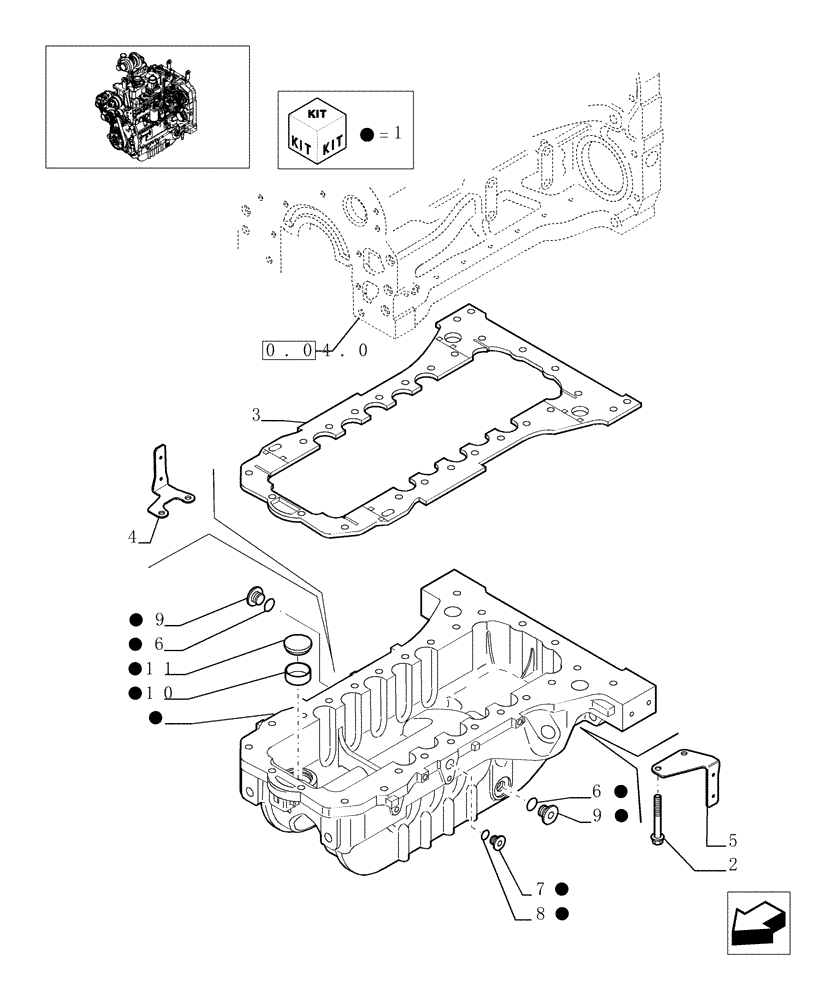

Запчасти Case IH MAXXUM 110 (0.04.2) - OIL SUMP (STD + VAR.330003-332115-332116) (01) - ENGINE

1

2853793

ENGINE OIL PAN

1шт.

2

4895339

SCREW,Hex Flange Head Cap, M8 x 20

2шт.

2

4892753

SCREW,7/16" - 18

18шт.

2

4895743

BOLT

4шт.

2

4892742

BOLT,Flng, M10 x 1.5 x 190mm, Cl 10.9

2шт.

3

4894295

OIL PAN GASKET SET

1шт.

4

2853794

BRACKET

1шт.

5

2853520

BRACKET

1шт.

6

5135740

O-RING,0.924" ID x 1.13" OD x 0.103"

2шт.

7

10273140

PLUG,Hex Skt, M18 x 1.5

1шт.

8

5167640

SEALING WASHER,14.09mm ID x 26.45mm OD x 1.5mm Thk

18x26x1.5

1шт.

9

4894139

PLUG,Hex Soc, M22 x 1.5

2шт.

10

4895935

FILTER SCREEN

1шт.

11

4895936

PLUG

1шт.
