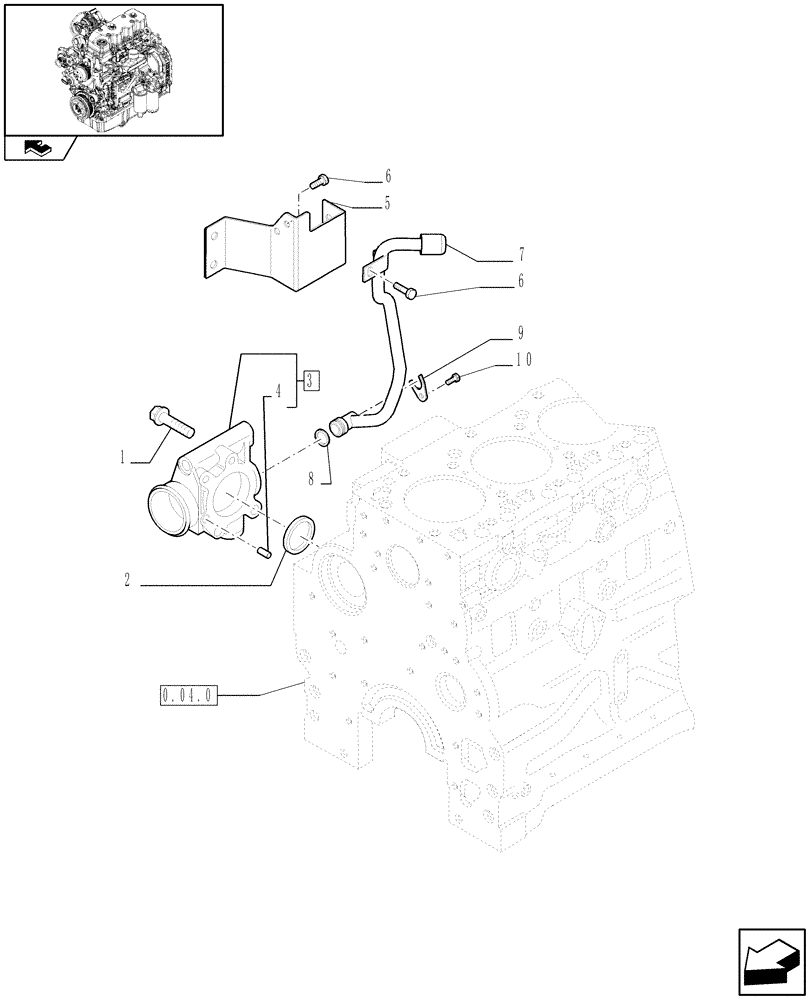

Запчасти Case IH MAXXUM 110 (0.32.3) - ENGINE COOLING SYSTEM PIPING (STD + VAR.330003-332115) (01) - ENGINE

1

4895174

SCREW,Flg Hd, M10 x 1.5 x 65

3шт.

2

2854072

SEALING RING,Square, 5.16mm Thk x 50.17mm ID

1шт.

3

2831186

SUPPORT

ASSY

1шт.

4

2830894

DOWEL,.25" OD x .625" L

2шт.

5

2853561

BRACKET

1шт.

6

2852100

FLANGE BOLT,Hex, M8 x 1.25 x 16mm

4шт.

7

2853999

PIPE ASSY.

1шт.

8

2853563

O-RING,20.29mm ID x 2.62mm

1шт.

9

2853564

BRACKET

1шт.

10

2854000

SELF-TAP SCREW,Hex, M6 x 16mm

1шт.
