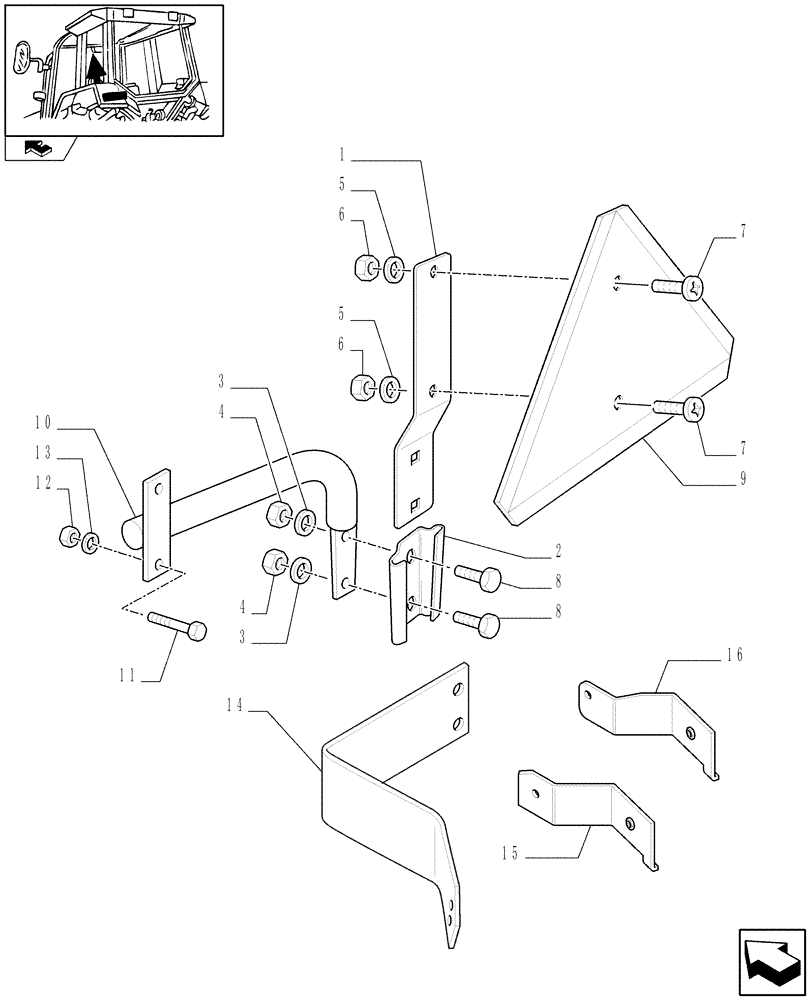

Запчасти Case IH MAXXUM 110 (1.99.3) - SLOW MOVING VEHICLE SIGN (VAR.330712-331712) (10) - OPERATORS PLATFORM/CAB

1

81864740

BRACKET

1шт.

2

5148517

SUPPORT

1шт.

3

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

4шт.

4

16100821

NUT,M8, Cl 10

2шт.

5

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

6

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

2шт.

7

13276211

SCREW,Pozidriv Pan Hd, M6 x 16mm, Cl 5.8, Full Thd

2шт.

8

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

3шт.

8

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

9

82034583

WARNING TRIANGLE

1шт.

10

82025112

BRACKET

1шт.

Low Mounted Slow Moving Vehicle Sign, VAR.330712

1шт.

11

10902624

SCREW,Hex, M6 x 25mm, Cl 8.8, Full Thd

2шт.

12

12574211

NUT,M6 x 1, Cl 8

2шт.

13

14496404

WASHER,M6 x 12 x 2 Thk

2шт.

14

87358604

BRACKET

1шт.

High Mounted Slow Moving Vehicle Sign, VAR.331712

1шт.

15

84273264

BRACKET

, Serial Range: -C7019

1шт.

16

84388390

BRACKET

, Start Serial: D7019

1шт.
