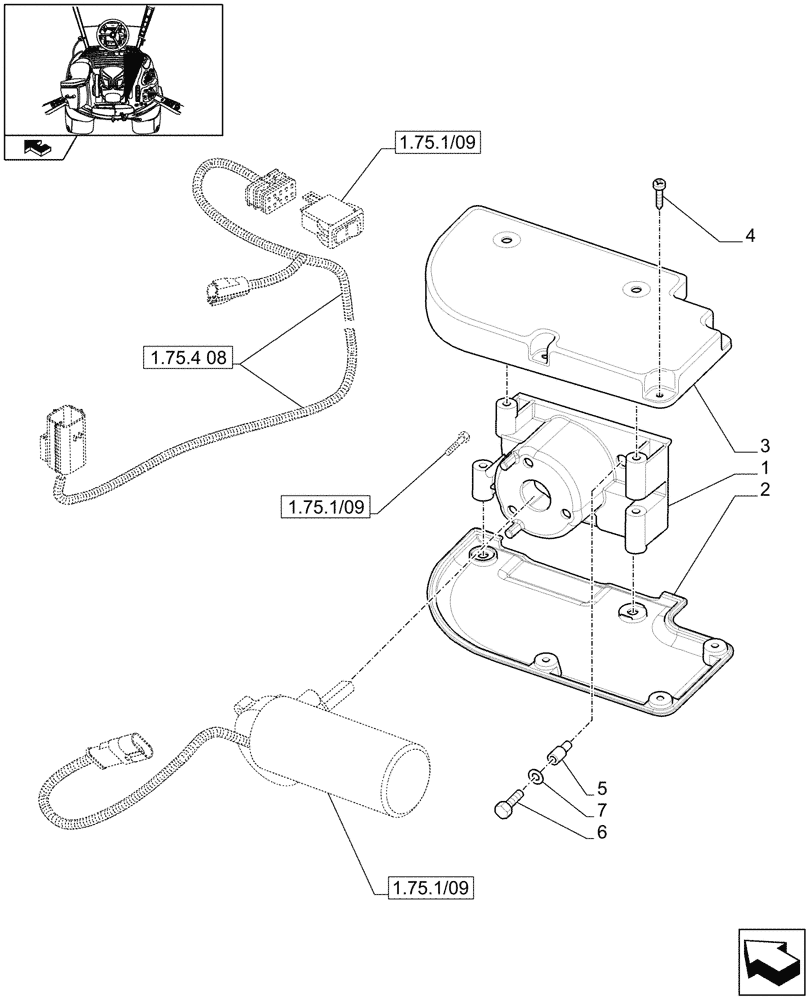

Запчасти Case IH MAXXUM 110 (1.97.0/01) - ELECTRICAL ARMREST ADJUSTMENT - COVERS AND SUPPORT (VAR.330019) (10) - OPERATORS PLATFORM/CAB

1

84201758

HOLDER

1шт.

2

84201783

SHELL

1шт.

3

84201762

SHELL

1шт.

4

15903977

SELF-TAP SCREW,Pan Head, M4.8 x 1.6 x 19mm

7шт.

5

15624411

RIVET,Flat, M6 OD x 16mm L

2шт.

6

86531615

HEX SOC SCREW,M6 x 20mm, Cl 8.8

2шт.

7

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

2шт.
