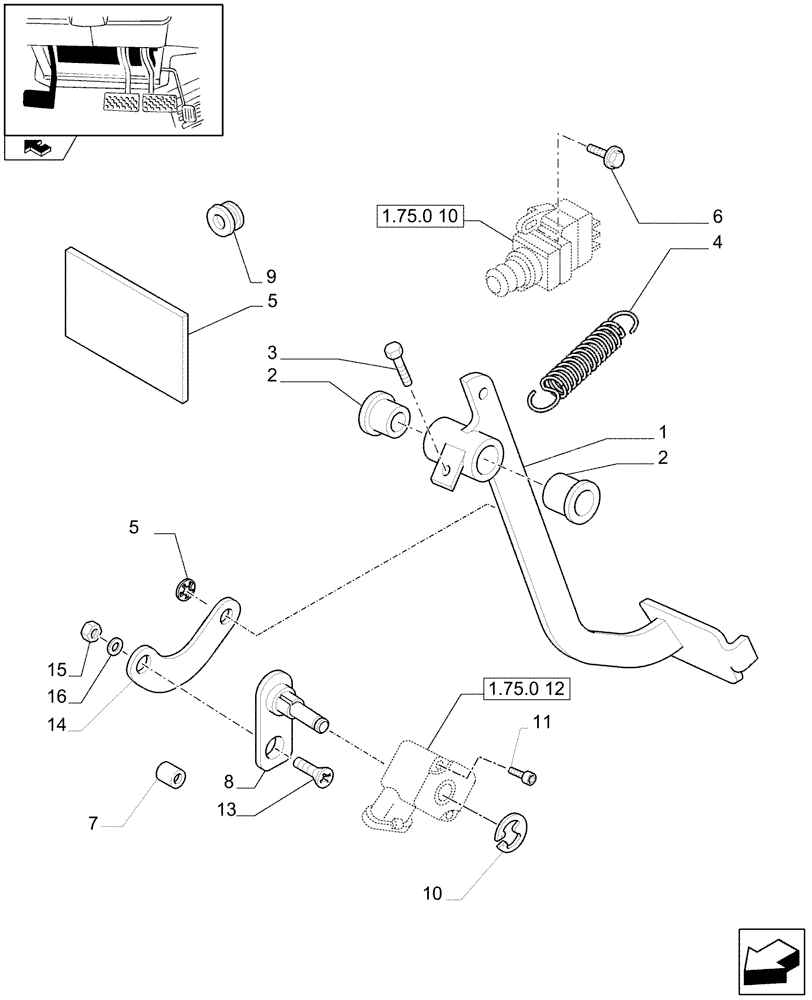

Запчасти Case IH MAXXUM 110 (1.95.2[01A]) - CLUTCH PEDAL - D7152 (10) - OPERATORS PLATFORM/CAB

1

87566902

PEDAL

Incl.2, 3

1шт.

2

5155548

BUSHING,25mm ID x 31.05mm OD x 32mm L

2шт.

3

14420271

HEX SOC SCREW,M10 x 1.5 x 30mm, Cl 12.9, Full Thd

1шт.

4

84561533

SPRING,22.5mm OD x 99mm L

1шт.

5

82004409

DECAL

Decal Hole Blanking

3шт.

6

82880745

SCREW,Phillips Drive, Pan HD, M4 x 16mm, Cl 4.8

2шт.

7

84487411

SPACER,6mm ID x 10mm OD x 4.4mm L

1шт.

8

84482499

SHAFT,8mm OD x 42mm L

1шт.

9

81862738

PLUG,M38 x 28 x 5mm

28MM

2шт.

10

11087876

CIRCLIP,M7

1шт.

11

84224890

BOLT,Hex, M5 x 30mm, Cl 8.8

2шт.

12

87356376

PUSH-ON NUT

1шт.

13

14441421

SCREW,Flat Csk Hd, M6 x 20mm, Cl 8.8

1шт.

14

84482495

LINK

1шт.

15

12574221

NUT,M6 x 1, Cl 10

1шт.

16

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

1шт.
