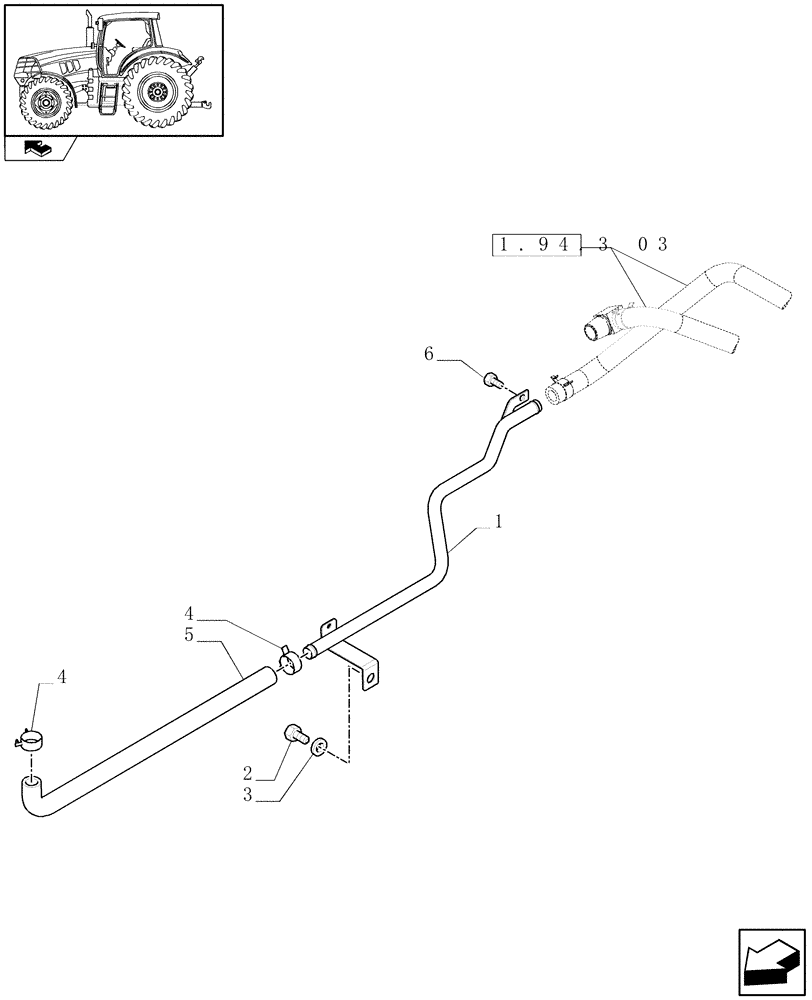

Запчасти Case IH MAXXUM 110 (1.94.3[04]) - AIR CONDITIONING SYSTEM PIPES (10) - OPERATORS PLATFORM/CAB

1

87305404

TUBE

1шт.

2

10902221

BOLT,Hex, M6 x 16mm, CL 8.8

2шт.

2

11112124

SCREW,Hex, M12 x 20mm, Cl 8.8, Full Thd

1шт.

3

14496701

WASHER,13.00mm ID x 24.00mm OD x 2.50mm, CST, ZND

1шт.

3

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

4шт.

4

82019905

HOSE CLAMP,22 - 26mm X 12mm

2шт.

5

82029249

RADIATOR HOSE,15.25 mm ID x 485.00 mm

1шт.

6

82025437

BOLT,Hex, M14 x 2 x 25mm, Cl 8.8

1шт.
