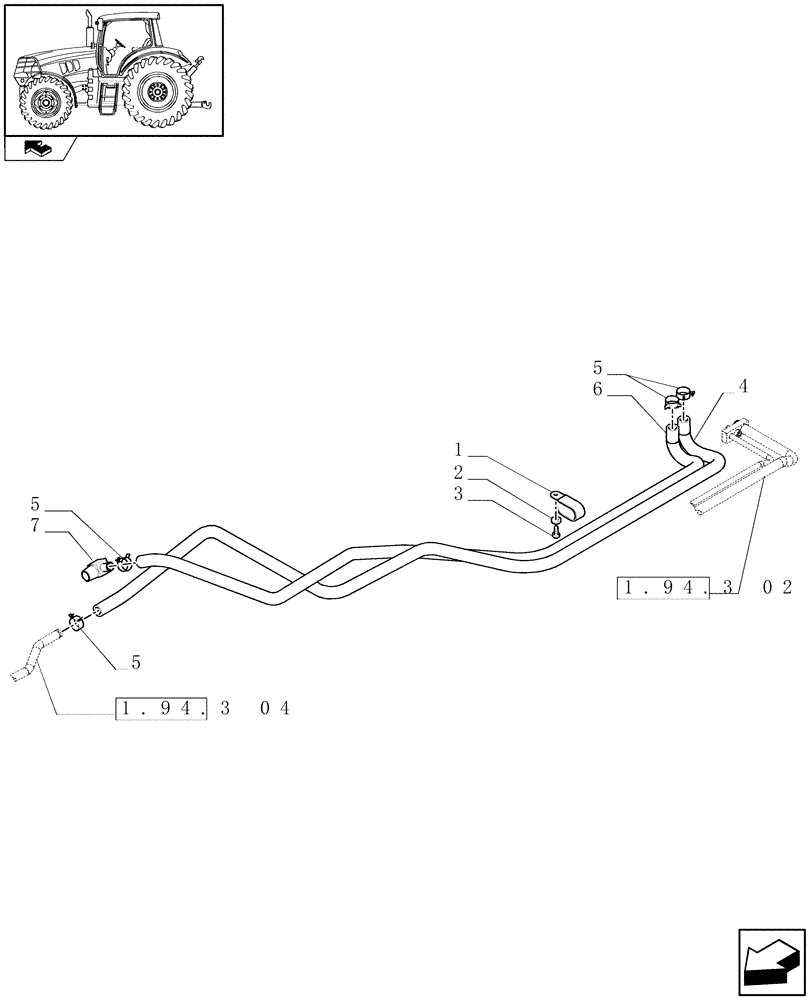

Запчасти Case IH MAXXUM 110 (1.94.3[03]) - AIR CONDITIONING SYSTEM PIPES (10) - OPERATORS PLATFORM/CAB

1

82023568

CLAMP,2 Hoses

1шт.

2

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

1шт.

3

82880748

SCREW,Pozidrive, Pan HD, M6 x 2 x 14mm, Cl 4.8

Pan Hd, M6 x 2 x 14

1шт.

4

87621496

A/C HOSE,15.25 mm ID x 1063.00 mm

Return

1шт.

5

82019905

HOSE CLAMP,22 - 26mm X 12mm

4шт.

6

87621480

A/C HOSE,15.25 mm ID x 1123.00 mm

Feed

1шт.

7

87302771

ADAPTER

1шт.
