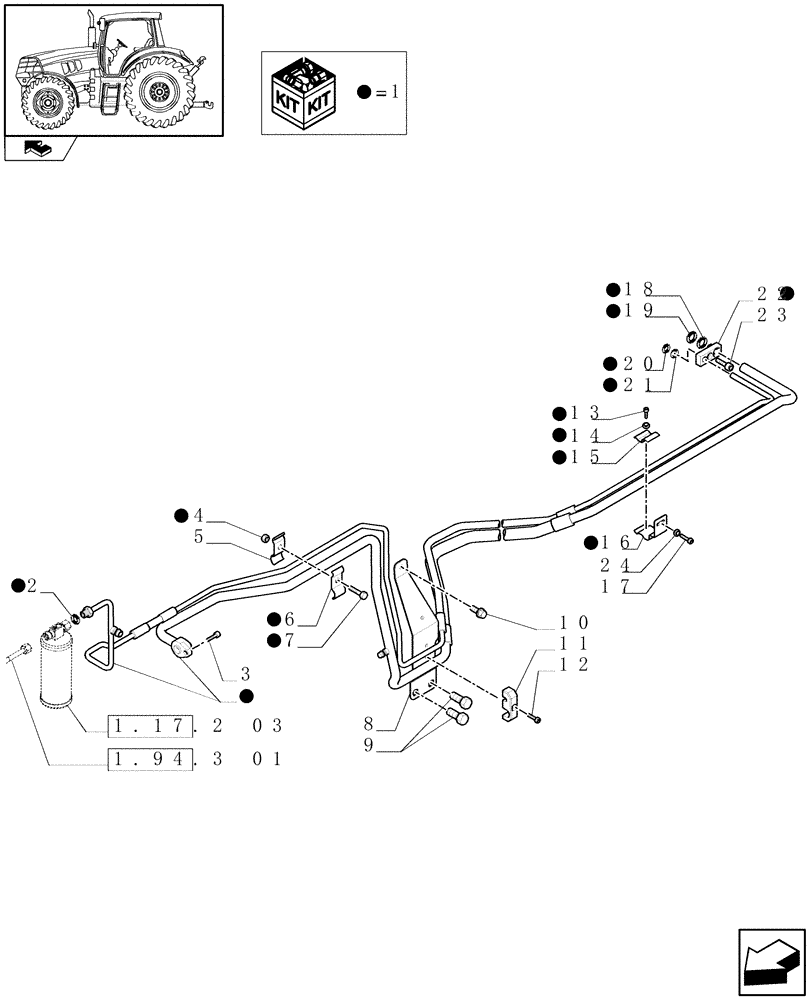

Запчасти Case IH MAXXUM 110 (1.94.3[02]) - AIR CONDITIONING SYSTEM PIPES - C6663 (10) - OPERATORS PLATFORM/CAB

1

87586742

PIPE

1шт.

2

82000793

O-RING,1.78mm Thk x 7.65mm ID, -11, 70 Duro

1шт.

3

14306321

HEX SOC SCREW,M8 x 20mm, Cl 8.8

1шт.

4

82036409

CLAMP BRACKET

1шт.

5

14078010

NUT,Weld, M5

1шт.

6

82033450

CLAMP

1шт.

7

120098

BOLT,Hex, M5 x 20, 8.8, Full Thd

1шт.

8

87395977

BRACKET

1шт.

9

82025437

BOLT,Hex, M14 x 2 x 25mm, Cl 8.8

2шт.

10

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

11

87389699

CLAMP

1шт.

12

81853129

SCREW,Pozidriv Pan Hd, M6 x 16mm, Cl 4.8, Full Thd

1шт.

13

14303021

SCREW,M4 x 12mm, Cl 8.8, Full Thd

1шт.

14

10615279

LOCK WASHER,M4, Serr

1шт.

15

87302953

CLAMP,4.5mm HD

1шт.

16

87496501

BRACKET

1шт.

18

10319983

O-RING,1.6mm Thk x 16.1mm ID

1шт.

19

82007848

O-RING,2.4mm Thk x 13.4mm ID

1шт.

20

82007847

O-RING,1.8mm Thk x 6.7mm ID

1шт.

21

10318883

O-RING,8.1mm ID x 1.6mm Width

1шт.

22

82035724

FITTING

1шт.

23

14306424

HEX SOC SCREW,M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

24

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

1шт.
