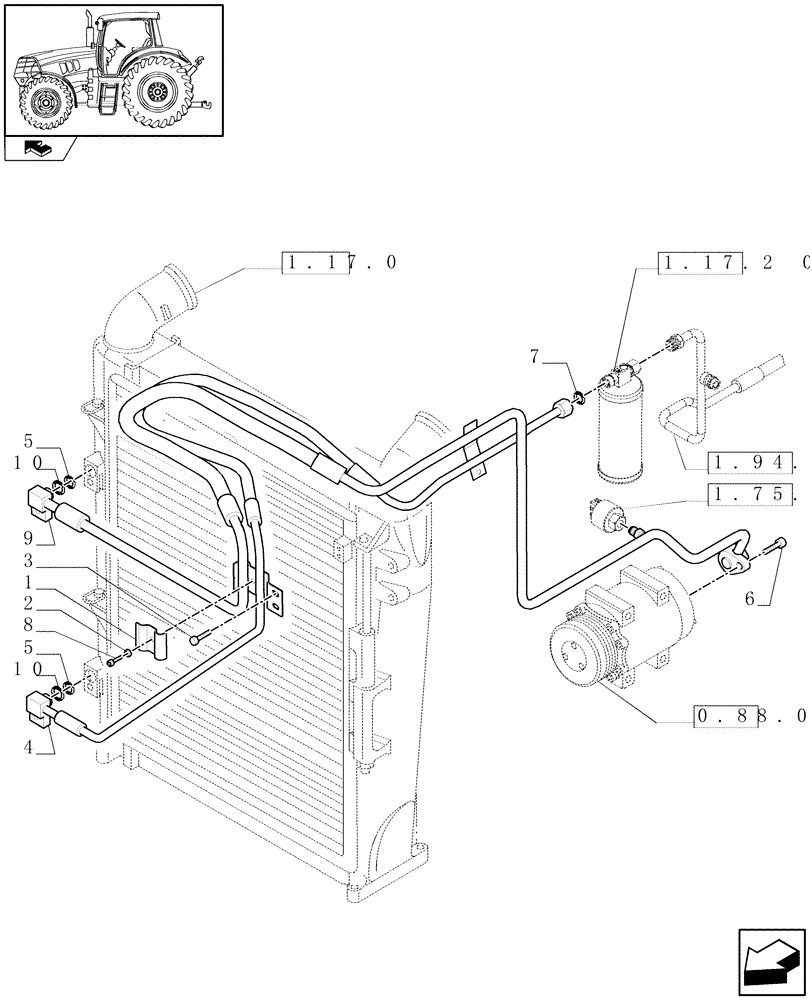

Запчасти Case IH MAXXUM 110 (1.94.3[01]) - AIR CONDITIONING SYSTEM PIPES - C6663 (10) - OPERATORS PLATFORM/CAB

1

87653304

BRACKET

1шт.

2

10615279

LOCK WASHER,M4, Serr

1шт.

3

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

4

87641058

A/C HOSE

Incl. 6-7-2

1шт.

5

10319183

O-RING,13.1mm ID x 1.6mm Width

2шт.

6

14306321

HEX SOC SCREW,M8 x 20mm, Cl 8.8

1шт.

7

82000793

O-RING,1.78mm Thk x 7.65mm ID, -11, 70 Duro

1шт.

8

14303021

SCREW,M4 x 12mm, Cl 8.8, Full Thd

1шт.

9

87699665

PIPE

Incl. 6-7

1шт.

10

14450683

O-RING,10.8mm ID x 2.4mm Width

2шт.
