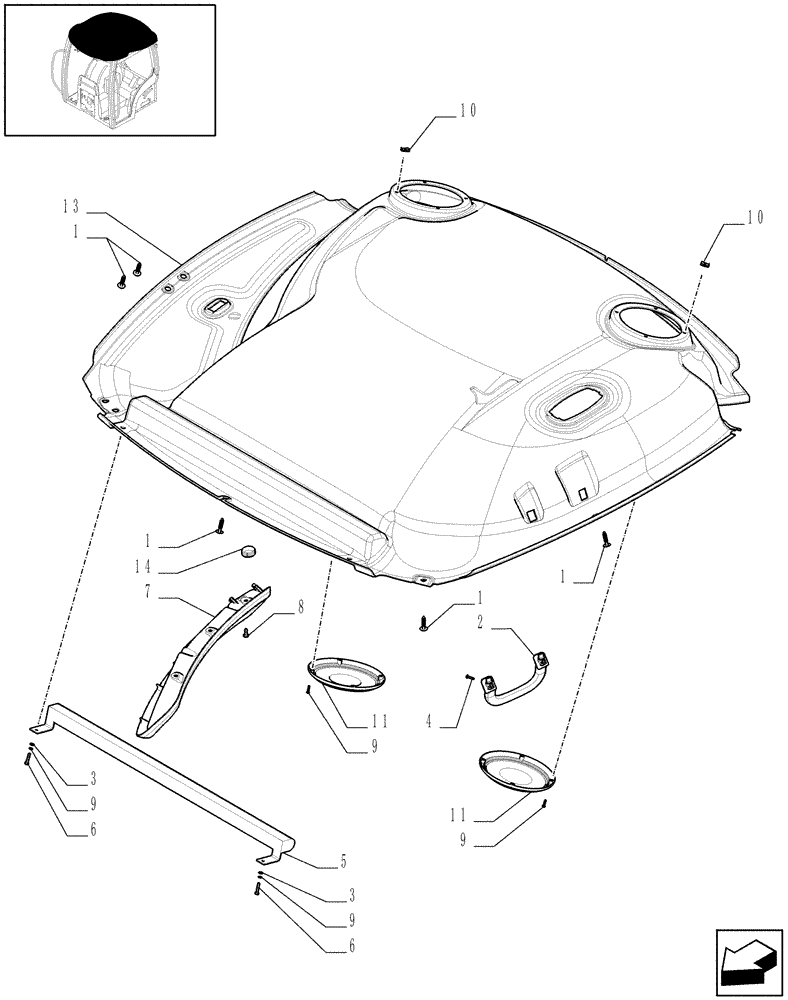

Запчасти Case IH MAXXUM 110 (1.94.0/05) - NAR ROOF WITH HIGH PROFILE LESS HIGH VISIBILITY PANEL - HEADLINER (VAR.331827) (10) - OPERATORS PLATFORM/CAB

1

82033699

PLASTIC PLUG,6.8mm D x 35mm L, Grey

5шт.

2

84227380

HANDLE

1шт.

3

14496301

WASHER,5.3mm ID x 10mm OD x 1mm Thk

2шт.

4

83976489

SCREW,Pan, M5 x 20mm, Cl 4.8

2шт.

5

82028310

SUN CURTAIN

1шт.

6

10978221

BOLT,Hex, M5 x 25mm, Cl 8.8, Full Thd

2шт.

7

87673408

CONSOLE

1шт.

7

87673403

CONSOLE

1шт.

Telescopic, Heated and with Remote Adjustment Rear - Viev Mirrors, Less High Visibility Panel; VAR.331827

1шт.

8

81853129

SCREW,Pozidriv Pan Hd, M6 x 16mm, Cl 4.8, Full Thd

M6 x 16

3шт.

9

12605271

WASHER

1шт.

10

81872135

NUT,Retaining, M4.20

8шт.

11

82022875

GRILLE,185mm OD

Speaker

2шт.

12

15642707

SCREW,Pozidriv Pan Hd, M3.5 x 16mm

8шт.

13

87621050

ROOF LINING

1шт.

14

87725990

PLUG

1шт.
