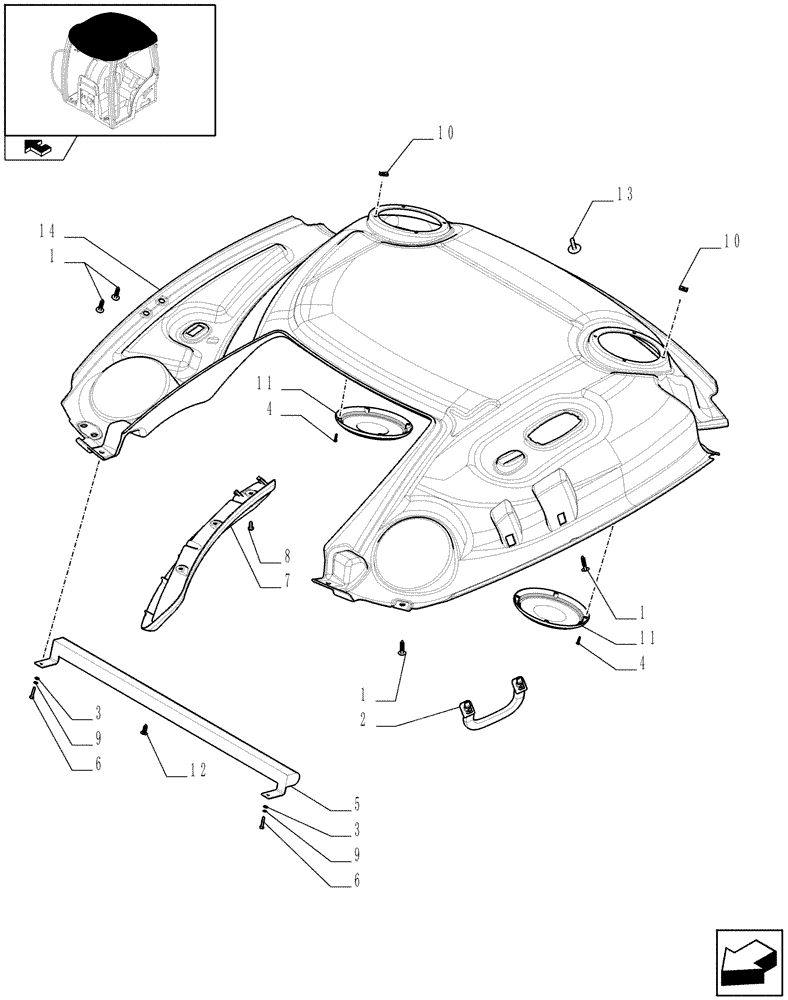

Запчасти Case IH MAXXUM 110 (1.94.0[03]) - EEAA ROOF WITH HIGH PROFILE WITH HIGH VISIBILITY PANEL - HEADLINER (10) - OPERATORS PLATFORM/CAB

1

82033699

PLASTIC PLUG,6.8mm D x 35mm L, Grey

4шт.

2

84227380

HANDLE

1шт.

3

14496301

WASHER,5.3mm ID x 10mm OD x 1mm Thk

2шт.

4

15642707

SCREW,Pozidriv Pan Hd, M3.5 x 16mm

8шт.

5

82028310

SUN CURTAIN

1шт.

6

10978221

BOLT,Hex, M5 x 25mm, Cl 8.8, Full Thd

2шт.

7

87673408

CONSOLE

1шт.

7

87673403

CONSOLE

1шт.

Two Telescopic, Heated and with Remote Adjustment Rear-Viev Mirrors, with Hight Visibility Panel, VAR.330827

1шт.

8

81853129

SCREW,Pozidriv Pan Hd, M6 x 16mm, Cl 4.8, Full Thd

M6 x 16

3шт.

9

12605271

WASHER

1шт.

10

81872135

NUT,Retaining, M4.20

8шт.

11

82022875

GRILLE,185mm OD

Speaker

2шт.

12

81870039

FASTENER,M8 x 1.5 x 22mm

7.85 x 19.50

1шт.

13

82023482

ANCHOR,Button Hd, 8.25mm x 35.00mm

1шт.

14

87521214

ROOF LINING

D.I. 5

2шт.
