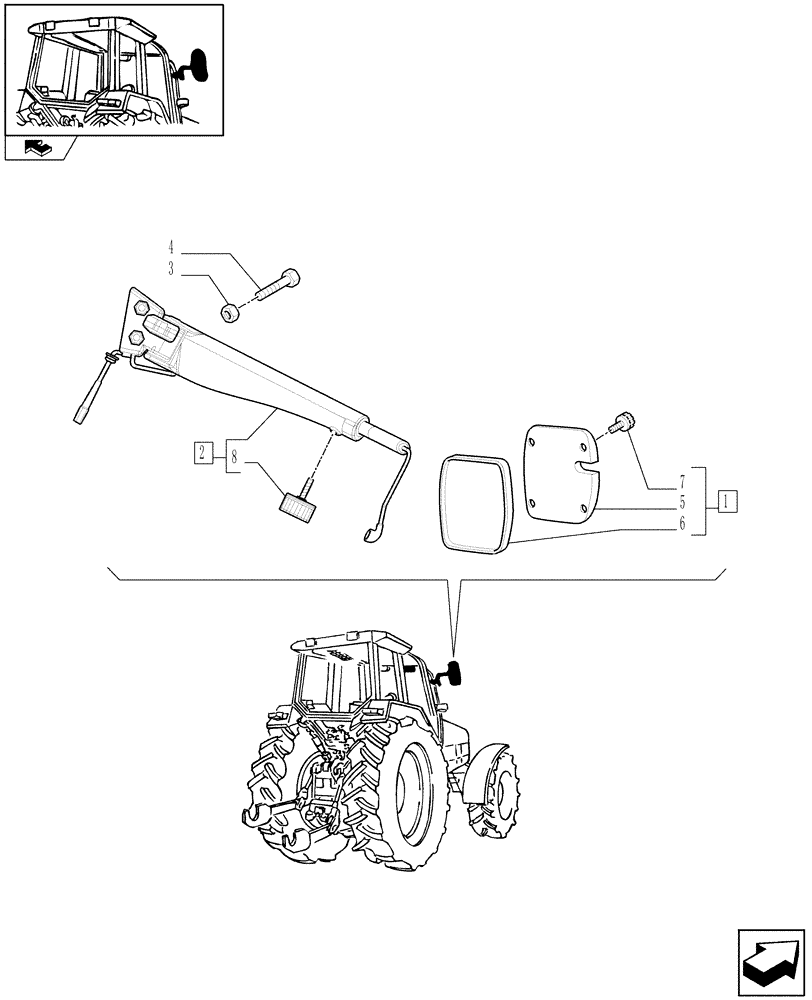

Запчасти Case IH MAXXUM 110 (1.93.6/01) - TELESCOPIC, HEATED AND WITH REMOTE ADJUSTMENT REAR-VIEW MIRRORS (VAR.330827-331827) (10) - OPERATORS PLATFORM/CAB

1

87316908

RH MIRROR,238mm x 328mm

RH

1шт.

1

87316907

LH MIRROR

LH

1шт.

2

87346605

ARM

LH

1шт.

2

87497692

ARM

RH, Serial Range: -C7119

1шт.

2

84398576

ARM

RH, Start Serial: D7119

1шт.

3

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

4шт.

4

81869630

HEX SOC SCREW,M10 x 35mm, Cl 8.8

4шт.

5

87578865

COVER

LH

1шт.

5

87531075

COVER

RH

1шт.

6

87706600

MIRROR

2шт.

7

87017604

SELF-TAP SCREW,Phillips Drive, Pan HD, M3.5 x 1.3 x 13mm

4шт.

8

87365131

KNOB

2шт.
