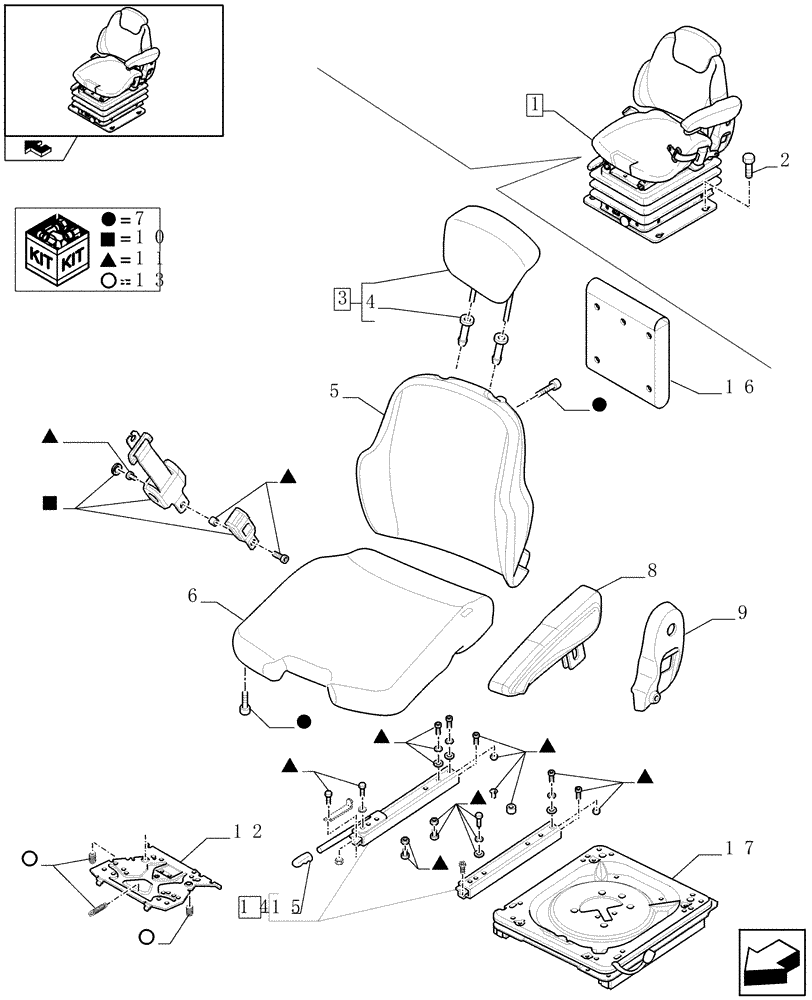

Запчасти Case IH MAXXUM 110 (1.93.3/01A[01]) - DELUXE SEAT WITH LOW FREQUENCY AIR SUSPENSION, HEATED CUSHIONS, BELT AND SWITCH - BREAKDOWN (10) - OPERATORS PLATFORM/CAB
![Схема запчастей Case IH MAXXUM 110 - (1.93.3/01A[01]) - DELUXE SEAT WITH LOW FREQUENCY AIR SUSPENSION, HEATED CUSHIONS, BELT AND SWITCH - BREAKDOWN (10) - OPERATORS PLATFORM/CAB](https://partsell.ru/storage/images/caseih/300853.png)
14
10
7
16
11
home
11
13
13
5
9
11
11
7
11
10
2
6
3
10
13
8
11
11
11
7
11
4
12
13
11
7
1
17
15
№
Артикул
Название
Примечание
Количество
1
84171102
SEAT
ASSY
1шт.
2
84187826
FLANGE BOLT,Torx Rnd Hd, M8 x 20mm, Cl 8.8, Full Thd
4шт.
3
84191100
SEAT HEADREST
1шт.
4
84191112
GUIDE
1шт.
5
84191204
BACKREST
Incl. 7
1шт.
6
84191205
SEAT CUSHION
Incl. 7
1шт.
7
84191200
SET OF PARTS
1шт.
8
82034988
ARMREST
1шт.
9
87331931
COVER
1шт.
10
84191197
SEAT BELT
1шт.
11
84191194
MOUNTING PARTS
Mounting Parts for P/N 10, 14, 17
1шт.
12
84191141
PLATE
Incl. 13
1шт.
13
84191201
SET OF PARTS
1шт.
14
84191191
REPAIR KIT
1шт.
15
9971715
HANDLE
1шт.
16
47124555
BRIEF CASE
1шт.
17
84191192
SEAT SUPPORT
1шт.
Выбрано товаров: 17
