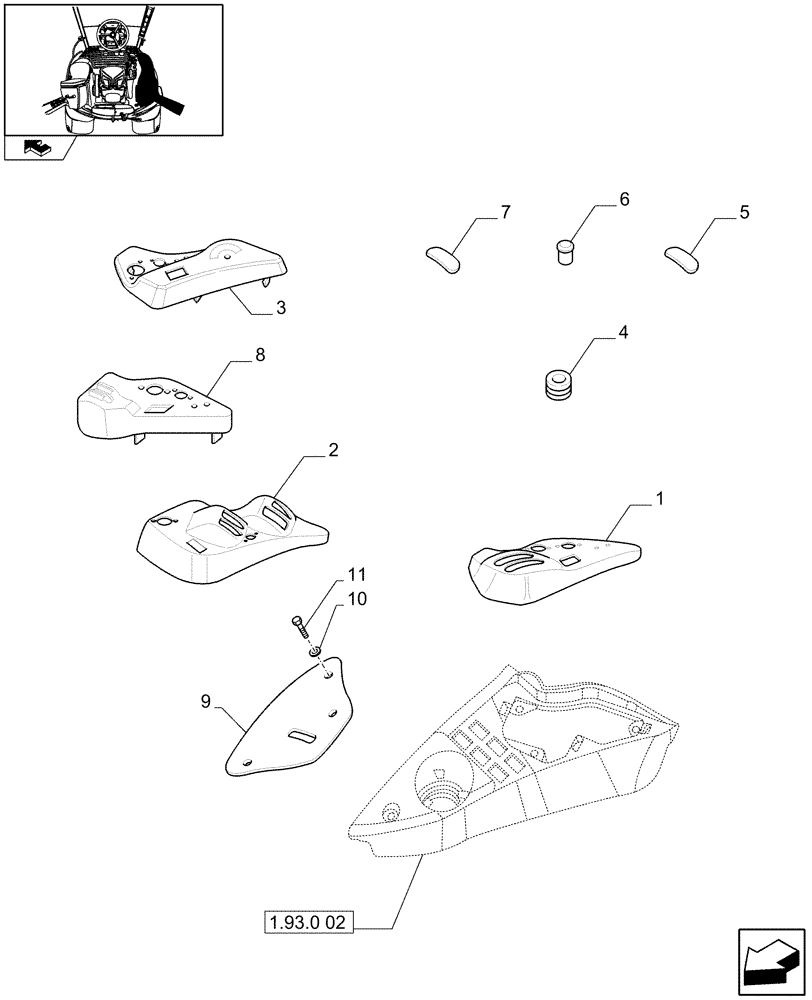

Запчасти Case IH MAXXUM 110 (1.93.0[03]) - CONTROLS COVER - RH (10) - OPERATORS PLATFORM/CAB

1

84204527

COVER

, Serial Range: -C6801

1шт.

2

87472619

COVER

, Serial Range: -C6801

1шт.

Power Take-Off 540/750/1000 RPM with Ground Speed, VAR.332801

1шт.

2

84316372

TRIM PANEL,Concole

, Start Serial: D6801

1шт.

Power Take-Off 540/750/1000 RPM with Ground Speed, VAR.332801

1шт.

3

84178068

COVER

, Serial Range: -C6608

1шт.

Power Take-Off 540/100 RPM with Reversable Shaft, VAR.330800

1шт.

Basildon Production Models only

1шт.

3

84249026

COVER

, Start Serial: D6608

1шт.

Power Take-Off 540/100 RPM with Reversable Shaft, VAR.330800

1шт.

Basildon Production Models only

1шт.

4

83908579

PLUG,M7.62

1шт.

5

47056777

BLANK-OFF PLUG,31mm x 87mm, Black

2шт.

6

81862738

PLUG,M38 x 28 x 5mm

28MM

2шт.

7

87302919

BLANK-OFF PLUG

1шт.

Power Take-Off 540/100 RPM with Reversable Shaft, VAR.330800, Basildon Production only

1шт.

Basildon Production Models only

1шт.

8

84315935

COVER

, Start Serial: D6801

1шт.

9

84182971

COVER

1шт.

Power Tack-Off 540/750/1000 RPM Shiftable, Var.330801

1шт.

Power Take-Off 540/750/1000 RPM with Ground Speed, VAR.332801

1шт.

Power Take-Off 540/100 RPM with Reversable Shaft, VAR.330800

1шт.

10

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

3шт.

Power Tack-Off 540/750/1000 RPM Shiftable, Var.330801

1шт.

Power Take-Off 540/100 RPM with Reversable Shaft, VAR.330800

1шт.

Power Take-Off 540/750/1000 RPM with Ground Speed, VAR.332801

1шт.

11

15647001

SELF-TAP SCREW,Pozidriv Pan Hd, M12 x 19mm

3шт.

Power Tack-Off 540/750/1000 RPM Shiftable, Var.330801

1шт.

Power Take-Off 540/750/1000 RPM with Ground Speed, VAR.332801

1шт.

Power Take-Off 540/100 RPM with Reversable Shaft, VAR.330800

1шт.
