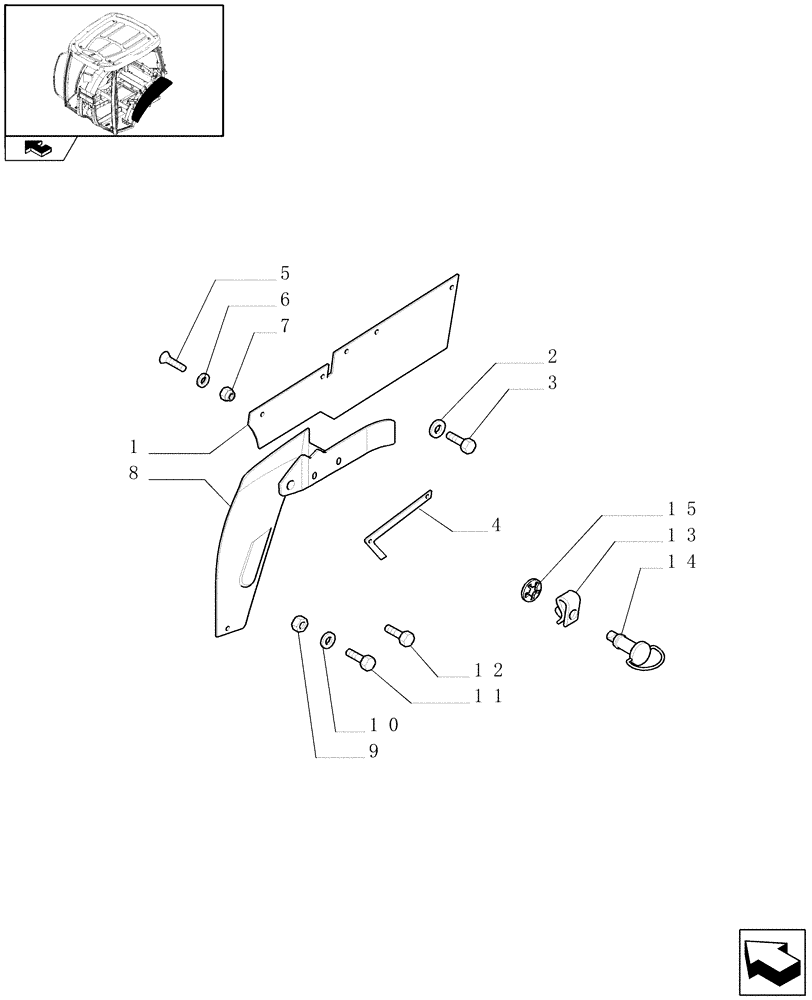

Запчасти Case IH MAXXUM 110 (1.92.5/03[02]) - WIDE REAR FENDERS WITH EXTENSIONS - SUPPORTS (VAR.330519-331519) (10) - OPERATORS PLATFORM/CAB

1

87384168

RUBBER PAD

2шт.

2

83903813

SPACER,9.80-10.29mm ID x 28.4mm OD x 2.8mm Thk

6шт.

3

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

6шт.

4

87357878

SUPPORT

2шт.

5

84187823

SCREW,Torx, Pan HD, M6 x 25mm, Cl 4.8

M6 x 25

4шт.

6

84188433

WASHER,6.15mm ID x 18mm OD x 2mm Thk

10шт.

7

12574211

NUT,M6 x 1, Cl 8

4шт.

8

87354370

MUDFLAP

LH

1шт.

Full Cover Rear Fenders with Extensions for Suspended Cab. VAR.331519

1шт.

8

87354371

MUDFLAP

RH

1шт.

Full Cover Rear Fenders with Extensions for Suspended Cab. VAR.331519

1шт.

8

87354368

MUDFLAP

LH

1шт.

Full Cover Rear Fenders with Extensions for Static Cab. VAR.330519

1шт.

8

87354369

MUDFLAP

RH

1шт.

Full Cover Rear Fenders with Extensions for Static Cab. VAR.330519

1шт.

9

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

1шт.

9

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

4шт.

10

12646701

WASHER,8.15mm ID x 20mm OD x 2mm Thk

8шт.

11

83962783

SCREW,Pozidriv Pan Hd, M6 x 20mm, Cl 4.8, Full Thd

1шт.

12

16043621

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

13

82004582

CLIP,Square, 25mm

1шт.

14

87357874

LOCK PIN

1шт.

15

82004583

RETAINER,6.3mm ID x 12.5mm OD x 0.5mm Thk

1шт.
