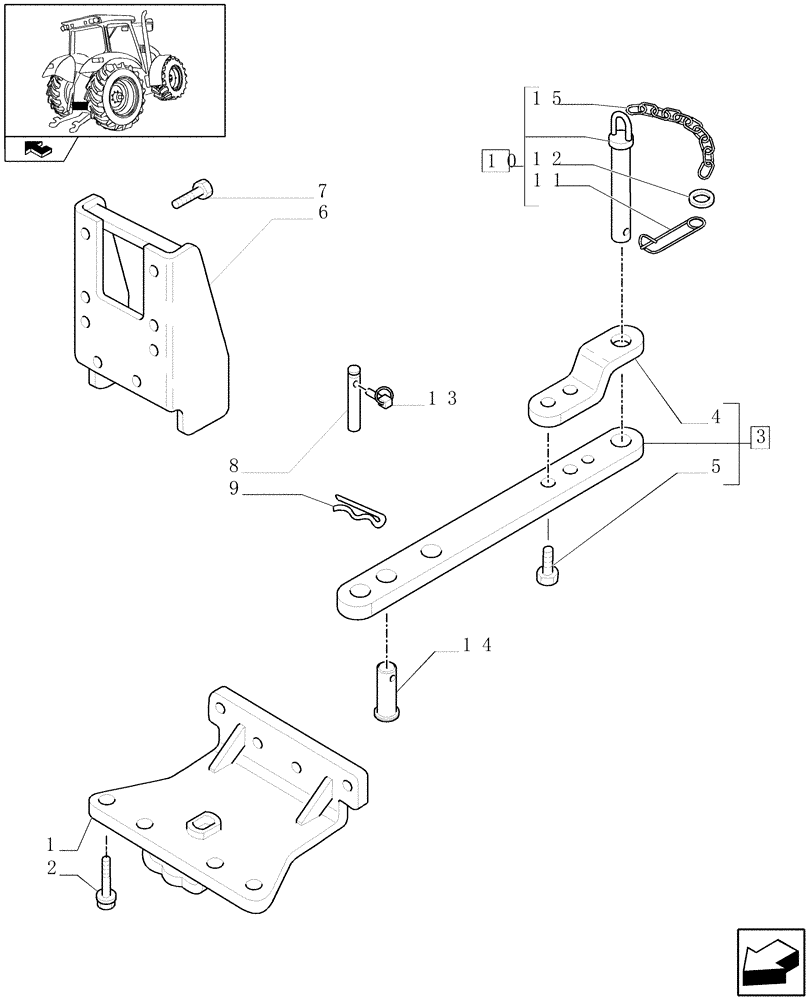

Запчасти Case IH MAXXUM 110 (1.89.0/03) - INDIPENDENT SWINGING DRAWBAR WITH CLEVIS (VAR.330937) (09) - IMPLEMENT LIFT

1

87633845

BRACKET

1шт.

2

87558076

BOLT,Flng, M16 x 1.5 x 130mm, Cl 12.9

4шт.

3

87558075

DRAWBAR

1шт.

4

82026931

SUPPORT,254mm L x 75mm W x 30mm Thk, 70mm Offset

1шт.

5

11125234

SCREW,Hex, M20 x 75mm, Cl 10.9

2шт.

6

87633843

SUPPORT

1шт.

7

16220874

BOLT,Hex, M18 x 1.5 x 45mm, Cl 12.9

8шт.

8

82015207

PIN,16mm OD x 141mm L

2шт.

9

82000094

SPRING,40mm OD x 142mm L

1шт.

10

87579063

HITCH PIN,32mm OD x 182mm L

1шт.

11

5152004

HAIR PIN COTTER,195mm L

1шт.

12

44901192

SNAP RING,25mm ID

1шт.

13

82014909

LOCK PIN,5.5mm OD

2шт.

14

87558070

PIN,32mm OD x 124mm L

1шт.

15

596063

LINK CHAIN,13 Links x 18mm = 234mm L

1шт.
