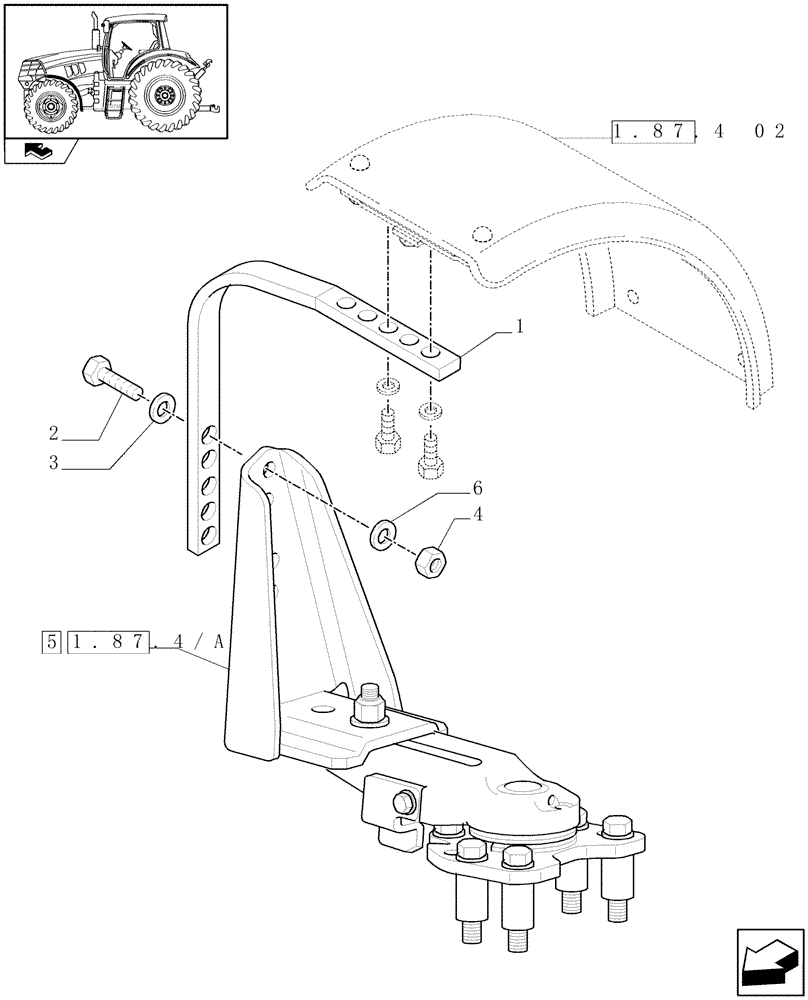

Запчасти Case IH MAXXUM 110 (1.87.4[01]) - DYNAMIC FRONT FENDERS - SUPPORT (VAR.333884-334884-335884) (08) - SHEET METAL

1

82027913

SUPPORT

2шт.

2

15541121

SCREW,Hex, M12 x 1.25 x 65mm, Cl 8.8

4шт.

3

14496721

WASHER,13mm ID x 24mm OD x 2.5mm Thk

9шт.

4

12164911

NUT,M12 x 1.75, Cl 8

4шт.

5

87748075

HUB

RH, ASSY

1шт.

5

87748076

HUB

LH, ASSY

1шт.

6

11198574

BELLEVILLE WASHER,Belleville, M10.5

4шт.
