Запчасти Case IH MAXXUM 110 (1.82.7/01[01B]) - 4 ELECTROHYDRAULIC REAR REMOTE CONTROL VALVES (EHS1) - DISTRIBUTOR, COVER AND OIL COLLECTOR - D6788 (VAR.330862-338851) (07) - HYDRAULIC SYSTEM

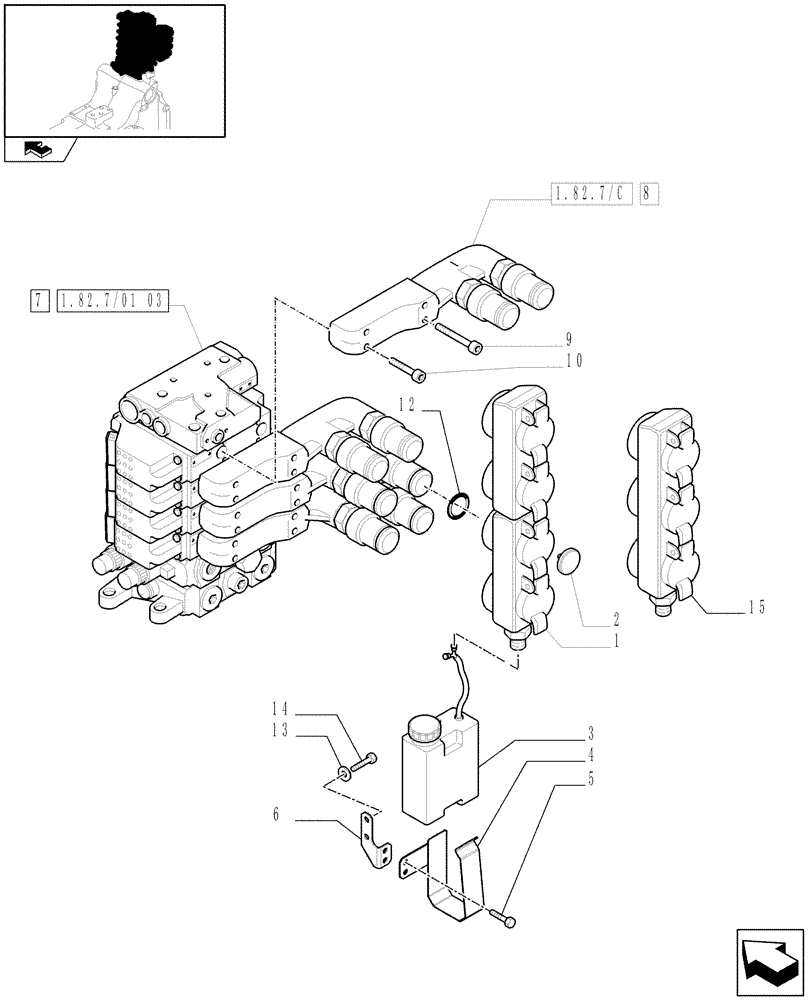

Схема запчастей Case IH MAXXUM 110 - (1.82.7/01[01B]) - 4 ELECTROHYDRAULIC REAR REMOTE CONTROL VALVES (EHS1) - DISTRIBUTOR, COVER AND OIL COLLECTOR - D6788 (VAR.330862-338851) (07) - HYDRAULIC SYSTEM
6
15
2
13
8
10
7
1.82.7/01 03
home
1.82.7/c
4
9
14
3
5
12
1

Артикул

Название

Примечание

Количество

1

84293792

DUST CAP

Incl. 2, 12, Serial Range: -C7117

2шт.

4 Electrohydraulic Rear Remote Control Valves, VAR.330862

1шт.

1

84293792

DUST CAP

Incl. 2, 12, Start Serial: D7117

2шт.

4 Electrohydraulic Rear Remote Control Valves, VAR.330862

1шт.

2

82029895

DISC,20mm D, Black

Black

1шт.

Q.ty 8 for VAR.330862; q.ty 6 for VAR.338851

1шт.

3

84284864

RESERVOIR, HYDRAULIC

, Serial Range: -C7117

2шт.

3

84287277

RESERVOIR, HYDRAULIC

, Start Serial: D7117

1шт.

4

84312030

SUPPORT

1шт.

5

10902121

SCREW,Hex, M6 x 14mm, Cl 8.8

2шт.

6

84311423

SUPPORT

1шт.

7

84266085

CONTROL VALVE

1шт.

8

87381965

QUICK MALE COUPLING

1шт.

9

14305671

SCREW,M6 x 35mm, Cl 12.9

2шт.

10

14306071

SCREW,M6 x 50mm, Cl 12.9

2шт.

11

81862738

PLUG,M38 x 28 x 5mm

28MM

6шт.

12

14454580

O-RING,34.65mm ID x 1.78mm

1шт.

Q.ty 4 for VAR.330862; q.ty 3 for VAR.338851

1шт.

13

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

14

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

15

84290177

DUST CAP

2шт.

4 Electrohydraulic Rear Remote Valves with 4th slice used to Control Front linkage, VAR.338851

1шт.

Выбрано товаров: 22
