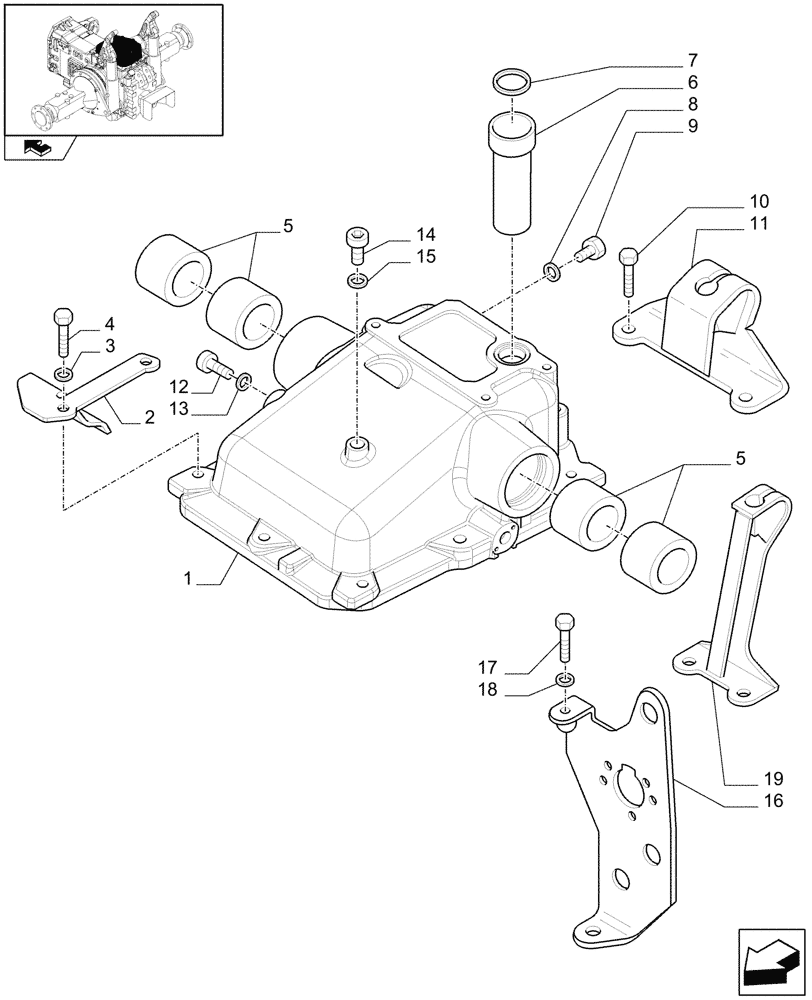

Запчасти Case IH MAXXUM 110 (1.82.0) - LIFTER COVER AND BRACKETS (07) - HYDRAULIC SYSTEM

1

5197898

COVER

Incl. 5, 6, 8, 9

1шт.

2

47127966

BRACKET

1шт.

Ground Speed PTO, VAR.332802

1шт.

3

11190879

BELLEVILLE WASHER,M12 Bolt Size x 30mm OD

1шт.

4

15981031

BOLT,Hex, M16 x 1.5 x 55mm, Cl 10.9

4шт.

4

15540724

SCREW,Hex, M12 x 1.25 x 45mm, Cl 8.8

6шт.

4

15540824

SCREW,Hex, M12 x 1.25 x 50mm, Cl 8.8

1шт.

Q.ty=1 for Std Equipment; Q.ty=3 for Ground speed PTO (VAR.332802).

1шт.

5

5180491

BUSHING,65.1mm ID x 70.03mm OD x 45mm L

4шт.

6

5191699

TUBE

Drain, Remotes

1шт.

7

70925934

O-RING,0.139" Thk x 1.359" ID, -220, Cl 8, 90 Duro

1шт.

8

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

9

83957506

PLUG,3/4"

1шт.

10

15541624

SCREW,Hex, M12 x 1.25 x 100mm, Cl 8.8

2шт.

11

82038166

BRACKET

, Serial Range: -C7395

1шт.

12

10275011

PLUG,M22 x 1.5 x 13

1шт.

13

5165897

SEALING WASHER,22.7mm ID x 30mm OD x 2mm Thk

1шт.

14

4893206

PLUG,M18 x 1.5

M18 x 1.5

1шт.

15

10259960

SEAL,Rectangular, 18.30mm ID x 24.00mm OD x 1.50mm, Copper

1шт.

16

47133990

BRACKET

1шт.

17

14307524

HEX SOC SCREW,M10 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

17

14307824

SCREW,M10 x 1.25 x 45mm, Cl 8.8

1шт.

18

11198374

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.6mm Thk

1шт.

19

84414292

BRACKET

, Start Serial: D7395

1шт.
